CCS/TMDSDSK6713: Last CCS version to use

Roberto Zanaboni1

Prodigy 220 points

Part Number: TMDSDSK6713

Tool/software: Code Composer Studio

Dear Forum

Time ago I was using the DSK6713 ,with a older version of CCS .

I have also the Blackhawk USB560M ,14 PIN Jtag Emulator

Is my intention to develop new project on the TMS320 C6713 (as my DSK) and ,after a while, move to TMS320 C6748

Excuse me in advance for many question in one message.

Question are:

1) Reading part of forum, i see that last CCS available with this DSK is the CCSV5 . I followed this link

https://processors.wiki.ti.com/index.php/C6713DSK_in_CCSv5

*The CCSV5 is again the last i can use ?

*Rumming the 6713SDKDiag.exe i get fail,also coping all in the same folder as previous link suggest

2)In case I wish to use the Emulator USB560M, why I cant use the last CCS ? I means, JTAG access to the 6713

like if the DSK would be a custom board..or not ? If yes, the only problem could be to access the CPLD for drive the LED

and read the switch ?

Thanks many in advance

Roberto

over 5 years ago

0 JohnS over 5 years ago

TI__Guru**** 162885 points

Roberto,

You can use C6713 devices with the latest CCSv9.3.0. The issue is that the XDS510 class debug on the DSK board is not supported. If you are using an external Blackhawk debug probe that would be fine.

Regards,

John

0 Roberto Zanaboni1 over 5 years ago in reply to JohnS

Prodigy 220 points

Thanks Mr John for your reply.

So is the -internal debug- not supported,

Do you belive the DSK init the CPLD before use this CPLD, or I can just access to the CPLD via 6713

emif, ,as written in datasheet of DSK?

Thank

Roberto

0 JohnS over 5 years ago in reply to Roberto Zanaboni1

TI__Guru**** 162885 points

Roberto,

I will need to loop in the DSP team to answer those questions.

Regards,

John

0 Roberto Zanaboni1 over 5 years ago in reply to JohnS

Prodigy 220 points

Hi Mr John

I moved to next step.

As you know, Im tryng to Use the blackhawk 560USB Emulator on DSK6713.

The debug is connect via JTAG

Compiler version is 7.4.24.

For test the emulator connection i just do:

Project-->Property->general and press buttom --Verify--,

the test is OK.I get the result:

--- The JTAG DR Integrity scan-test has succeeded---

Now i try to debug a simple Hello Word exmple.

Here i get problem..

I go in --Debug Config--, --New Config--,

In --Targhet Config-- i puth the project path-,

but I cant choose the emulator for debug,and I cant choose the specific CPU

for debug.

Where is my error?

Thanks

Roberto

0 Sahin Okur over 5 years ago in reply to Roberto Zanaboni1

TI__Mastermind 27355 points

Hi Roberto,

I believe you can write directly to the CPLD registers.

Documentation on the CPLD and DSK can be found here: http://c6000.spectrumdigital.com/dsk6713/revc/

The CPLD is an Altera EPM3128TC100-10: https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/ds/m3000a.pdf

Example code for the CPLD can be found here: http://c6000.spectrumdigital.com/dsk6713/revc/files/dsk6713revc_files.zip

Hope this helps.

Regards,
Sahin

0 Sahin Okur over 5 years ago in reply to Roberto Zanaboni1

TI__Mastermind 27355 points

Roberto,

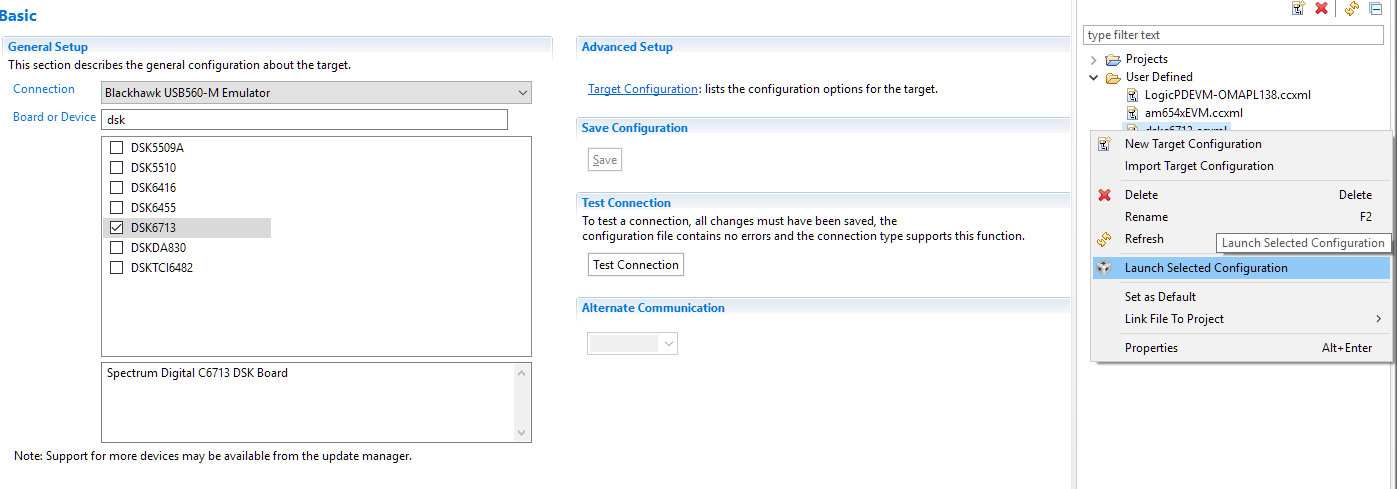

Are you launching the target configuration as shown below?

0 Roberto Zanaboni1 over 5 years ago in reply to Sahin Okur

Prodigy 220 points

Thanks very much for your reply

Now work.

CCS V9 + USB560-M

Thanks

Roberto
