CCS/DRA750: cpu load graph is empty

/* ========================================================================== */
/* CFG script for the UART sample */
/* ========================================================================== */

/* root of the configuration object model */
var Program = xdc.useModule('xdc.cfg.Program');
var cfgArgs = Program.build.cfgArgs;
var RB = (cfgArgs.profile == "release" ? true : false);

/* Move BIOS to release build. This is to reduce link time */
xdc.loadPackage ("ti.sysbios").profile="release";

/* use modules */
var Task = xdc.useModule('ti.sysbios.knl.Task');
var Idle = xdc.useModule('ti.sysbios.knl.Idle');
var BIOS = xdc.useModule('ti.sysbios.BIOS');
var Startup = xdc.useModule('xdc.runtime.Startup');
var SysStd = xdc.useModule('ti.sysbios.smp.SysStd');
var Assert = xdc.useModule('xdc.runtime.Assert');
var Main = xdc.useModule('xdc.runtime.Main');
var Memory = xdc.useModule('xdc.runtime.Memory');
var Diags = xdc.useModule('xdc.runtime.Diags');
var Semaphore = xdc.useModule('ti.sysbios.knl.Semaphore');
var HeapMem = xdc.useModule('ti.sysbios.heaps.HeapMem');
var HeapBuf = xdc.useModule('ti.sysbios.heaps.HeapBuf');
var GIO = xdc.useModule('ti.sysbios.io.GIO');
var Clock = xdc.useModule('ti.sysbios.knl.Clock');
var Timestamp = xdc.useModule('xdc.runtime.Timestamp');
var Core = xdc.useModule('ti.sysbios.family.arm.ducati.Core');
var HalCore = xdc.useModule('ti.sysbios.hal.Core');
var Hwi = xdc.useModule('ti.sysbios.hal.Hwi');
var SyncSem = xdc.useModule('ti.sysbios.syncs.SyncSem');
var Cache = xdc.useModule('ti.sysbios.hal.unicache.Cache');
var HalCache = xdc.useModule('ti.sysbios.hal.Cache');
var GateDualCore = xdc.useModule('ti.sysbios.family.arm.ducati.GateSmp');
var Mailbox = xdc.useModule('ti.sysbios.knl.Mailbox');
var EDMA3LLDDRV = xdc.loadPackage('ti.sdo.edma3.drv');
var Edma = xdc.loadPackage("ti.sdo.edma3.drv.sample");
var Load = xdc.useModule('ti.sysbios.utils.Load');
var Timer = xdc.useModule('ti.sysbios.hal.Timer');
var DmTimer = xdc.useModule('ti.sysbios.timers.dmtimer.Timer');
var Defaults = xdc.useModule('xdc.runtime.Defaults');

Semaphore.supportsEvents = true;

var HEAP_SIZE = @IPU1_HEAP@;

/* Match this to the SYS_CLK frequency sourcing the dmTimers. */
DmTimer.checkFrequency = false; // The check doesn't work properly on SMP, so it must be disabled
DmTimer.intFreq.hi = 0;
DmTimer.intFreq.lo = 19200000;

var COUNT_CPU_LOAD = java.lang.System.getenv("COUNT_CPU_LOAD");
if (COUNT_CPU_LOAD == 1)
{
xdc.print("# !!! Current build includes COUNTING CPU LOAD !!!" );
Idle.addFunc('&idle_func1');
}

if(!RB)
Defaults.common$.namedInstance = true;

/* Calculate load for the time spent on hwi processing */
Load.hwiEnabled = true;

/* Enable cache */
Cache.enableCache = true;

/* no rts heap */
Program.heap = 0;
Program.argSize = 100; /* minimum size */
Program.stack = 0x4000;

/* use proper Gate to protect Heap instances */
var gateParams = new GateDualCore.Params;
var gateInstance = GateDualCore.create(gateParams);
HeapMem.common$.gate = gateInstance;

/* create a default heap */
var heapMemParams = new HeapMem.Params();
heapMemParams.size = HEAP_SIZE;
Memory.defaultHeapInstance = HeapMem.create(heapMemParams);
Memory.defaultHeapSize = HEAP_SIZE;

/* configure System module */
var SysMin = xdc.useModule('ti.sysbios.smp.SysMin');
SysMin.bufSize = 0x1000;
SysMin.flushAtExit = false;

/* Get generated linker command filtered through linkcmd.xdt so custom sections can be added */
Program.linkTemplate = java.lang.System.getenv("OS_PATH") + "/ipu1/linkcmd_ipu1.xdt";

/* Disable SMP BIOS */
BIOS.smpEnabled = true;

/* Bios lib instrumentation */
BIOS.libType = BIOS.LibType_Custom;

/* Fix for right clock of M4 */
BIOS.cpuFreq.hi = 0;
BIOS.cpuFreq.lo = 212500000; /* Actual CPU Clock Rate */
BIOS..logsEnabled = true
/* Remove asserts if the program is built with release profile */
if(RB)
BIOS.assertsEnabled = false;

/* Declaring reference to assert as abort wrapper function*/
var System = xdc.useModule('xdc.runtime.System');
System.SupportProxy = SysMin;
System.abortFxn = "&assertAsAbortMacroWrapper";

Core.ipuId = 1;
Core.id = 0;
/* CBE Original: this doesn't do anything but set CurrentCore which we don't use, getting rid of the NULLs */
if(0)
{
if (CurrentCore == "m4video")
{
Core.id = 1;
GateDualCore.initGates = true;
}
}

/* Clock tick in microseconds */
Clock.tickPeriod = 1000;

/* Stack size when NULL is passed as stack during TSK create */
Task.defaultStackSize = 0x4000;
Task.defaultAffinity = 0;

/* section mapping over-ride with respect to default */

Program.sectMap[".plt"] = "IPU1_PROG";

/* Remove asserts if the program is built with release profile */
Defaults.common$.diags_INTERNAL = (RB ? Diags.ALWAYS_OFF : Diags.ALWAYS_ON);
Defaults.common$.diags_ASSERT = (RB ? Diags.ALWAYS_OFF : Diags.ALWAYS_ON);

/* To suppress the file name in BIOS compilation*/
var SourceDir = xdc.useModule('xdc.cfg.SourceDir');
SourceDir.verbose = 1;

/* Set the proxy for System module. This enables print statements at runtime in
* the application */
System.SupportProxy = SysStd;

/* MMU configurations */
xdc.loadCapsule("bspCommon_AMMU_Spartan_M4.cfg");

var GIO = xdc.useModule('ti.sysbios.io.GIO');
var Task = xdc.useModule('ti.sysbios.knl.Task');
var IntXbar = xdc.useModule('ti.sysbios.family.shared.vayu.IntXbar');

/* UIA logging module */
/* If UIA is used then all other logger instances have to be disabled */
if (cfgArgs.profilingEnabled)
{
print("---------------------------------------------------------");
print("UIA Profiling enabled");
print("---------------------------------------------------------");

var LoggerStreamer2 = xdc.useModule('ti.uia.sysbios.LoggerStreamer2');
LoggerStreamer2.isTimestampEnabled = true;

var loadLogger = LoggerStreamer2.create();

loadLogger.instance.name = 'OsalLoadLogger';
loadLogger.bufSize = cfgArgs.profilingLogBufSize;
loadLogger.primeFxn = '&profilingLoggerPrime';
loadLogger.exchangeFxn = '&profilingLoggerExchange';
loadLogger.context = 0;

Program.global.loadLogger = loadLogger;
Program.global.LOAD_LOGGER_BUF_SIZE = cfgArgs.profilingLogBufSize;

var UIABenchmark = xdc.useModule('ti.uia.events.UIABenchmark');
var LoggingSetup = xdc.useModule('ti.uia.sysbios.LoggingSetup');

LoggingSetup.loadLogger = loadLogger;

LoggingSetup.benchmarkLogging = false;
LoggingSetup.countingAndGraphingLogging = true;
LoggingSetup.enableContextAwareFunctionProfiler = true;
LoggingSetup.enableTaskProfiler = true;
LoggingSetup.loadHwiLogging = false;
LoggingSetup.loadLoggerSize = cfgArgs.profilingLogBufSize;
LoggingSetup.loadLogging = true;
LoggingSetup.loadLoggingRuntimeControl = true;
LoggingSetup.loadSwiLogging = false;
LoggingSetup.loadTaskLogging = true;
LoggingSetup.loggerType = LoggingSetup.LoggerType_STOPMODE;
LoggingSetup.mainLoggerSize = cfgArgs.profilingLogBufSize;
LoggingSetup.mainLogging = true;
LoggingSetup.mainLoggingRuntimeControl = true;
LoggingSetup.maxEventSize = 128;
LoggingSetup.multicoreEventCorrelation = false;
LoggingSetup.profileLogging = true;
LoggingSetup.snapshotLogging = false;
LoggingSetup.sysbiosHwiLogging = false;
LoggingSetup.sysbiosHwiLoggingRuntimeControl = false;
LoggingSetup.sysbiosLoggerSize = cfgArgs.profilingLogBufSize;
LoggingSetup.sysbiosSemaphoreLogging = false;
LoggingSetup.sysbiosSemaphoreLoggingRuntimeControl = false;
LoggingSetup.sysbiosSwiLogging = false;
LoggingSetup.sysbiosSwiLoggingRuntimeControl = false;
LoggingSetup.sysbiosTaskLogging = true;
LoggingSetup.sysbiosTaskLoggingRuntimeControl = true;
}

Hi,

Can you take a look at this FAQ: https://e2e.ti.com/support/processors/f/791/t/850830. It might be helpful.

Also, you are not explicitly setting the sysbios logger (just LoggingSetup.loadLogger = loadLogger). Which logger do you want sysbios to use?

Additionally, I see "BIOS..logsEnabled = true" in the .cfg. This is not valid syntax. It should be "BIOS.logsEnabled = true;"

Todd

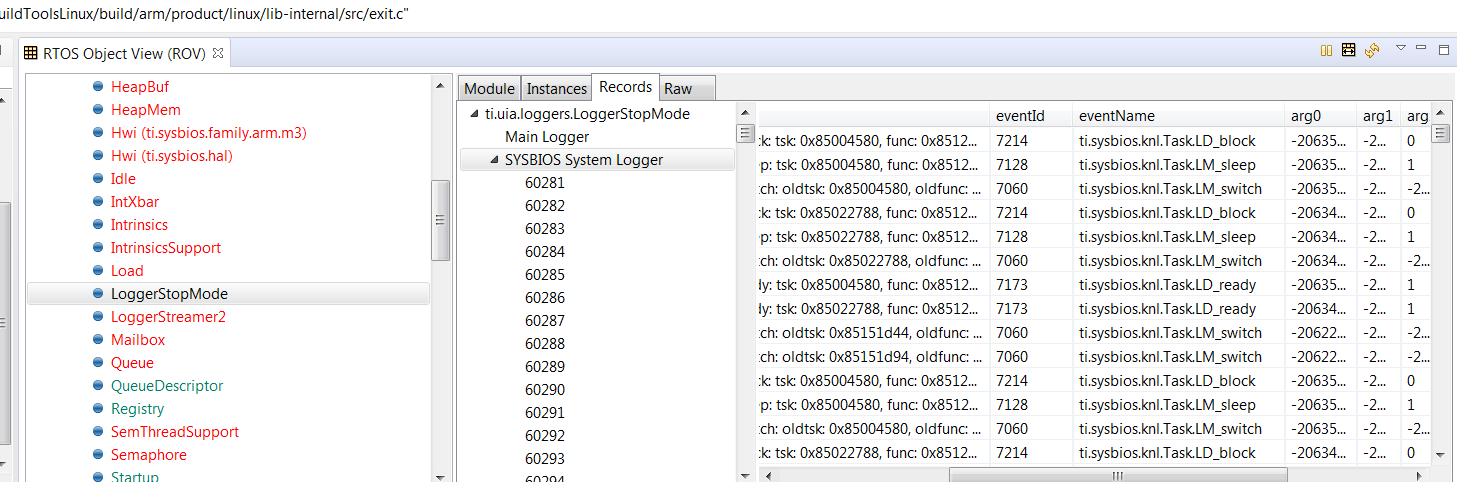

I can get the log records ,but cpu load still empty.

also , Execution Graph works fine now.

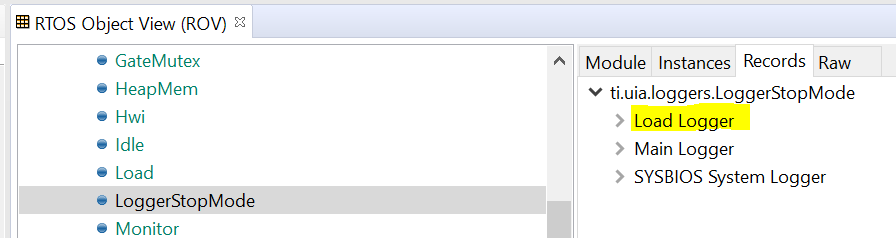

You've setup the load logger to LoggerStreamer2 instance. If you don't explicitly set it up, LoggingSetup will create a LoggerStopMode instance for you.

thanks for your help . it works now at LoggerStopMode ,

but could you show me how to update cpu load when target is running .
