TIDA-00653: The link for the Altium files in the design guide is incorrect. Where can I download files?

David Ross1

Part Number: TIDA-00653

It shows http://www.ti.com/tool... This loacation no longer works. Can you let me know where to download the files? Also, what would be a valid supplier number for T1. 750342460 Wurth Electronik does not appear to be valid. Thanks!!!!

over 6 years ago

0 Peter Meaney over 6 years ago

TI__Mastermind 31580 points

Hi David,

I have contacted the team who worked on the TIDA-00653 they should be able to fix the link to the Altium files.

You need to contact Wurth directly for the T1 magnetic, try Emil Nierges, Emil.Nierges@we-online.com

Regards

Peter

0 Sanatan Rajagopalan over 6 years ago

TI__Intellectual 1270 points

Hi David,

The design files can be downloaded from the product folder here : http://www.ti.com/tool/TIDA-00653

Please click on the "Download Design Files " Button.

Regards,

Sanatan

0 Sanatan Rajagopalan over 6 years ago

TI__Intellectual 1270 points

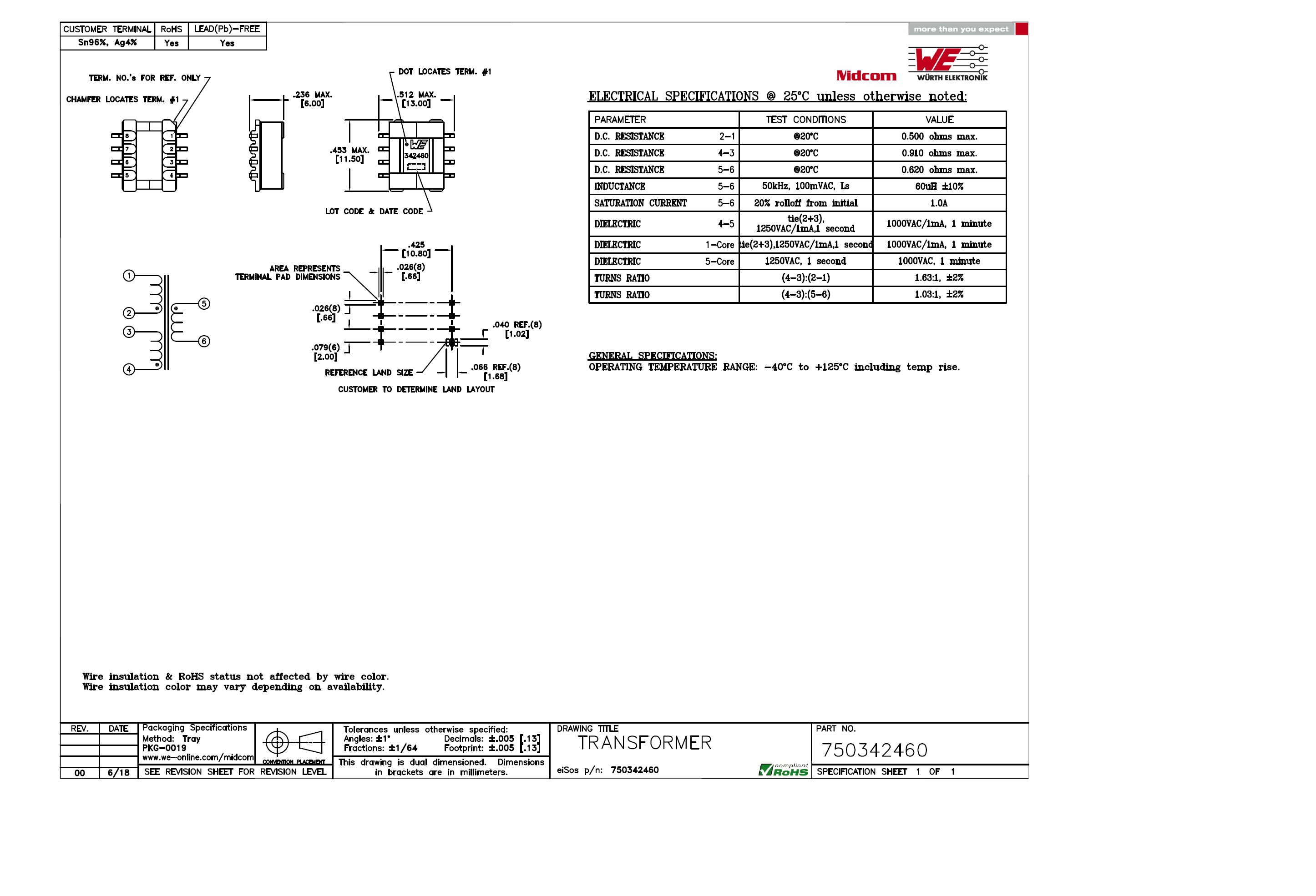

Please check again with wurth regarding the part number T1. I have attached the datasheet for your reference.

0 David Ross1 over 6 years ago in reply to Sanatan Rajagopalan

Prodigy 50 points

Hello,

I have still not received a replay as to the location of the Altium files. They are not located in the http://www.ti.com/tool/TIDA-00653 location.

Thanks!

0 David Ross1 over 6 years ago in reply to David Ross1

Prodigy 50 points

Can anyone please... Tell me where to find the Altium files??

0 LeonardEllis over 6 years ago in reply to David Ross1

TI__Guru 71516 points

Hello David,

If you click on the link Sanatan indicated ( Please click on the "Download Design Files " Button > http://www.ti.com/lit/zip/tidcc18 ), the design files are contained in the .zip file tidcc18.zip. Are you able to access and download this file?

~Leonard
