TINA/Spice/TIDA-01627: TIDA-01627 reference design Schematic and Block Diagram issue

Prodigy 70 points

Replies: 2

Views: 96

Part Number: TIDA-01627

Tool/software: TINA-TI or Spice Models

Hello , I`m Leon.

Nowadays, I am checking TIDA-01627 circuit design.

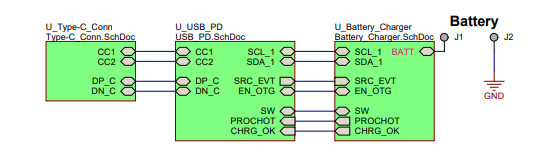

Q1: I found the ‘SW_SIG' seems like a signal but I can not found where is it link to.

Is it important to realize some function? or it can be ignored.

I would appreciate it if you could answer this question.

  • so sorry , post the wrong picture, the correct one is uploaded as below

  • In reply to Guangyan Liu:

    Hi Guangyan,

    The SW_SIG signal is not used in the design and can be ignored. It was added as a net name to potentially be used by something later. The TIDA-01627 design does not use that signal.

    If this answers your question, PLEASE select This resolved my issue

    Thank you,
    Eric
