TINA/Spice: EXP input source in TINA-TI

Aidan Walton

Other Parts Discussed in Thread: TINA-TI

Tool/software: TINA-TI or Spice Models

Hi,

I'm trying to generate an exponential rise using the standard SPICE input source type

EXP( {v1} {v2} {trise_delay} {tau_rise} {tfall_delay} {tau_fall) )

but TINA seems to complain every time about a floating point division by zero error. Regardless of how I define the statement.

Any help?

Aidan

over 5 years ago

0 Arpan Gupta over 5 years ago

TI__Expert 3140 points

Hi Aidan,

We will forward your request to respective team.

Thanks & Regards,
Arpan Gupta

0 Herman Theodorus over 5 years ago in reply to Arpan Gupta

TI__Genius 9775 points

Hi Aidan,

Could you upload your TINA test bench that includes this EXP function?

Thanks,
Herman

0 Aidan Walton over 5 years ago in reply to Herman Theodorus

Expert 1095 points

Sure......

EXP_INPUT_SOURCE.tsc

0 Arpan Gupta over 5 years ago

TI__Expert 3140 points

Hi Aidan,

Please install the latest version (v9.3.200.277 SF-TI) of TINA-TI simulator present in TI website (http://www.ti.com/tool/TINA-TI).

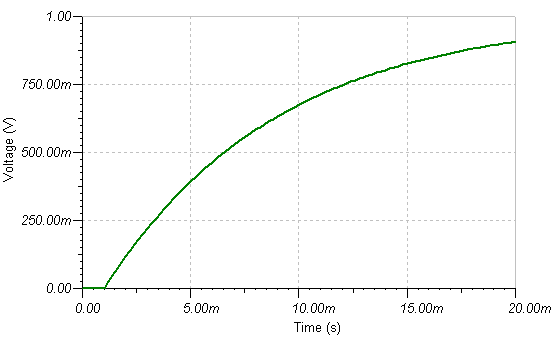

It simulates fine. Below is the simulation result.

Thanks & Regards,

Arpan Gupta

0 Aidan Walton over 5 years ago in reply to Arpan Gupta

Expert 1095 points

Hi Arpan,

I updated and still it does not work. It still produces the same floating point error.

Hmmm.

Aidan

0 Herman Theodorus over 5 years ago in reply to Aidan Walton

TI__Genius 9775 points

Hi Aidan,

I tried it and the result works the same as Arpan. Could you do us a favor by going to your TINA software and go to Help -> About and snapshot the picture of the GUI that pops up so that we can check the version?

Herman

0 Aidan Walton over 5 years ago in reply to Herman Theodorus

Expert 1095 points

0 Arpan Gupta over 5 years ago in reply to Aidan Walton

TI__Expert 3140 points

Hi Aidan,

There is an updated version of TINA-TI launched after 9.3.150.328 SF-TI. The latest version is 9.3.200.277 SF-TI. You can download the latest version of TINA-TI at http://www.ti.com/tool/TINA-TI.

Kindly click on Download after opening the above link. Then follow the instructions to complete the download process.

Once the latest version is downloaded in your system, please uninstall the previous version and install the latest one. Now, if you simulate your .TSC using the latest TINA-TI, it will surely run.

Thanks & Regards,

Arpan Gupta

0 Aidan Walton over 5 years ago in reply to Arpan Gupta

Expert 1095 points

Hi Arpan,

My apologies for asking you to jump through hoops. I have a few extra layers at my end and well, it caught me out. In fact I run TINA under WINE on Ubuntu. I had in fact updated the TINA version as you initially requested, but I didn't realise that after the updater ran, it had not actually updated the binaries. So I was forced to install a second instance of the latest TINA version. This did indeed install and helped but did not solve the problem. It no longer threw the floating point errors but instead it just hung!

So, I had a rather more painful fix, which did actually work. I was forced to run run WINE in full 64bit mode and this required a download of the very latest stable version of WINE, which I dutifully installed. Then re-installed TINA at the latest release and then ran TINA using the 64 bit version of WINE.

Hey Presto, success. It now plots as expected and no float errors.

Thanks for your patience.

Aidan
