TIDA-01064: Other Solid state relay solution suggestion?

Intellectual 890 points

Replies: 1

Views: 161

Part Number: TIDA-01064

Hi Team,

Would you please suggest solution or reference design on the following solid state relay specification?

1. AC/DC SSR

2. DC/DC SSR

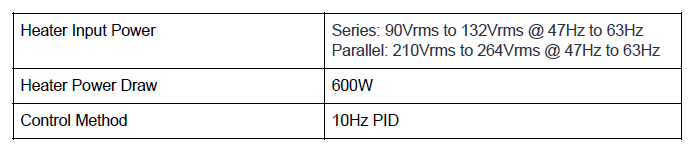

Spec:

Also, what are the difference between AC/DC, DC/DC, AC/AC, DC/AC SSR?

Best regards,

Andy Chu

1 Reply

  • Hi Andy,

    for better understanding of solid state relay take a look at :

    e2e.ti.com/.../a-modern-approach-to-solid-state-relay-design

    You can also look at TIDA-00377, TIDA- 00751 and TIDA-01065
    www.ti.com/.../tida-01065
    www.ti.com/.../tida-00377
    www.ti.com/.../tida-00751

    For more in-depth understanding I will take a look at
    "Solid-State Relay Handbook with applications" Anthony Bishop

    AC/DC type for example will tell you that output voltage that you are switching is AC voltage. on the other hand the input, control, signal will be DC voltage.

    For higher voltage that you are looking for (120 or 230 V ac), you will need to use or two high voltage MOFETs or TRIAC.

    I hope this helps
    If you have any additional questions, please let me know

    Miro
