Dear All,
My client has designed one Circuit using Switcher LMZ10503TZ-ADJ and given me for simulation.
First Step: I have referred webbench power tool , Try to edit the value(resistors and Capacitors) and replicated the design. But I am not getting the exact values components what client used. I saw there is one option downloading SPICE Design in TINA-TI.

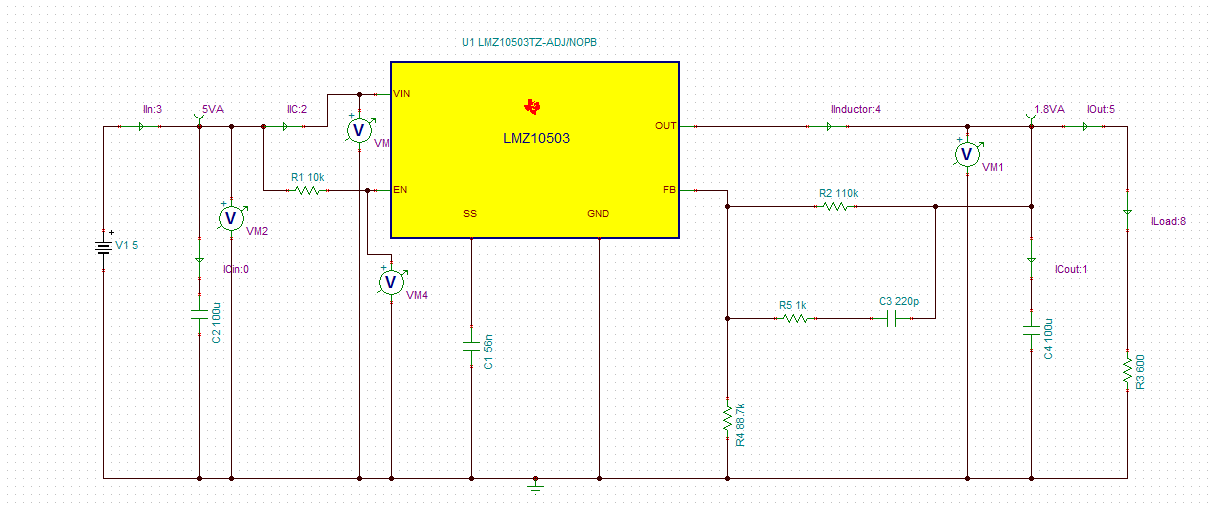

Secound Step: I have downloaded the SPICE Design in the TINA type and opened the design using TINA software. I found that Output of 8V is not generated by the SPICE output.
TINA Version used: Tina-TI 9.3
Requirement: Voltage: 5V from VME Backplane, Output Current 1A max
Please help me to find why SPICE model of LMZ10503TZ is not working or Please design the SPICE model and give it to me.
Attached SPICE Model.
Regards,
Sathish
