TINA/Spice/TPS3700: TPS3700 Unencrypted PSpice Transient Model Temperature Simulation

Christoph Klein86

Part Number: TPS3700
Other Parts Discussed in Thread: TINA-TI,

Tool/software: TINA-TI or Spice Models

Hello,

I'm doing a temperature simulation with the TPS3700 in LTspice (since I don't know how to do in TINA), and I'm seeing strange behaviour on INA/OUTA: results/output is always zero if temperature is below 25°C where INB/OUTB seems to be correct. Double checked my calculations that's not the issue.

I replaced TI part by LT part, and the it works so I assume there's something odd with the model. Maybe someone here can check this?

TPS3700.zip

over 5 years ago

0 Nikhil Gupta (Product Folder Models) over 5 years ago

TI__Mastermind 39210 points

Hi Christoph,

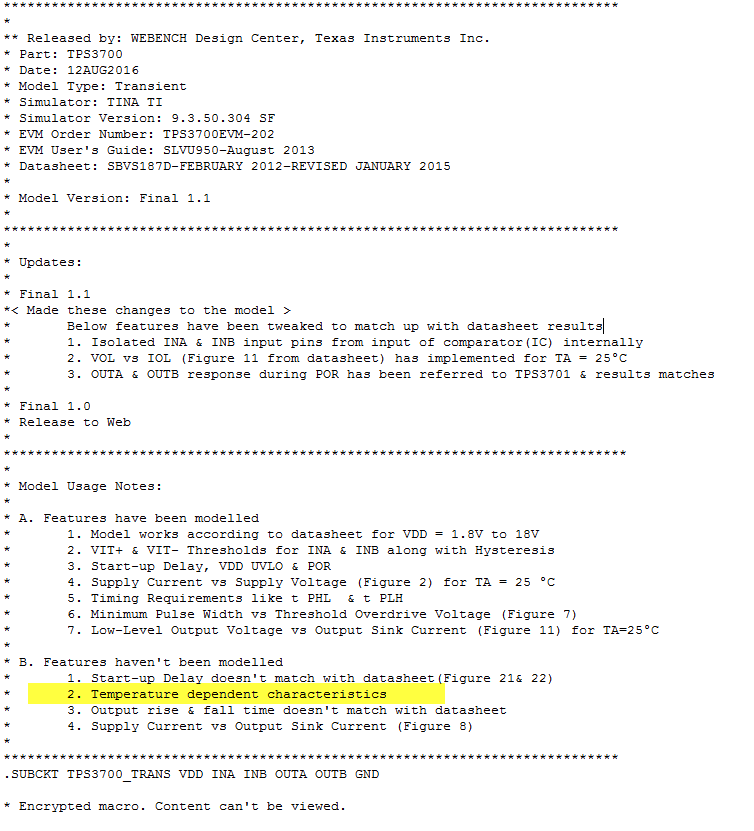

Unfortunately, we are unable to support our models in LTSpice. I would recommend trying the model in PSpice or TINA-TI (free simulator form TI). Also, note that all our models are nominal models and model only room temperature behavior. This is also captured in the model header.

0 Christoph Klein86 over 5 years ago

Prodigy 20 points

If the model only supports room temperature that's fine, but it should at least set the output correctly. OUTB seems ok, but OUTA is always low for T<25°C.

I used the unencrypted model from TI website (http://www.ti.com/lit/zip/sbvm552). I'll check if we still have a full PSpice license...
