CC2650STK: Getting Started with CC2650 SensorTag

Jan Som

Part Number: CC2650STK
Other Parts Discussed in Thread: CC3200, CC2640R2F, CC2640, CC2650,

Hi,

I have brought SensorTag with Devpack, and when through getting started guide. Then Installed Simplelink app to read data from senortag.

Until this everything worked fine.

I just tried to erase the sensortag using smart flash programmer 2, it also worked.

Now I have setup the environment for sensortag development in ccs.

I can't find a clear document to getting started in development, and can I just revert back to sensortag factory program?

Someone in internet told that, by press and hold two buttons in sensortag will revert back the factory program.

But it didn't work for me.

Now when ever I powered sensortag, red glows.

Can someone help me in my development, I am pretty stuck here.

I have development knowledge in cc3200 and msp430. But I am new to sensortag.

Can any one help me?

Thanks

over 8 years ago

0 Christin Lee over 8 years ago

TI__Guru 56345 points

To get started at sensortag in ccs, you will need to
1. import sensortag both stack and application project.
2. program both stack and application project into sensortag
3. you can modify your application to do what you want and then from that point, you can just program application.

Simplelink academy shows how to get started with project zero, which is a bit different than sensortag. But the way of importing projects are the same, please take a look at it.
software-dl.ti.com/.../ble_01_basic.html

0 Eirik V over 8 years ago

TI__Guru 56590 points

There is also useful info in our ble-wiki:
ti.com/ble-wiki -> processors.wiki.ti.com/.../CC2650_SensorTag_User's_Guide
and also check out the CC2640R2F/CC2640/CC2650 Getting Started and FAQ:
e2e.ti.com/.../404236

0 Jan Som over 8 years ago in reply to Christin Lee

Expert 1215 points

Hi Christin,

I have installed BLE stack 2, then from resource explorer I have impoerted sensortag_cc2650stk_app and sensortag_cc2650stk_stack into CCS.

As you said,

1.I have imported both app and stack project.

2.After building both app and stack projects, I burned sensortag_cc2650stk_stack.hex and sensortag_cc2650stk_app.hex in sensortag using smartRF flash programmer 2.

Still the red light glows.

Regarding Project zero, in that link they told that we have to switch CCS in classic view to import simple link academy project.

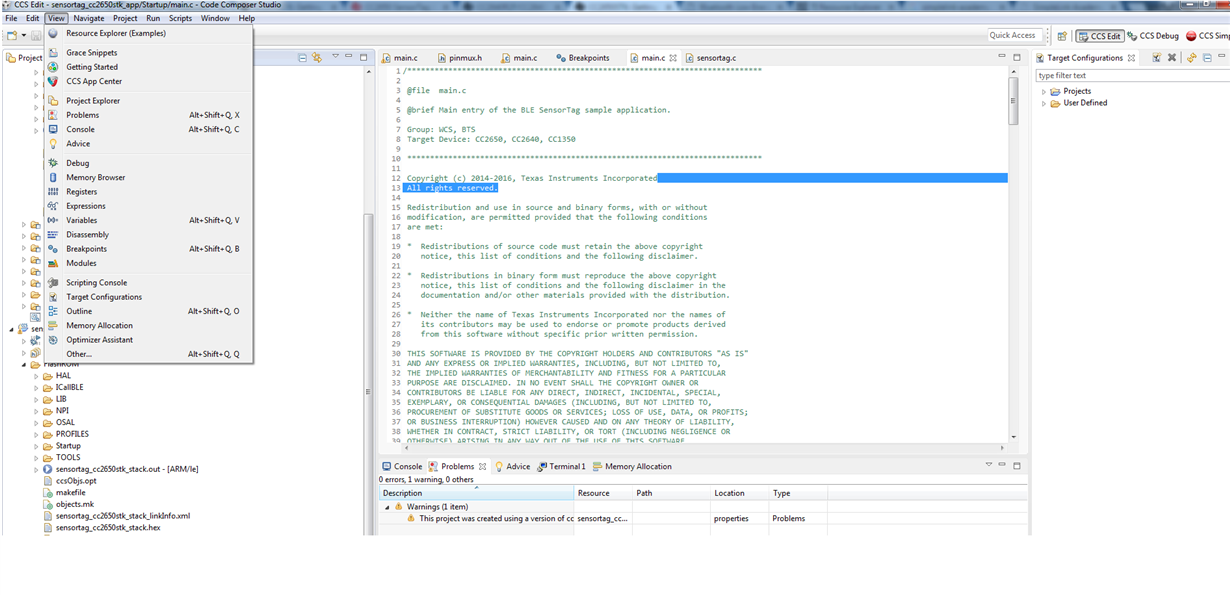

But I cant find any option to switch my CCS to classic view. They have shown a screenshot to switch view in CCS, I have attached screenshot

Can you tell me where I am stuck?

Thanks

JanSom

0 Jan Som over 8 years ago in reply to Eirik V

Expert 1215 points

Hi Eirik,

I will study those link and let you know If I am clear with this.

Thanks

JanSom

0 David Rubie over 8 years ago in reply to Jan Som

Expert 1690 points

Hi Jan - if you erased your SensorTag with the flash programmer, you have erased something called the BIM (Boot Image Manager).

You will need to import the BIM project into CCS and build / debug that. The BIM will then be installed (you only need to do this once). After BIM is running you can debug the stack project and the app project and the tag will start properly.

The red light on the sensor tag is a bit of a mystery though - you will see the LED on the XDS110 debugger change from green to red when it's programming / debugging.

0 Jan Som over 8 years ago

Expert 1215 points

Hi David,

How to import BIM (Boot Image Manager) to CCS?

From where should I import?

Is it from BLE SDK?

Thanks

0 YiKai Chen over 8 years ago in reply to Jan Som

Guru 735685 points

It's described in processors.wiki.ti.com/.../CC2650_SensorTag_User's_Guide . You can import BIM_extflash (for CCS) from $SDK_INSTALL_PATH$\Projects\ble\util\BIM_extflash

0 David Rubie over 8 years ago in reply to YiKai Chen

Expert 1690 points

I'm lazy and used the resource explorer to get the project:
In CCS go to View->Resource Explorer Classic

Navigate to ble_sdk_2_02_01_18 (or whichever one you are using)
ble_sdk_2_02_01_18->examples->util->bim_extflash->cc2640->bim_extflash

Click "Import the example project into CCS"

Debug the project, then stop debugging. It should start working (the BIM is installed in a different bit of memory to your other projects)

0 YiKai Chen over 8 years ago in reply to David Rubie

Guru 735685 points

This is actually more intuitive.

0 Jan Som over 8 years ago in reply to David Rubie

Expert 1215 points

Thanks David. It worked for me.

0 Jan Som over 8 years ago in reply to YiKai Chen

Expert 1215 points

Thanks for your response Chen.

0 YiKai Chen over 8 years ago in reply to Jan Som

Guru 735685 points

You are welcome.

0 Daryoush Sahebjavaher over 8 years ago in reply to YiKai Chen

Intellectual 410 points

Hi YK,

I am experiencing a similar problem. My SensorTag works as expected when loading provided HEX file using SmartRF flash programmer, however I cannot get it to work with BLE stack 2.2.1 via CCS. It seems to not run or advertise.

I have followed the procedure outline in section "2.6.3.3.3 Compiling and Downloading" of swru393 documentation:

1) Build All "Sensortag_cc2650stk_stack"

2) Build All "Sensortag_cc2650stk_app"

3) Debug/download "Sensortag_cc2650stk_stack"

4) Debug/download "Sensortag_cc2650stk_app"

The procedure above did not work. After reading this posting, I imported, built and downloaded the "BIM_extflash" project via CCS, but this is not working either. As a last attempt I also tried removing the FLASH_LAST_PAGE line as suggested by https://e2e.ti.com/support/wireless_connectivity/bluetooth_low_energy/f/538/p/425368/2067802#pi239031350=1

I also tried importing and running the "simple peripheral" example on my SensorTag using the same procedure as above and it is working fine. So the issue seems to have something to do with the setup of the BIM / OAD.

I would appreciate you swift response as I am facing strict deadlines.

Thanks,

Darius

0 David Rubie over 8 years ago in reply to Daryoush Sahebjavaher

Expert 1690 points

Which compiler version are you using? From memory the only one I could consistently get working with the sensortag app was 5.2.6, whereas the simpleperipheral app isn't anywhere near as fussy.

0 Daryoush Sahebjavaher over 8 years ago in reply to David Rubie

Intellectual 410 points

I'm using 5.2.6 so that is most likely not the problem. Thanks

0 David Rubie over 8 years ago in reply to Daryoush Sahebjavaher

Expert 1690 points

Can you step through the main() function in the sensortag app and see if it stops?

Otherwise I can only suggest you clean each project, rebuild and debug each one in turn and see if that fixes it.

0 Daryoush Sahebjavaher over 8 years ago in reply to David Rubie

Intellectual 410 points

I cleaned the projects, rebuilt and debugged each one with no luck. It does step through the main function as expected but it does not advertise/show up on app.

0 YiKai Chen over 8 years ago in reply to Daryoush Sahebjavaher

Guru 735685 points

Do you revise something but forget to recovery it? I suggest you to remove BLE Stack and reinstall it to build SensorTag example to test again.

0 Daryoush Sahebjavaher over 8 years ago in reply to YiKai Chen

Intellectual 410 points

Hi YK,

I deleted the BLE stack and workspace folders and re-installed the BLE 2.2.1 stack provided on http://www.ti.com/tool/ble-stack but it did not work.

I downloaded and imported the SenorTag example using CCS resource explorer and it worked right away.

Either I am doing something wrong or the stack advertised on http://www.ti.com/tool/ble-stack is out of date.

Thanks,

Darius

0 YiKai Chen over 8 years ago in reply to Daryoush Sahebjavaher

Guru 735685 points
