CCS/LAUNCHXL-CC2640R2: How to configure CC2640R2F Wireless 500K rate in prioprietary mode with SmartRF Studio 7 ?

jun jun

Part Number: LAUNCHXL-CC2640R2
Other Parts Discussed in Thread: CC2640R2F, CC1310, CC1350, CC2640

Tool/software: Code Composer Studio

HI :

SmartRF Studio 7 SmartRF Studio 7 doesn't include 500k rate .

Can you provide me with a 500k rate wireless configuration for the cc2640r2f in prioprietary mode ?

0 PM over 5 years ago

Hi,

You can try the following and test it.

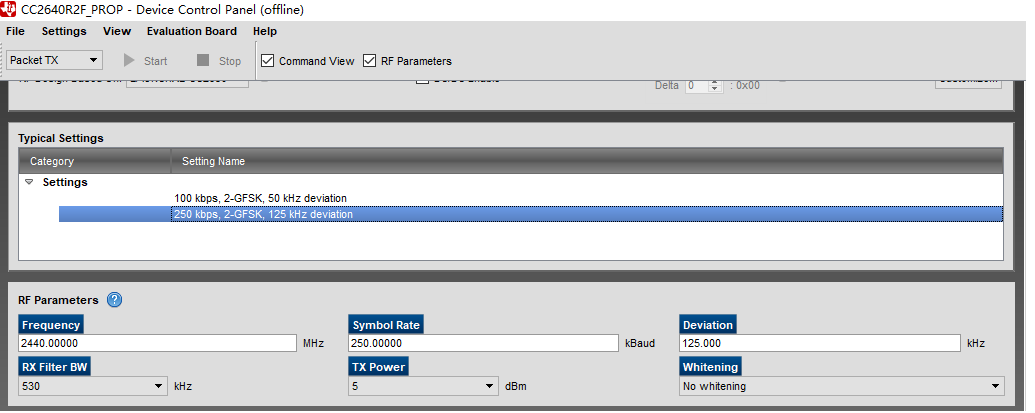

Start with 250kbps Typical setting then change the following.

Rx Filter BW : 1059 KHz,

Symbol rate: 500 KBPS

Deviation : 250 KHz

Thanks,

0 jun jun over 5 years ago in reply to PM

Thanks for your help !

B.R

0 jun jun over 5 years ago in reply to PM

if we use 431-527MHz band ,and symbol Rate is 100kBaud or 500kBaud ,

How to configure CC1310 Wireless 500K and 100k rate in prioprietary mode with SmartRF Studio 7 ?

0 PM over 5 years ago in reply to jun jun

Hi,

CC2640 supports 2.4GHz band only. If you want Dual band ( both 2.4GHz band and Sub 1-GHz band) then please look at it CC1352 or CC1350.

Please refer to section 1.4 in SWRA640 for single band and dual band devices. The following is the link.

Thanks,

0 jun jun over 5 years ago in reply to PM

we use cc1310 chip for another product ，and select 431-527MHz band ,and symbol Rate is 100kBaud or 500kBaud ,

How to configure CC1310 Wireless 500K and 100k rate in prioprietary mode with 431-527MHz band ？

B.R
