Packet Sniffer Format (PSD) for bluetooth

What is the required divisor for CC2540 when sniffing Bluetooth Low Energy packets using 2.16.3.0?  The closest number that I've found is 419.43!!!  But that number does not work with all 'timestamps'.

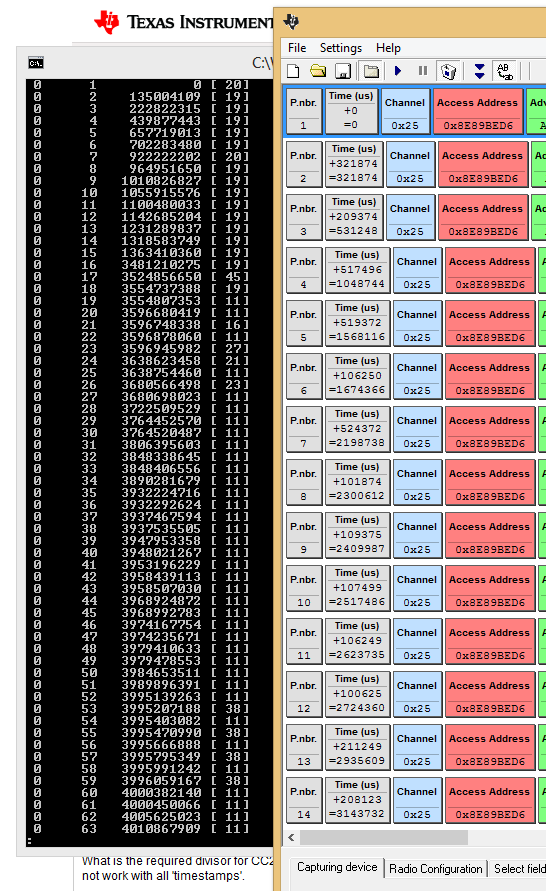

Here is a screenshot with the raw values (LSB first, I know) and with the TI Sniffer's interpretation:

This is the code that I'm using to parse the .psd file:

import sys
import struct

psd = struct.Struct("< B I Q B")

first_timestamp_us = 0

last_timestamp_us = 0

with open(sys.argv[1], "rb") as fp:

   while True:

      data = fp.read(271)

      if len(data) == 271:

         (packet_info, packet_number, timestamp, packet_length) = psd.unpack(data[0:14])
         packet = data[14:(14 + packet_length)]

         if 0 == first_timestamp_us:
            first_timestamp_us = timestamp
            timestamp = 0
         else:
            timestamp = timestamp - first_timestamp_us

         print("%2x %6u %12d [%3u]" % (packet_info, packet_number, timestamp, packet_length))
         last_timestamp_us = timestamp

      else:
         print("Short read: %d" % (len(data)))
         break

Hello,

Has any one noticed that Packet Sniffer PSD from CC2540 USB dongle is not strictly following packet definitions in the Packet Sniffer Instruction Manual? Or am I the only person who finds this confusing?

Here is one piece of valid data from PSD files:

0x0 0x4f 0x1 0x0 0x0 0x5e 0xc 0xe8 0xc5 0x4 0x0 0x0 0x0 0x2d 0xd6 0xbe 0x89 0x8e 0x0 0x22 0x32 0x15 0x0 0x61 0x2 0x0 0x2 0x1 0x6 0x7 0x3 0x3 0x18 0x2 0x18 0x4 0x18 0x3 0x19 0x0 0x2 0x2 0xa 0xfe 0x9 0x9 0x41 0x53 0x2d 0x44 0x31 0x35 0x33 0x32 0x64 0xcb 0x54 0x20 0xa6 0x54 0x6f (all zeros onwards...)

For readability, I dissected the data as follows:

0x0 :packet information
0x4f 0x1 0x0 0x0 :packet no
0x5e 0xc 0xe8 0xc5 0x4 0x0 0x0 0x0 :timestamp
0x2d :length = 45
0xd6 0xbe 0x89 0x8e 0x0 0x22 0x32 0x15 0x0 0x61 0x2 0x0 0x2 0x1 0x6 0x7 0x3 0x3 0x18 0x2 0x18 0x4 0x18 0x3 0x19 0x0 0x2 0x2 0xa 0xfe 0x9 0x9 0x41 0x53 0x2d 0x44 0x31 0x35 0x33 0x32 0x64 0xcb 0x54 0x20 0xa6 : As packet info bit zero is 0, these 45 bytes should be the payload
0x54 0x6f : This should be the two bytes of FCS.
(all zeros onwards...)

Here FCS indicates that CRC is not OK as the highest bit of FCS Byte 2 is zero.

But the packet sniffer shows that this packet is CRC OK.

Here is a piece of invalid data:

0x0 0x4e 0x1 0x0 0x0 0x18 0xd 0x47 0xc4 0x4 0x0 0x0 0x0 0x2d 0xd6 0xbe 0x89 0x8e 0x0 0x22 0x32 0x15 0x0 0x61 0x2 0x0 0x64 0x1 0x6 0x7 0x3 0x3 0x18 0x2 0x18 0x4 0x18 0x3 0x19 0x0 0x2 0x2 0xa 0xfe 0x9 0x9 0x41 0x53 0x2d 0x44 0x31 0x35 0x33 0x32 0x64 0xcb 0x54 0x21 0x26 0x54 0x6f (all zeros onwards...)

It turns out that, the packet sniffer is using the last two bytes inside the actual payload as FCS (as highlighted in the above invalid data) But bit zero of packet information indicates that the length doesn't include FCS right?

Thanks for any advice.

EDIT. I attached my PSD file4405.sniff.data.psd.

YJ

Hi YJ,

You assume that the packet record in the .psd file is zeroed-out for every packet. This is not true, so there might be some left-over bytes from another packet at the end of the stored packet. This means you have to use the total packet length byte and the length byte in the BLE packet header to properly parse the content:

Here's the correct parsed data

0x0 : Packet information
0x4f 0x1 0x0 0x0 : Packet number
0x5e 0xc 0xe8 0xc5 0x4 0x0 0x0 0x0 : Timestamp
0x2d : Packet sniffer payload length = 45 --> This is the number of payload bytes in the "packet sniffer packet"
0xd6 0xbe 0x89 0x8e : (4) BLE Access Address/Sync Word
0x0 0x22 : (2) BLE Header, indicating a BLE packet of 34 bytes
0x32 0x15 0x0 0x61 0x2 0x0 0x2 0x1
0x6 0x7 0x3 0x3 0x18 0x2 0x18 0x4
0x18 0x3 0x19 0x0 0x2 0x2 0xa 0xfe
0x9 0x9 0x41 0x53 0x2d 0x44 0x31 0x35
0x33 0x32 : (34) Payload
0x64 0xcb 0x54 : (3) Packet checksum
0x20 : RSSI (raw RSSI value)
0xa6 : CRC OK bit (MSB) OR-ed with the channel number (in this case CRC OK, channel 0x26 (38 decimal))
0x54 0x6f : Junk

But to your point: The description of the PSD packet format for the BLE sniffer is at best misleading. I will report the issue to the development team.

Thank you, M.

Indeed it is a bit misleading. The FCS field in PSD corresponds to the junk values according to the User Manual. Also there is no mention of channel numbers in the manual. I was able to parse the data correct following your interpretation.

YJ.

Thanks for the clarification and for walking through the PSD data fields in such detail. I am trying to filter out packets with FCS errors in data from a CC2540 USB dongle. Can you point me to the byte position in the packet payload where the FCS is reported.

From a recent data session:

This packet reports FCS = OK

01,4b,00,00,00,08,11,56,3b,00,00,00,0026,00,25,d6,be,89,8e,40,1a,a9,a6,cb,27,93,6f,02,01,1a,05,03,cd,ab,46,e6,0a,09,4c,69,67,68,74,42,6c,75,65,60,8b,3a,3e

While this packet reports FCS = ERROR

01,4c,00,00,00,e2,10,1e,3c,00,00,00,0026,00,25,d6,be,89,8e,40,1a,a9,a6,cb,27,93,6f,02,01,1a,05,03,cd,ab,46,e6,0a,09,4c,69,67,68,34,4c,6c,75,65,60,8b,3a,3d

Other than the packet number and time stamps (which are expected to be different), all bytes are the same EXCEPT for bytes #43 and #44. Are these the FCS bytes I am looking for?

Thanks in advance

Orlando

Hi Orlando,

Which version of the packet sniffer are you using? 2.17.0 or newer? It's important to know that the PSD file format changed slightly in rev 2.17.0. We've effectively added a 2-byte packet length field after the 8 bytes timestamp field in order to support very long packets for other devices. The rest of the data in the stored record is unchanged. So for your packet, you'll see:

01: Packet Info
4b,00,00,00: Packet number
08,11,56,3b,00,00,00,00: Timestamp
26,00: LENGTH - ADDED FROM REV 2.17.0 and onwards
25: "Payload" Length
d6,be,89,8e: Access address
40,1a: BLE header
a9,a6,cb,27,93,6f,02,01
1a,05,03,cd,ab,46,e6,0a
09,4c,69,67,68,74,42,6c
75,65: BLE payload
60,8b,3a: CRC
3e: Raw RSSI
--:  Your'e missing the byte with the CRC OK bit and the channel number

Sign Bit said:

Hi M!

I can confirm that the formula works.

Here is the updated script, just in case it might be useful to somebody:

import sys
import struct

psd = struct.Struct("< B I Q B")

first_timestamp_us = 0
last_timestamp_us = 0

with open(sys.argv[1], "rb") as fp:

   while True:

      data = fp.read(271)

      if len(data) == 271:

         (packet_info, packet_number, raw_timestamp, packet_length) = psd.unpack(data[0:14])
         packet = data[14:(14 + packet_length)]

         time_lo = raw_timestamp & 0xFFFF
         time_hi = raw_timestamp >> 16
         timestamp = (time_hi * 5000 + time_lo) >> 5

         if 0 == first_timestamp_us:
            first_timestamp_us = timestamp
            timestamp = 0
         else:
            timestamp = timestamp - first_timestamp_us

         print("%2x %6u %12dus (+%8.3fms) [%3u]" % (packet_info, packet_number, timestamp, (timestamp - last_timestamp_us) / 1000.0, packet_length))
         last_timestamp_us = timestamp

      else:
         if len(data):
            print("Short read: %d" % (len(data)))
         break

Sign Bit, I'm new to scripting. What scripting language is this and how can I build and run it?

Looks like Python.
