ADC Module of CC2538

Mehmet Cihangir
Intellectual 300 points
Other Parts Discussed in Thread: CC2538, CC2530

Hi all,

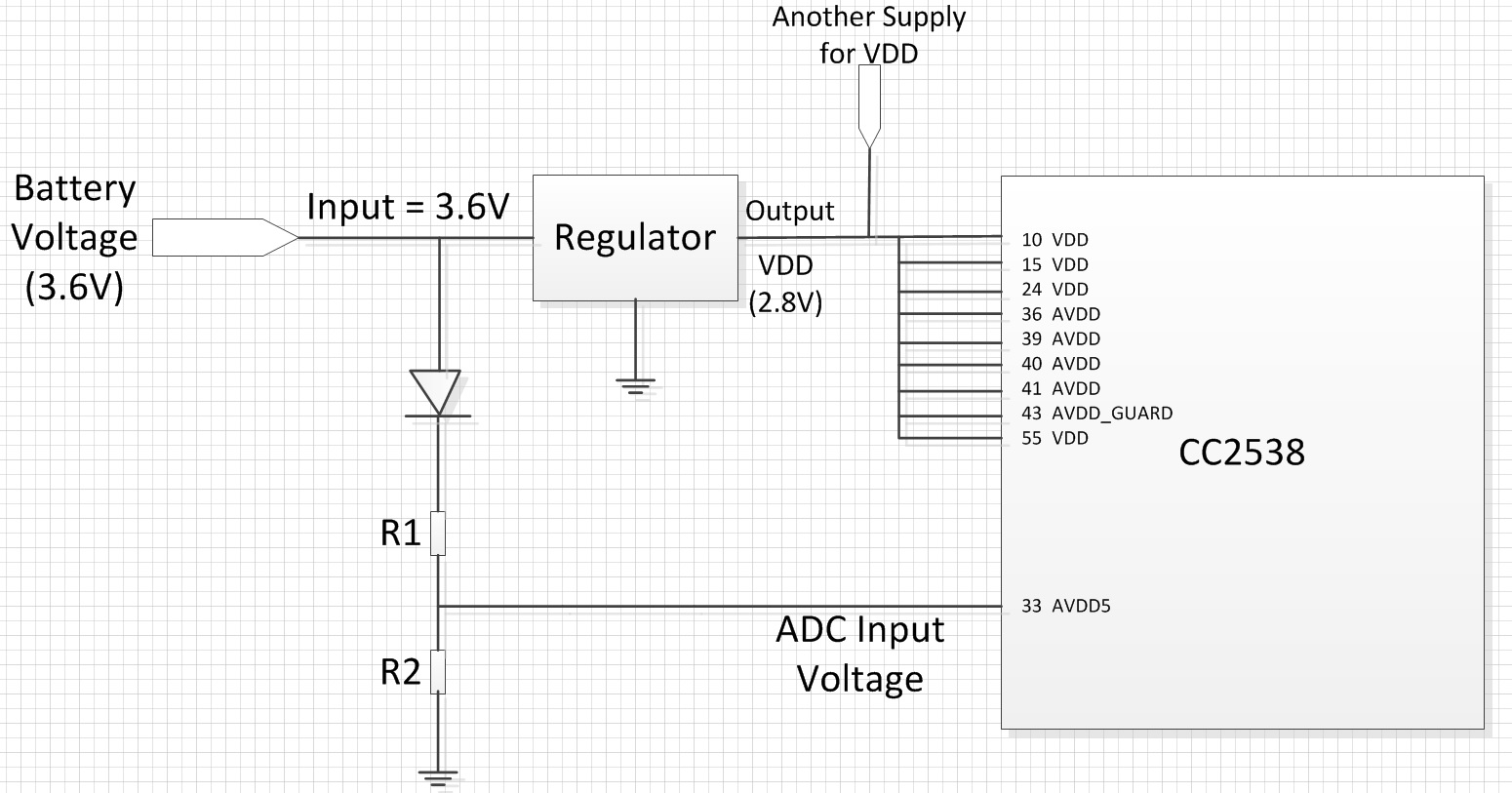

I have some questions about ADC module of CC2538. I want to measure the battery voltage which is the one of the power supplies of the circuit. I will use a voltage regulator for VDD of the CC2538. Please check the below picture "adc_app.jpg" .



My Questions are;

1) Can I connect different voltage levels to AVDD and AVDD5 as the above diagram? Are AVDD pins and AVDD5 pin separate from each other in CC2538?

2) I have looked through the datasheet and user guide documents of CC2538 but I could not find detail information about AVDD5. Which is the pin AVDD5? I have just found the information that "AVDD5 is 33th pin of the CC2538" in TI E2E Community forum.  Is it correct and Which document is this information inculuded?

Best Regards,

Mehmet Cihangir
