RTOS/CC1350: Data Variable Tracing CC1350

GOHM ELECTRONICS

Expert 2085 points

Part Number: CC1350
Other Parts Discussed in Thread: , CC2650STK,

Tool/software: TI-RTOS

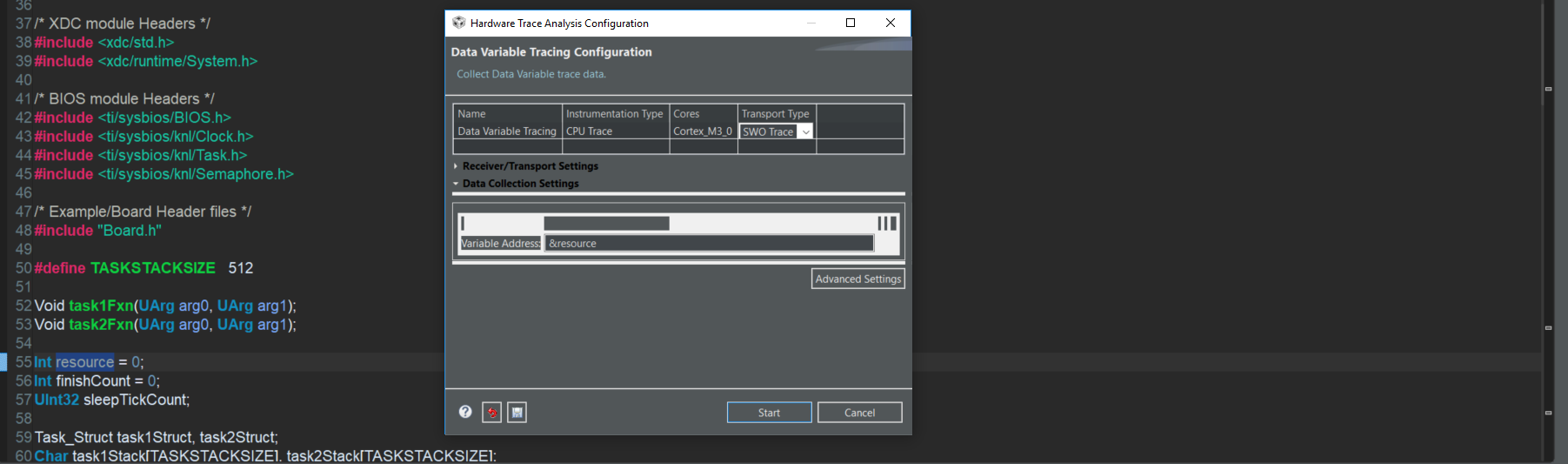

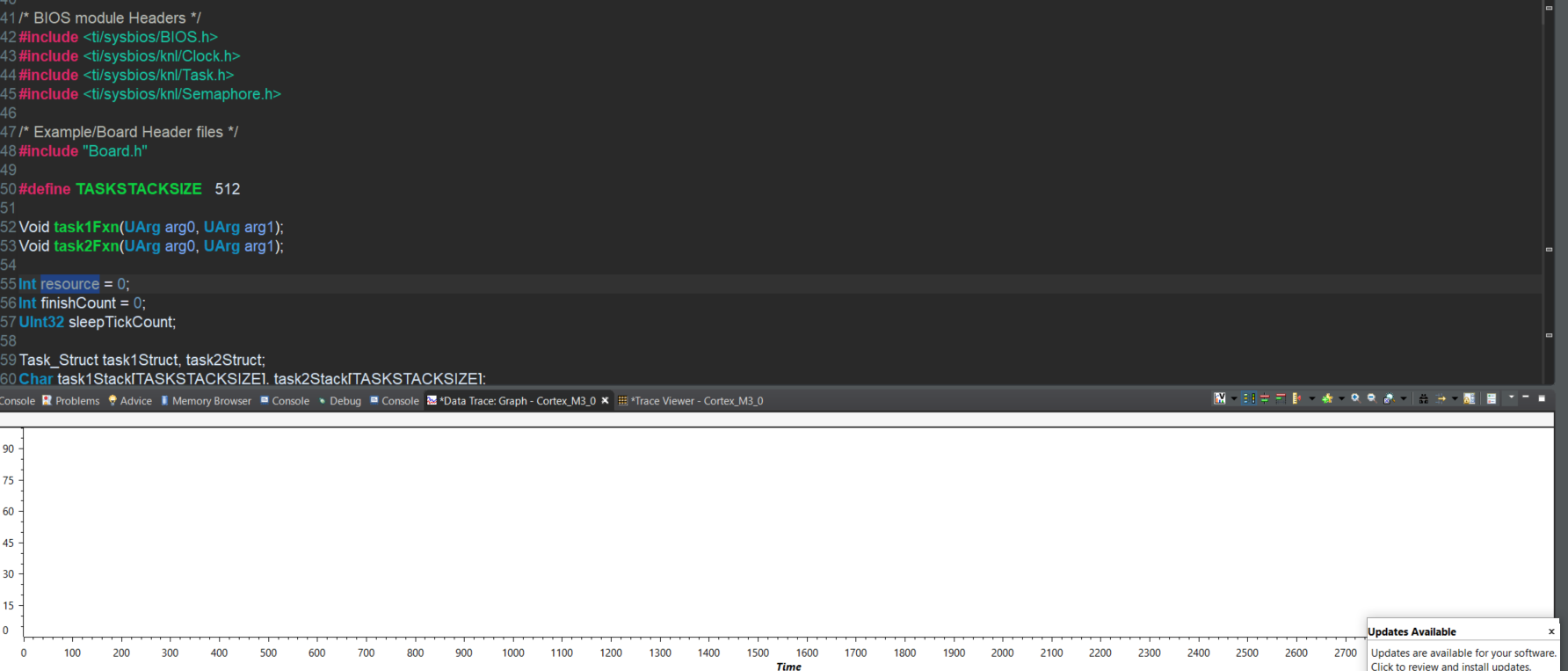

I did that but I didnt see anyting on Data Trace:Graph. Where did ı mistake? Can ı use XDS110( CC1350 ) for Trace Analayzer?

over 7 years ago

0 Siri over 7 years ago

TI__Guru* 86741 points

Please take a look at this:

processors.wiki.ti.com/.../SWO_Trace

BR
Siri

0 GOHM ELECTRONICS over 7 years ago in reply to Siri

Expert 2085 points

Hi Siri,

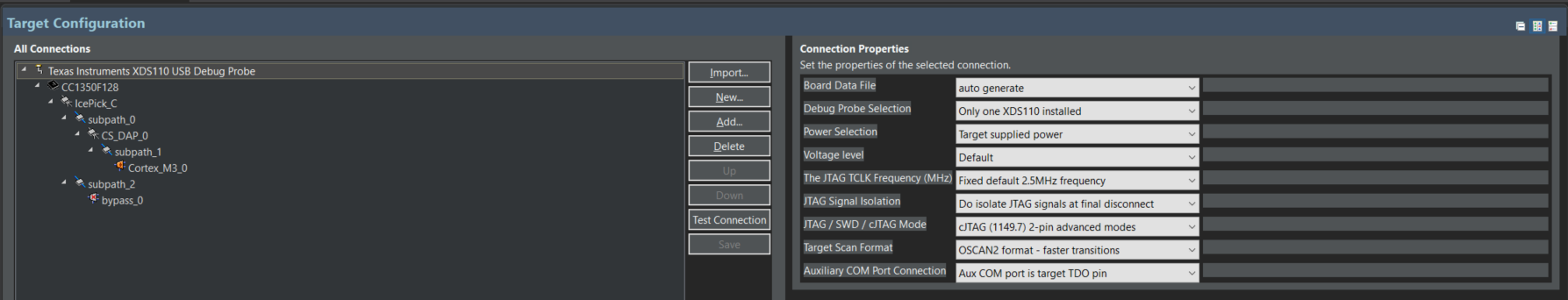

We are using only LAUNCHXL-CC1350 to achieve data variable tracing. Is it enough for this purpose ? Or Do we need a XDS110 Debug Probe ?
Best regards.

0 Siri over 7 years ago in reply to GOHM ELECTRONICS

TI__Guru* 86741 points

A XDS110 debugger is included on the LP.

Siri

0 GOHM ELECTRONICS over 7 years ago in reply to Siri

Expert 2085 points

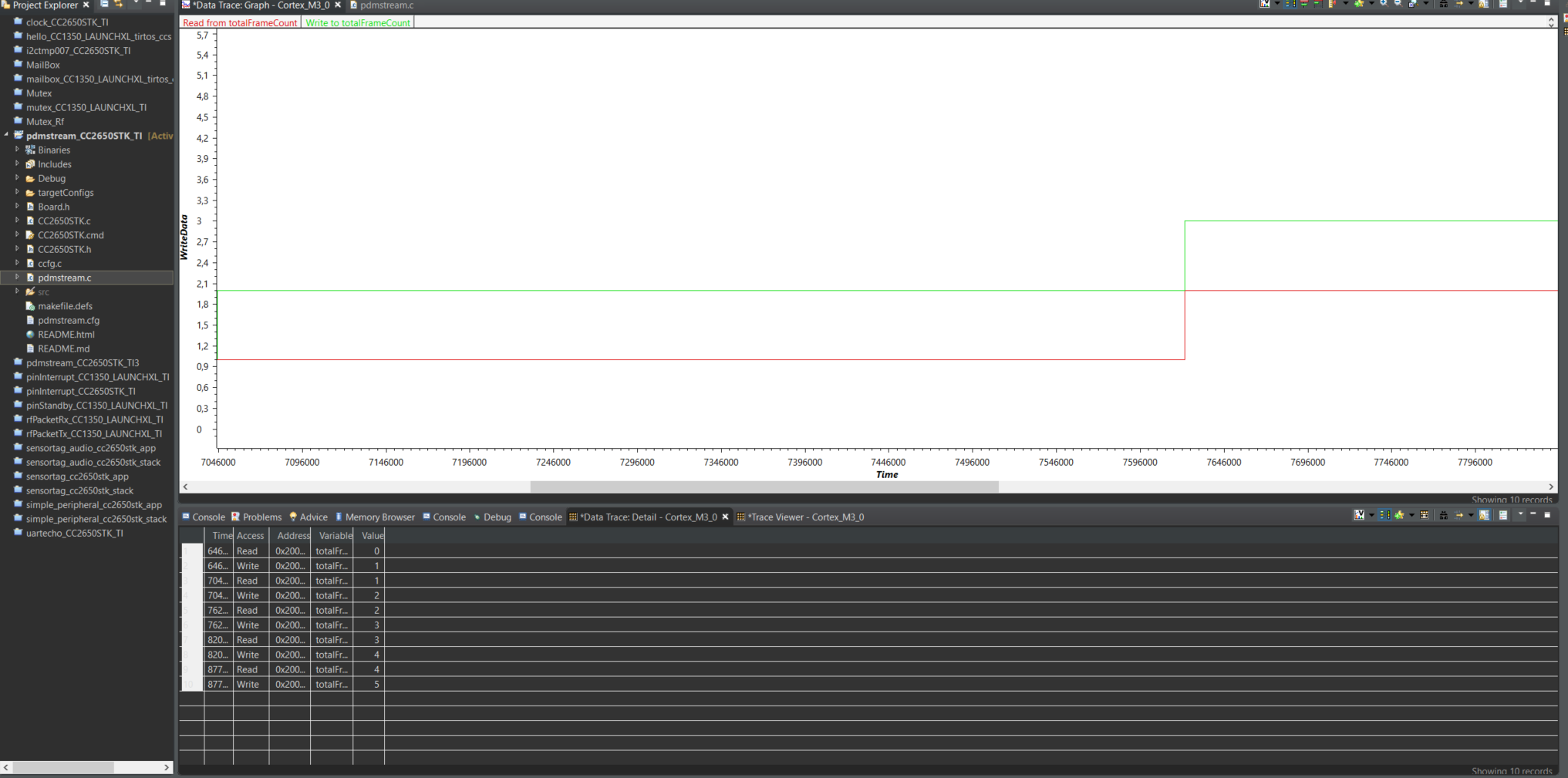

I dont understand. Do we need XDS debug probe ? and now I am using CC2650STK. I am working on pdmstream example. I want to see totalFrameCount variable on Data Trace:Graph. But sometimes ı saw 2,14 or 18 value. I wanna see all the valueswhen I suspend the code.

0 Siri over 7 years ago in reply to GOHM ELECTRONICS

TI__Guru* 86741 points

If you are running code on the CC2650STK you need to connect the Sensortag to for example a LP (containing XDS110). You can connect the SensorTag to the XDS110 Out connector on the LP and remove the jumpers on the LP.

Since you are getting some signals out, I would assume that your HW is OK. I tried the same example as you are (but on the CC1350STK) and did also just see some values, and sometimes none at all.

I will strongly recommend that you create a new post in the CCS forum, as they should be able to help you with how the Trace Analyzer works.

e2e.ti.com/.../81

I will close this thread, as I do not think the problem is realted to the HW, but rather to the tool itself.

Best of luck with your project.

BR

Siri
