Part Number: CC1310
Tool/software: TI-RTOS
Hi,
This is regarding SmartRF Setting for Long Range communication using CC1310.Please tell us about the followings
1.Can We use CMD_PROP_TX_ADV, CMD_PROP_RX_ADV in Long Range Mode?
This thread has been locked.
If you have a related question, please click the "Ask a related question" button in the top right corner. The newly created question will be automatically linked to this question.
1)
You can use the advanced RX and TX commands when using LRM ( not sure if there are certain functionality that is not supported, for example very long preamble as used in the WOR example).
2)
I implemented address filtering when using CMD_PROP_RX_ADV and CMP_PROP_TX_ADV and tested it with both 50 kbps and 2.5 kbps SimpleLink Long Range, and it worked as expected.
I used a modified version of rfPacketRX and rfPacketTx to test this. My settings are below and the modified application files are attached.
#include <ti/devices/DeviceFamily.h>
#include DeviceFamily_constructPath(driverlib/rf_mailbox.h)
#include DeviceFamily_constructPath(driverlib/rf_common_cmd.h)
#include DeviceFamily_constructPath(driverlib/rf_prop_cmd.h)
#include <ti/drivers/rf/RF.h>
#include DeviceFamily_constructPath(rf_patches/rf_patch_cpe_sl_longrange.h)
#include DeviceFamily_constructPath(rf_patches/rf_patch_rfe_sl_longrange.h)
#include DeviceFamily_constructPath(rf_patches/rf_patch_mce_sl_longrange.h)
#include "smartrf_settings.h"
// TI-RTOS RF Mode Object
RF_Mode RF_prop =
{
.rfMode = RF_MODE_PROPRIETARY_SUB_1,
.cpePatchFxn = &rf_patch_cpe_sl_longrange,
.mcePatchFxn = &rf_patch_mce_sl_longrange,
.rfePatchFxn = &rf_patch_rfe_sl_longrange
};
// Overrides for CMD_PROP_RADIO_DIV_SETUP
uint32_t pOverrides[] =
{
// override_use_patch_simplelink_long_range.xml
// PHY: Use MCE RAM patch, RFE RAM patch
MCE_RFE_OVERRIDE(1,0,0,1,0,0),
// override_synth_prop_863_930_div5_lbw60k.xml
// Synth: Set recommended RTRIM to 7
HW_REG_OVERRIDE(0x4038,0x0037),
// Synth: Set Fref to 4 MHz
(uint32_t)0x000684A3,
// Synth: Configure fine calibration setting
HW_REG_OVERRIDE(0x4020,0x7F00),
// Synth: Configure fine calibration setting
HW_REG_OVERRIDE(0x4064,0x0040),
// Synth: Configure fine calibration setting
(uint32_t)0xB1070503,
// Synth: Configure fine calibration setting
(uint32_t)0x05330523,
// Synth: Set loop bandwidth after lock to 60 kHz
(uint32_t)0x40410583,
// Synth: Set loop bandwidth after lock to 60 kHz
(uint32_t)0x32CC0603,
// Synth: Set loop bandwidth after lock to 60 kHz
(uint32_t)0x00010623,
// Synth: Configure VCO LDO (in ADI1, set VCOLDOCFG=0x9F to use voltage input reference)
ADI_REG_OVERRIDE(1,4,0x9F),
// Synth: Configure synth LDO (in ADI1, set SLDOCTL0.COMP_CAP=1)
ADI_HALFREG_OVERRIDE(1,7,0x4,0x4),
// Synth: Use 24 MHz XOSC as synth clock, enable extra PLL filtering
(uint32_t)0x02010403,
// Synth: Configure extra PLL filtering
(uint32_t)0x00108463,
// Synth: Increase synth programming timeout (0x04B0 RAT ticks = 300 us)
(uint32_t)0x04B00243,
// override_synth_disable_bias_div5.xml
// Synth: Set divider bias to disabled
HW32_ARRAY_OVERRIDE(0x405C,1),
// Synth: Set divider bias to disabled (specific for loDivider=5)
(uint32_t)0x18000200,
// override_phy_rx_aaf_bw_0xd.xml
// Rx: Set anti-aliasing filter bandwidth to 0xD (in ADI0, set IFAMPCTL3[7:4]=0xD)
ADI_HALFREG_OVERRIDE(0,61,0xF,0xD),
// override_phy_gfsk_rx.xml
// Rx: Set LNA bias current trim offset to 3
(uint32_t)0x00038883,
// Rx: Freeze RSSI on sync found event
HW_REG_OVERRIDE(0x6084,0x35F1),
// override_phy_gfsk_pa_ramp_agc_reflevel_0x14.xml
// Tx: Configure PA ramping setting (0x41). Rx: Set AGC reference level to 0x14.
HW_REG_OVERRIDE(0x6088,0x4114),
// Tx: Configure PA ramping setting
HW_REG_OVERRIDE(0x608C,0x8213),
// override_phy_long_range_dsss4.xml
// PHY: Configure DSSS SF=4
HW_REG_OVERRIDE(0x505C,0x0303),
// override_phy_rx_rssi_offset_5db.xml
// Rx: Set RSSI offset to adjust reported RSSI by +5 dB (default: 0), trimmed for external bias and differential configuration
(uint32_t)0x00FB88A3,
// TX power override
// Tx: Set PA trim to max (in ADI0, set PACTL0=0xF8)
ADI_REG_OVERRIDE(0,12,0xF8),
(uint32_t)0xFFFFFFFF
};
// CMD_PROP_RADIO_DIV_SETUP
rfc_CMD_PROP_RADIO_DIV_SETUP_t RF_cmdPropRadioDivSetup =
{
.commandNo = 0x3807,
.status = 0x0000,
.pNextOp = 0, // INSERT APPLICABLE POINTER: (uint8_t*)&xxx
.startTime = 0x00000000,
.startTrigger.triggerType = 0x0,
.startTrigger.bEnaCmd = 0x0,
.startTrigger.triggerNo = 0x0,
.startTrigger.pastTrig = 0x0,
.condition.rule = 0x1,
.condition.nSkip = 0x0,
.modulation.modType = 0x1,
.modulation.deviation = 0x64,
.symbolRate.preScale = 0xF,
.symbolRate.rateWord = 0x8000,
.rxBw = 0x24,
.preamConf.nPreamBytes = 0x4,
.preamConf.preamMode = 0x0,
.formatConf.nSwBits = 0x20,
.formatConf.bBitReversal = 0x0,
.formatConf.bMsbFirst = 0x1,
.formatConf.fecMode = 0x0,
.formatConf.whitenMode = 0x0,
.config.frontEndMode = 0x0,
.config.biasMode = 0x1,
.config.analogCfgMode = 0x0,
.config.bNoFsPowerUp = 0x0,
.txPower = 0xA73F,
.pRegOverride = pOverrides,
.centerFreq = 0x0364,
.intFreq = 0x8000,
.loDivider = 0x05,
};
// CMD_FS
rfc_CMD_FS_t RF_cmdFs =
{
.commandNo = 0x0803,
.status = 0x0000,
.pNextOp = 0, // INSERT APPLICABLE POINTER: (uint8_t*)&xxx
.startTime = 0x00000000,
.startTrigger.triggerType = 0x0,
.startTrigger.bEnaCmd = 0x0,
.startTrigger.triggerNo = 0x0,
.startTrigger.pastTrig = 0x0,
.condition.rule = 0x1,
.condition.nSkip = 0x0,
.frequency = 0x0364,
.fractFreq = 0x0000,
.synthConf.bTxMode = 0x0,
.synthConf.refFreq = 0x0,
.__dummy0 = 0x00,
.__dummy1 = 0x00,
.__dummy2 = 0x00,
.__dummy3 = 0x0000,
};
// CMD_PROP_RX_ADV
// Proprietary Mode Advanced Receive Command
rfc_CMD_PROP_RX_ADV_t RF_cmdPropRxAdv =
{
.commandNo = 0x3804,
.status = 0x0000,
.pNextOp = 0, // INSERT APPLICABLE POINTER: (uint8_t*)&xxx
.startTime = 0x00000000,
.startTrigger.triggerType = 0x0,
.startTrigger.bEnaCmd = 0x0,
.startTrigger.triggerNo = 0x0,
.startTrigger.pastTrig = 0x0,
.condition.rule = 0x1,
.condition.nSkip = 0x0,
.pktConf.bFsOff = 0x0,
.pktConf.bRepeatOk = 0x0,
.pktConf.bRepeatNok = 0x0,
.pktConf.bUseCrc = 0x1,
.pktConf.bCrcIncSw = 0x0,
.pktConf.bCrcIncHdr = 0x1,
.pktConf.endType = 0x0,
.pktConf.filterOp = 0x0,
.rxConf.bAutoFlushIgnored = 0x0,
.rxConf.bAutoFlushCrcErr = 0x0,
.rxConf.bIncludeHdr = 0x1,
.rxConf.bIncludeCrc = 0x0,
.rxConf.bAppendRssi = 0x0,
.rxConf.bAppendTimestamp = 0x0,
.rxConf.bAppendStatus = 0x0,
.syncWord0 = 0x930B51DE,
.syncWord1 = 0x00000000,
.maxPktLen = 0x00FF,
.hdrConf.numHdrBits = 0x8,
.hdrConf.lenPos = 0x0,
.hdrConf.numLenBits = 0x8,
.addrConf.addrType = 0x0,
.addrConf.addrSize = 0x1,
.addrConf.addrPos = 0x0,
.addrConf.numAddr = 0x2,
.lenOffset = 0x00,
.endTrigger.triggerType = 0x1,
.endTrigger.bEnaCmd = 0x0,
.endTrigger.triggerNo = 0x0,
.endTrigger.pastTrig = 0x0,
.endTime = 0x00000000,
.pAddr = 0, // INSERT APPLICABLE POINTER: (uint8_t*)&xxx
.pQueue = 0, // INSERT APPLICABLE POINTER: (dataQueue_t*)&xxx
.pOutput = 0 // INSERT APPLICABLE POINTER: (uint8_t*)&xxx
};
/ CMD_PROP_TX_ADV
// Proprietary Mode Advanced Transmit Command
rfc_CMD_PROP_TX_ADV_t RF_cmdPropTxAdv =
{
.commandNo = 0x3803,
.status = 0x0000,
.pNextOp = 0, // INSERT APPLICABLE POINTER: (uint8_t*)&xxx
.startTime = 0x00000000,
.startTrigger.triggerType = 0x0,
.startTrigger.bEnaCmd = 0x0,
.startTrigger.triggerNo = 0x0,
.startTrigger.pastTrig = 0x0,
.condition.rule = 0x1,
.condition.nSkip = 0x0,
.pktConf.bFsOff = 0x0,
.pktConf.bUseCrc = 0x1,
.pktConf.bCrcIncSw = 0x0,
.pktConf.bCrcIncHdr = 0x1,
.numHdrBits = 0x08,
.pktLen = 0x0014,
.startConf.bExtTxTrig = 0x0,
.startConf.inputMode = 0x0,
.startConf.source = 0x0,
.preTrigger.triggerType = 0x0,
.preTrigger.bEnaCmd = 0x0,
.preTrigger.triggerNo = 0x0,
.preTrigger.pastTrig = 0x0,
.preTime = 0x00000000,
.syncWord = 0x930B51DE,
.pPkt = 0 // INSERT APPLICABLE POINTER: (uint8_t*)&xxx
};
/*
* Copyright (c) 2017, Texas Instruments Incorporated
* All rights reserved.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
*
* * Redistributions of source code must retain the above copyright
* notice, this list of conditions and the following disclaimer.
*
* * Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in the
* documentation and/or other materials provided with the distribution.
*
* * Neither the name of Texas Instruments Incorporated nor the names of
* its contributors may be used to endorse or promote products derived
* from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
* AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
* THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
* PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
* CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
* EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
* PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
* OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
* WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
* OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
* EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/
/***** Includes *****/
/* Standard C Libraries */
#include <stdlib.h>
#include <unistd.h>
/* TI Drivers */
#include <ti/drivers/rf/RF.h>
#include <ti/drivers/PIN.h>
#include <ti/drivers/pin/PINCC26XX.h>
/* Driverlib Header files */
#include DeviceFamily_constructPath(driverlib/rf_prop_mailbox.h)
/* Board Header files */
#include "Board.h"
#include "smartrf_settings/smartrf_settings.h"
/***** Defines *****/
/* Do power measurement */
//#define POWER_MEASUREMENT
/* Packet TX Configuration */
#define PAYLOAD_LENGTH 10
#ifdef POWER_MEASUREMENT
#define PACKET_INTERVAL 5 /* For power measurement set packet interval to 5s */
#else
#define PACKET_INTERVAL 500000 /* Set packet interval to 500000us or 500ms */
#endif
/***** Prototypes *****/
/***** Variable declarations *****/
static RF_Object rfObject;
static RF_Handle rfHandle;
/* Pin driver handle */
static PIN_Handle ledPinHandle;
static PIN_State ledPinState;
static uint8_t packet[PAYLOAD_LENGTH + 1]; // Length must be written to the header (header is 8 bits: .numHdrBits = 0x08)
/*
* Application LED pin configuration table:
* - All LEDs board LEDs are off.
*/
PIN_Config pinTable[] =
{
Board_PIN_LED1 | PIN_GPIO_OUTPUT_EN | PIN_GPIO_LOW | PIN_PUSHPULL | PIN_DRVSTR_MAX,
#if defined Board_CC1352R1_LAUNCHXL
Board_DIO30_RFSW | PIN_GPIO_OUTPUT_EN | PIN_GPIO_HIGH | PIN_PUSHPULL | PIN_DRVSTR_MAX,
#endif
#ifdef POWER_MEASUREMENT
#if defined(Board_CC1350_LAUNCHXL)
Board_DIO30_SWPWR | PIN_GPIO_OUTPUT_EN | PIN_GPIO_HIGH | PIN_PUSHPULL | PIN_DRVSTR_MAX,
#endif
#endif
PIN_TERMINATE
};
/***** Function definitions *****/
void *mainThread(void *arg0)
{
RF_Params rfParams;
RF_Params_init(&rfParams);
/* Open LED pins */
ledPinHandle = PIN_open(&ledPinState, pinTable);
if (ledPinHandle == NULL)
{
while(1);
}
#ifdef POWER_MEASUREMENT
#if defined(Board_CC1350_LAUNCHXL)
/* Route out PA active pin to Board_DIO30_SWPWR */
PINCC26XX_setMux(ledPinHandle, Board_DIO30_SWPWR, PINCC26XX_MUX_RFC_GPO1);
#endif
#endif
RF_cmdPropTxAdv.pktLen = PAYLOAD_LENGTH + 1;
RF_cmdPropTxAdv.pPkt = packet;
RF_cmdPropTxAdv.startTrigger.triggerType = TRIG_NOW;
/* Request access to the radio */
rfHandle = RF_open(&rfObject, &RF_prop, (RF_RadioSetup*)&RF_cmdPropRadioDivSetup, &rfParams);
/* Set the frequency */
RF_postCmd(rfHandle, (RF_Op*)&RF_cmdFs, RF_PriorityNormal, NULL, 0);
while(1)
{
/* Create packet with incrementing sequence number and random payload */
packet[0] = PAYLOAD_LENGTH;
packet[1] = 0xAA; // Address
uint8_t i;
for (i = 2; i < PAYLOAD_LENGTH + 1; i++)
{
packet[i] = i;
}
/* Send packet */
RF_EventMask terminationReason = RF_runCmd(rfHandle, (RF_Op*)&RF_cmdPropTxAdv,
RF_PriorityNormal, NULL, 0);
switch(terminationReason)
{
case RF_EventLastCmdDone:
// A stand-alone radio operation command or the last radio
// operation command in a chain finished.
break;
case RF_EventCmdCancelled:
// Command cancelled before it was started; it can be caused
// by RF_cancelCmd() or RF_flushCmd().
break;
case RF_EventCmdAborted:
// Abrupt command termination caused by RF_cancelCmd() or
// RF_flushCmd().
break;
case RF_EventCmdStopped:
// Graceful command termination caused by RF_cancelCmd() or
// RF_flushCmd().
break;
default:
// Uncaught error event
while(1);
}
uint32_t cmdStatus = ((volatile RF_Op*)&RF_cmdPropTxAdv)->status;
switch(cmdStatus)
{
case PROP_DONE_OK:
// Packet transmitted successfully
break;
case PROP_DONE_STOPPED:
// received CMD_STOP while transmitting packet and finished
// transmitting packet
break;
case PROP_DONE_ABORT:
// Received CMD_ABORT while transmitting packet
break;
case PROP_ERROR_PAR:
// Observed illegal parameter
break;
case PROP_ERROR_NO_SETUP:
// Command sent without setting up the radio in a supported
// mode using CMD_PROP_RADIO_SETUP or CMD_RADIO_SETUP
break;
case PROP_ERROR_NO_FS:
// Command sent without the synthesizer being programmed
break;
case PROP_ERROR_TXUNF:
// TX underflow observed during operation
break;
default:
// Uncaught error event - these could come from the
// pool of states defined in rf_mailbox.h
while(1);
}
#ifndef POWER_MEASUREMENT
PIN_setOutputValue(ledPinHandle, Board_PIN_LED1,!PIN_getOutputValue(Board_PIN_LED1));
#endif
/* Power down the radio */
RF_yield(rfHandle);
#ifdef POWER_MEASUREMENT
/* Sleep for PACKET_INTERVAL s */
sleep(PACKET_INTERVAL);
#else
/* Sleep for PACKET_INTERVAL us */
usleep(PACKET_INTERVAL);
#endif
}
}
/*
* Copyright (c) 2017, Texas Instruments Incorporated
* All rights reserved.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
*
* * Redistributions of source code must retain the above copyright
* notice, this list of conditions and the following disclaimer.
*
* * Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in the
* documentation and/or other materials provided with the distribution.
*
* * Neither the name of Texas Instruments Incorporated nor the names of
* its contributors may be used to endorse or promote products derived
* from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
* AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
* THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
* PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
* CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
* EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
* PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
* OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
* WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
* OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
* EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/
/***** Includes *****/
/* Standard C Libraries */
#include <stdlib.h>
/* TI Drivers */
#include <ti/drivers/rf/RF.h>
#include <ti/drivers/PIN.h>
/* Driverlib Header files */
#include DeviceFamily_constructPath(driverlib/rf_prop_mailbox.h)
/* Board Header files */
#include "Board.h"
/* Application Header files */
#include "RFQueue.h"
#include "smartrf_settings/smartrf_settings.h"
/***** Defines *****/
/* Packet RX Configuration */
#define DATA_ENTRY_HEADER_SIZE 8 /* Constant header size of a Generic Data Entry */
#define MAX_LENGTH 10 /* Max length byte the radio will accept */
#define NUM_DATA_ENTRIES 2 /* NOTE: Only two data entries supported at the moment */
#define NUM_APPENDED_BYTES 1 /* The Data Entries data field will contain:
* 1 Header byte (RF_cmdPropRx.rxConf.bIncludeHdr = 0x1)
* Max 30 payload bytes */
/***** Prototypes *****/
static void callback(RF_Handle h, RF_CmdHandle ch, RF_EventMask e);
/***** Variable declarations *****/
static RF_Object rfObject;
static RF_Handle rfHandle;
/* Pin driver handle */
static PIN_Handle ledPinHandle;
static PIN_State ledPinState;
/* Buffer which contains all Data Entries for receiving data.
* Pragmas are needed to make sure this buffer is 4 byte aligned (requirement from the RF Core) */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_ALIGN (rxDataEntryBuffer, 4);
static uint8_t
rxDataEntryBuffer[RF_QUEUE_DATA_ENTRY_BUFFER_SIZE(NUM_DATA_ENTRIES,
MAX_LENGTH,
NUM_APPENDED_BYTES)];
#elif defined(__IAR_SYSTEMS_ICC__)
#pragma data_alignment = 4
static uint8_t
rxDataEntryBuffer[RF_QUEUE_DATA_ENTRY_BUFFER_SIZE(NUM_DATA_ENTRIES,
MAX_LENGTH,
NUM_APPENDED_BYTES)];
#elif defined(__GNUC__)
static uint8_t
rxDataEntryBuffer[RF_QUEUE_DATA_ENTRY_BUFFER_SIZE(NUM_DATA_ENTRIES,
MAX_LENGTH,
NUM_APPENDED_BYTES)]
__attribute__((aligned(4)));
#else
#error This compiler is not supported.
#endif
/* Receive dataQueue for RF Core to fill in data */
static dataQueue_t dataQueue;
static rfc_dataEntryGeneral_t* currentDataEntry;
static uint8_t packetLength;
static uint8_t* packetDataPointer;
static rfc_propRxOutput_t rxStatistics;
static uint8_t addressList[] = {0xAA, 0xBB};
static uint8_t packet[MAX_LENGTH + NUM_APPENDED_BYTES - 1]; /* The length byte is stored in a separate variable */
/*
* Application LED pin configuration table:
* - All LEDs board LEDs are off.
*/
PIN_Config pinTable[] =
{
Board_PIN_LED2 | PIN_GPIO_OUTPUT_EN | PIN_GPIO_LOW | PIN_PUSHPULL | PIN_DRVSTR_MAX,
#if defined Board_CC1352R1_LAUNCHXL
Board_DIO30_RFSW | PIN_GPIO_OUTPUT_EN | PIN_GPIO_HIGH | PIN_PUSHPULL | PIN_DRVSTR_MAX,
#endif
PIN_TERMINATE
};
/***** Function definitions *****/
void *mainThread(void *arg0)
{
RF_Params rfParams;
RF_Params_init(&rfParams);
/* Open LED pins */
ledPinHandle = PIN_open(&ledPinState, pinTable);
if (ledPinHandle == NULL)
{
while(1);
}
if( RFQueue_defineQueue(&dataQueue,
rxDataEntryBuffer,
sizeof(rxDataEntryBuffer),
NUM_DATA_ENTRIES,
MAX_LENGTH + NUM_APPENDED_BYTES))
{
/* Failed to allocate space for all data entries */
while(1);
}
/* Modify CMD_PROP_RX command for application needs */
/* Set the Data Entity queue for received data */
RF_cmdPropRxAdv.pQueue = &dataQueue;
/* Discard ignored packets from Rx queue */
RF_cmdPropRxAdv.rxConf.bAutoFlushIgnored = 1;
/* Discard packets with CRC error from Rx queue */
RF_cmdPropRxAdv.rxConf.bAutoFlushCrcErr = 1;
/* Implement packet length filtering to avoid PROP_ERROR_RXBUF */
RF_cmdPropRxAdv.maxPktLen = MAX_LENGTH;
RF_cmdPropRxAdv.pktConf.bRepeatOk = 1;
RF_cmdPropRxAdv.pktConf.bRepeatNok = 1;
RF_cmdPropRxAdv.pOutput = (uint8_t*)&rxStatistics;
RF_cmdPropRxAdv.pAddr = (uint8_t*)&addressList;
/* Request access to the radio */
rfHandle = RF_open(&rfObject, &RF_prop,
(RF_RadioSetup*)&RF_cmdPropRadioDivSetup, &rfParams);
/* Set the frequency */
RF_postCmd(rfHandle, (RF_Op*)&RF_cmdFs, RF_PriorityNormal, NULL, 0);
/* Enter RX mode and stay forever in RX */
RF_EventMask terminationReason = RF_runCmd(rfHandle, (RF_Op*)&RF_cmdPropRxAdv,
RF_PriorityNormal, &callback,
RF_EventRxEntryDone);
switch(terminationReason)
{
case RF_EventLastCmdDone:
// A stand-alone radio operation command or the last radio
// operation command in a chain finished.
break;
case RF_EventCmdCancelled:
// Command cancelled before it was started; it can be caused
// by RF_cancelCmd() or RF_flushCmd().
break;
case RF_EventCmdAborted:
// Abrupt command termination caused by RF_cancelCmd() or
// RF_flushCmd().
break;
case RF_EventCmdStopped:
// Graceful command termination caused by RF_cancelCmd() or
// RF_flushCmd().
break;
default:
// Uncaught error event
while(1);
}
uint32_t cmdStatus = ((volatile RF_Op*)&RF_cmdPropRxAdv)->status;
switch(cmdStatus)
{
case PROP_DONE_OK:
// Packet received with CRC OK
break;
case PROP_DONE_RXERR:
// Packet received with CRC error
break;
case PROP_DONE_RXTIMEOUT:
// Observed end trigger while in sync search
break;
case PROP_DONE_BREAK:
// Observed end trigger while receiving packet when the command is
// configured with endType set to 1
break;
case PROP_DONE_ENDED:
// Received packet after having observed the end trigger; if the
// command is configured with endType set to 0, the end trigger
// will not terminate an ongoing reception
break;
case PROP_DONE_STOPPED:
// received CMD_STOP after command started and, if sync found,
// packet is received
break;
case PROP_DONE_ABORT:
// Received CMD_ABORT after command started
break;
case PROP_ERROR_RXBUF:
// No RX buffer large enough for the received data available at
// the start of a packet
break;
case PROP_ERROR_RXFULL:
// Out of RX buffer space during reception in a partial read
break;
case PROP_ERROR_PAR:
// Observed illegal parameter
break;
case PROP_ERROR_NO_SETUP:
// Command sent without setting up the radio in a supported
// mode using CMD_PROP_RADIO_SETUP or CMD_RADIO_SETUP
break;
case PROP_ERROR_NO_FS:
// Command sent without the synthesizer being programmed
break;
case PROP_ERROR_RXOVF:
// RX overflow observed during operation
break;
default:
// Uncaught error event - these could come from the
// pool of states defined in rf_mailbox.h
while(1);
}
while(1);
}
void callback(RF_Handle h, RF_CmdHandle ch, RF_EventMask e)
{
if (e & RF_EventRxEntryDone)
{
/* Toggle pin to indicate RX */
PIN_setOutputValue(ledPinHandle, Board_PIN_LED2,
!PIN_getOutputValue(Board_PIN_LED2));
/* Get current unhandled data entry */
currentDataEntry = RFQueue_getDataEntry();
/* Handle the packet data, located at ¤tDataEntry->data:
* - Length is the first byte with the current configuration
* - Data starts from the second byte */
packetLength = *(uint8_t*)(¤tDataEntry->data);
packetDataPointer = (uint8_t*)(¤tDataEntry->data + 1);
/* Copy the payload + the status byte to the packet variable */
memcpy(packet, packetDataPointer, (packetLength + 1));
RFQueue_nextEntry();
}
}
3)
As a rule of thumb, the sensitivity will increase when lowering the data rate.
Siri
When receiving,The Consumption current during reception is 5.5 mA.
When sleeping(standby), It was about 1 mA. On specifications, when sleeping,we expect 1uA or less.
Do I have to modify the sample code? Please let me know if you have any settings.
Thank you for answering.

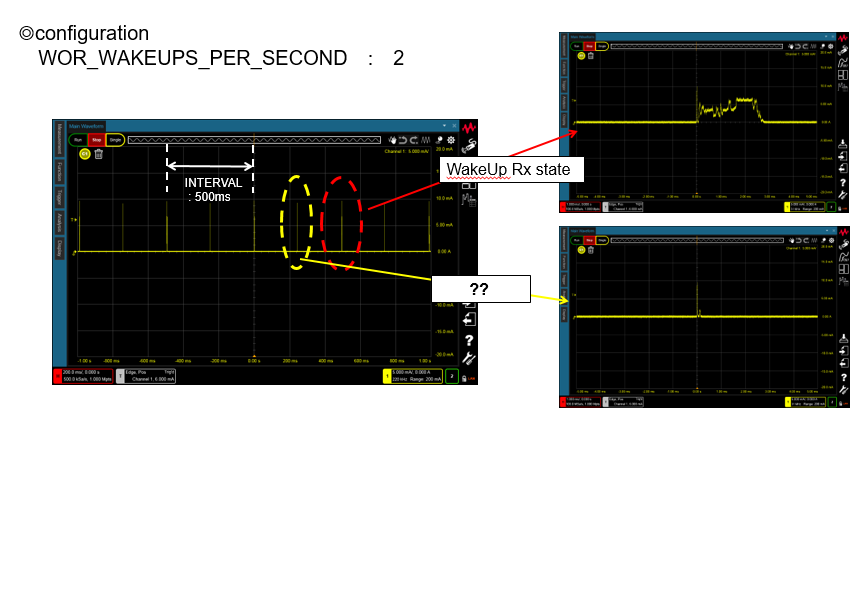

I could measure with CC1310-LaunchPad. The cause that can not measured was Power supply noise.
the measurement result with CC1310-LaunchPad is following.
We think that it become Rx state every 500ms.(red dotted circle). and There is a rise that is not Rx state(Yellow dotted circle).
what is the rise in Yellow dotted circle.
