Can anyone help me to get the model of those components for PCB assembling ?

Paulsin Polachan

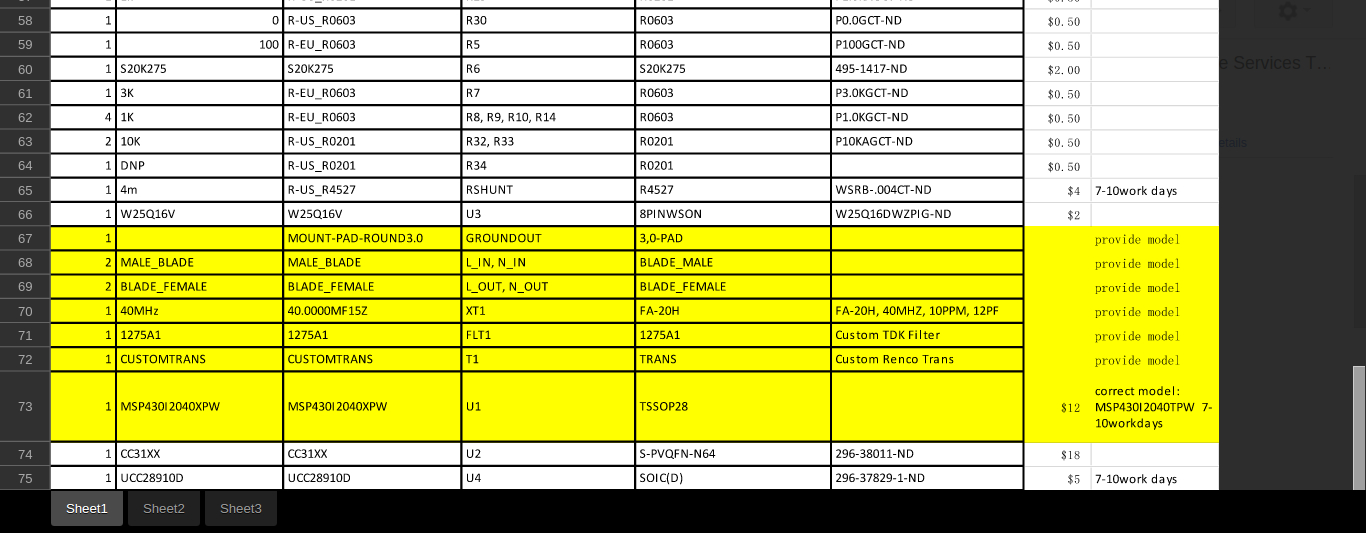

I am Paulsin. I want to assemble a PCB of Smart Plug with Remote Disconnect and Wi-Fi Connectivity. I contacted a PCBA company. I sent BOM file to them. After examining the file, they said that model of some components is not specified. I shall attach the file in which the components whose model not marked is specified. Can anyone help me to get the model of those components ? Thanks in advance.

over 9 years ago

0 Josh Wyatt over 9 years ago

TI__Guru* 91206 points

the first three are the AC power line "prongs" these would be for whatever country you want the device to operate in (i.e. www.worldstandards.eu/.../ ) you would pick the style that works for you and find the appropriate parts to match that for your PCB

next item down is Epson 40MHz crystal ==> support.epson.biz/.../doc_check.php
next item is BP filter from TDK ==> product.tdk.com/.../rf_bpf_dea202450bt-1275a1_en.pdf
the custom transformer is from Renco ==> www.rencousa.com/.../transformers
the MSP430 is either in TSSOP or VQFN package, mechanical data at end of data sheet here ==> www.ti.com/.../msp430i2040.pdf
