CC3220MODA: Request of reviewing schematics

na na78

Guru 16770 points

Part Number: CC3220MODA
Other Parts Discussed in Thread: CC3220MOD

Could you please check the customer's schematic of CC3220MODA?

Please give me feedback if you could see any problem on it.

CC3220MODA_sch.xlsx

BestRegards

over 7 years ago

0 Seong Kim over 7 years ago

TI__Mastermind 46521 points

na na78,

Next time, please use the design checklist here before requesting a schematic review: processors.wiki.ti.com/.../CC3120_&_CC3220_Hardware_Design_Review

The CC3220MODA LaunchPad's design files can also be used as reference to verify that the design's engine area is correct: www.ti.com/.../swrc342

Here is my feedback:

1) Pin21, JTAG_TCK, requires a 100k pull down resistor. This is critical for the module to work properly.

2) To configure SOP as UARTLOAD_FUNCTIONAL_4WJ, SOP0 must be pulled down, so that SOP[2:0] = 010

3) Ensure that pin 46 and 47 are pulled up to VBAT with a 100k for UART flashing.

BR,
Seong

0 na na78 over 7 years ago in reply to Seong Kim

Guru 16770 points

Hi Seong
Thank you for your support.

I will reflect your advice to schematics.

BestRegards

0 Seong Kim over 6 years ago

TI__Mastermind 46521 points

na na78,

My apologies - I looked more into this but for the module, there is an internal 100k pull down on the JTAG_TCK pin already. Adding an additional 100k to GND externally will create a weaker pull down and would still work, but it is not required.

BR,
Seong

0 na na78 over 6 years ago in reply to Seong Kim

Guru 16770 points

Hi Seong

Thank you for your additional information.
But I could not see description in datasheet that there is 100k PD on JTAG_TCK pin.

While, CC3220MODA schematic checklist (swru462d) specifies "Add 100K pull-down resistors on JTAG_TCK (Pin #21)".

So I believe adding 100K pull-down resistor on JTAG_TCK is required.

Could you please confirm once again?

BestRegards

0 Seong Kim over 6 years ago in reply to na na78

TI__Mastermind 46521 points

This information found in the checklist is incorrect and must be updated.

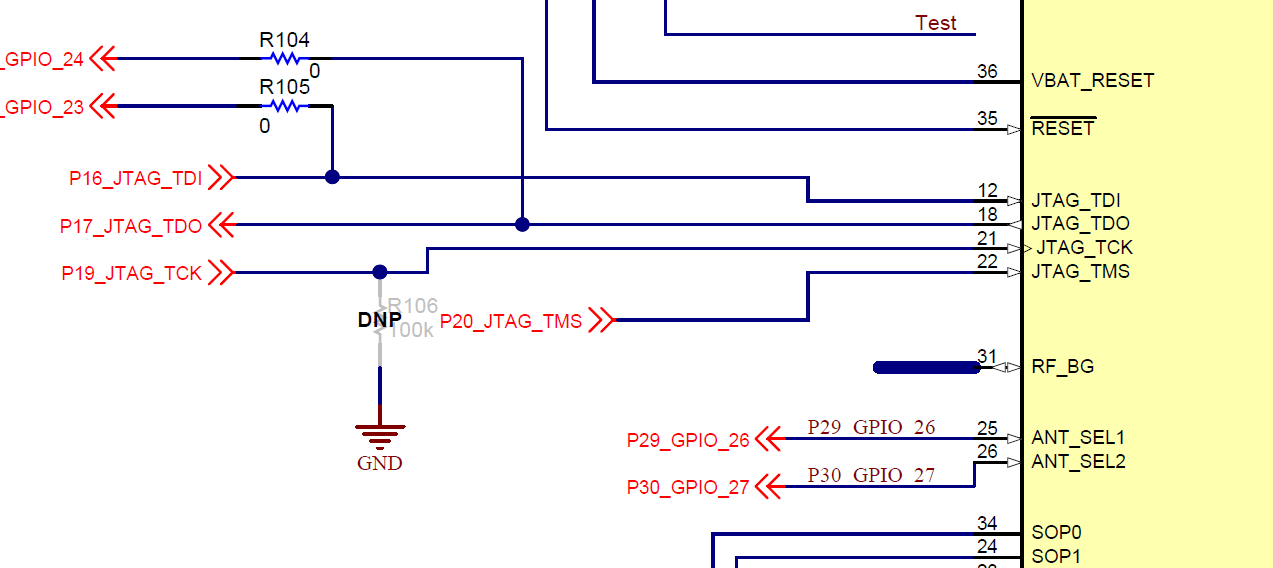

This is why the CC3220MOD evm was designed with only provisions for the 100k pull down on JTAG_CLK pin2 - R106 is DNP'ed.

BR,

Seong
