Compiler/CC3200-LAUNCHXL: help...

Hi,

Please use Pin mux tool to proper setup of pins to GPIO. Using of GPIO pins is demonstrated at SDK example "blinky".

Jan

Could you explain how to use it as an example?

How do I fix this error?

Hi,

What are doing exactly?

Did you import "blinky" example into workspace? It seems that you are compiling "getting_started_with_wlan_station" example not a "blinky" example.

Jan

I am trying to import and apply the "blinky" example to the "getting_started with_wlan_station" example,

and the blinky example already has a pin number assigned to it,

and I have a link to http://www.ti.com/lit/ds/symlink/cc3200mod.pdf

 I want to add GPIO 10, 12, 13

Hi,

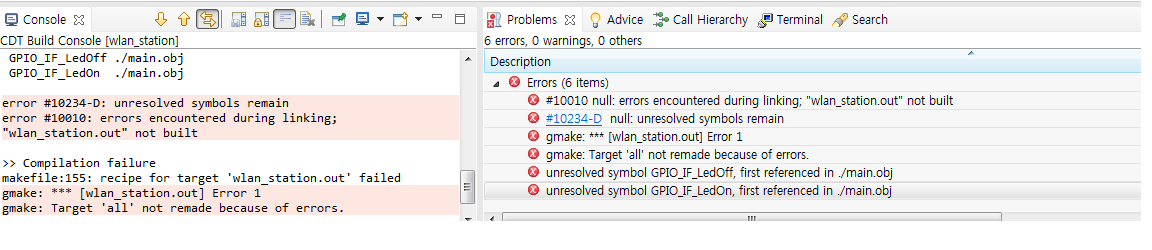

You have not included "gpio_if.h" file from \cc3200-sdk\example\common. From this reason you have compile error that reference for  GPIO_IF_LedOn() and GPIO_IF_LedOff() does not exist. Also do not forgot set properly pinmux according pinmux.h/c in "blinky" example.

Jan

Thank you.

First, I added the gpio_if.h file and the error disappears.

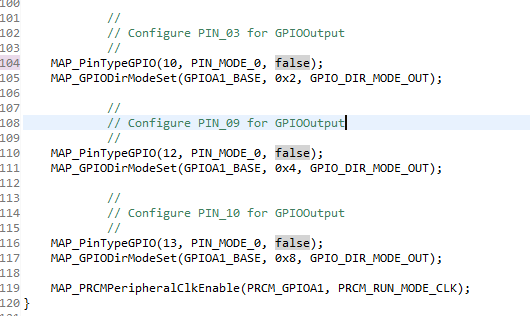

However, when I added pinmux.c as below, an error occurred.
 What is the problem?
And I want to put gpio12 and 13 on the following page.
 How do I put it?  please......

Hi,

No. You need to use MAP_PinTypeGPIO() not MAP_PinTypeGPIO10(). If you need determine how looks pinmux settings, please use pinmux tool.

Jan

where is the pinmux tool.......

Hi,

Please see my first answer.

Jan

hi

I have added the main and pinmux.c like above

but there is no error,

but the cc3200 device does not light up.

As you say blinkly refer to a file

blinkly file is exist the main, pinmux.c, pinmux.h

but pinmux.h is nothing.

So I used the code in main and pinmux.c as above.

what's wrong with me

Why did not the leds light up when I did this?

Hi,

Because you have set GPIO as input (GPIO_DIR_MODE_IN) and also you not use API to change GPIO state /GPIOPinWrite()/.

Jan

Can I switch to GPIO_DIR_MODE_OUT?
How do I fix it?

How can I use the API?
SORRY...

Hi,

When you want to control LED it is expected that GPIO is used as output (GPIO_DIR_MODE_OUT). You need to call API to write/change GPIO value as well.

Jan

Hi,

How to call the API

Hi,

By call API I mean call particular function. E.g.:

• GPIODirModeSet() - set port direction
• GPIOPinRead() - read state of port
• GPIOPinWrite() - write state of port
• etc.

Jan

Can I add it to main.c ??
ex)

void main()
{
BoardInit();
PinMuxConfig();
GPIOPinRead();
GPIOPinWrite();
MAP_GPIODirModeSet(GPIOA1_BASE, 0x4, GPIO_DIR_MODE_IN);
MAP_GPIODirModeSet(GPIOA1_BASE, 0x10, GPIO_DIR_MODE_IN);
MAP_GPIODirModeSet(GPIOA1_BASE, 0x20, GPIO_DIR_MODE_IN);

Hi,

Why not, although the that code doesn't make sense and probably will not work as expected. To change state pin of GPIO you need to...

1. enable clock for peripheral (using PRCMPeripheralClkEnable())
2. set pinmux to GPIO at particular pin number (using PRCMPeripheralClkEnable())
3. set GPIO port direction to output (via GPIODirModeSet())
4. write port state by GPIOPinWrite()

For syntax of APIs stated above please see \cc3200-sdk\docs\CC3200-Peripheral_Driver_Library_User's_Guide.chm

Jan

HI.

PRCMPeripheralClkEnable()

PRCMPeripheralClkEnable()

GPIODirModeSet()

GPIOPinWrite ()

Is it possible to add these functions to main.c?

Hi,

There is mistake that I mentioned PRCMPeripheralClkEnable() twice.

Inside your pinmux.c generated by pinmux-util you should already have PRCMPeripheralClkEnable(), PinTypeGPIO() and GPIODirModeSet(). From this reason you will should add into your main.c function GPIOPinWrite().

Jan

Can I add it this way?

Hi,

Yes, but you need to set proper parameters for your write function.

Jan

Why do not LEDs light up when I add these parameters?
