CC2530: Regarding custom cluster and attribute development in znp configuration.

sreedevi mohan

Part Number: CC2530
Other Parts Discussed in Thread: Z-STACK, , CC2592

Hi All,

Based on the use-case requirements we have to send our own data packet which includes a string "hello world" from [linux gate way]--->[znp device]--->[end device]--->[host of end device connected via uart(like imx)] .

We understood that this needs some custom clusters and attributes. What are the procedures needed and also could you give a brief explanation for the same as i am just a beginner in zigbee development?

over 6 years ago

0 sreedevi mohan over 6 years ago

Intellectual 865 points

Could you please help me? Anyone worked with the same requirement before?

0 Toby over 6 years ago in reply to sreedevi mohan

TI__Mastermind 35070 points

Hi,

For sending raw data packets (such as text), please see Part 2 of dev.ti.com/.../

For implementation in the gateway application, I would recommend seeing the following:
- Section 6 of Z-Stack Linux Developer's Guide (protobuf interface between gateway application and servers)
- gateway_config.tlg (cluster definitions)

Regards,
Toby

0 sreedevi mohan over 6 years ago in reply to Toby

Intellectual 865 points

Hi Toby,

Thanks for the reply.

We are using the following versions for the testing of znp configuration in our custom board.

GW : Z-Stack_Linux_Gateway-1.0.1
ZNP : Znp fw from Z-Stack_Home_1.2.2
End device : sample light end device from Z-Stack_Home_1.2.2

I just gone through the link that you provided. But the "zstackapi.h" and "icall.h" is not present in this stack, we are getting errors for the same.

0 sreedevi mohan over 6 years ago in reply to sreedevi mohan

Intellectual 865 points

Hi Toby,

Could you please help me to solve this issue?

0 Toby over 6 years ago in reply to sreedevi mohan

TI__Mastermind 35070 points

Part 2 was meant to show that an AF Data Request may be used to send a raw data packet, that a private cluster ID not defined by ZCL is needed, and other relevant parameters.

The MT commands which the ZNP handles are documented in "Z-Stack Monitor and Test API.pdf" (located in <Z-Stack Home>/Documents/API/Z-Stack Monitor and Test API.pdf). There, you can see that AF_DATA_REQUEST is included. This is the MT command that should be sent to the ZNP to send a raw data packet.

The Linux Gateway APIs currently offered are documented in "Documents/Z-Stack Linux Gateway - API document v1.1.pdf". These do not include APIs for AF.
In order to add such a feature, you will need to modify the gateway.proto (eg. a new command ID in gwCmdId_t, a corresponding defintion for a new message). You can follow an example of how protobuf works in Section 6 of "Z-Stack Linux Gateway Developer's Guide.pdf" (located in <Z-Stack Linux Gateway>/Documents).
Then you would need to add a case in gwHandlePbCb to handle the new command ID.

You can perhaps try using Z-Tool (located in <Z-Stack Home>/Tools/Z-Tool) to verify that the AF_DATA_REQUEST is sufficient for your needs.

0 sreedevi mohan over 6 years ago in reply to Toby

Intellectual 865 points

Hi Toby,

Thanks for the reply.
We found that MT_APP_MSG can be used to send raw data in znp. But how we can incorporate MT_UARTInit and MT_APPMsg functions in ZNP configuration?...We are getting compilation errors (showing redefinition error) while adding MT_TASK under defined symbols.

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

If you don't need ZCL, I suggest you can use your own MT commnad to setup coordinator with your Host MCU and ZNP. Then, you can use AF_DataRequest to send raw data directly between coordinator and device.

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

We want to send raw data from imx->znp>enddevice.I think ZCL is not needed in this case,am i correct?...How we can include MT command utilities in znp ?

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

Yes, ZCL is not needed in your case and you can refer to Z-Stack ZNP Interface Specification.pdf and Z-Stack Monitor and Test API.pdf under your Z-Stack document folder to implement it.

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

Can i use the same stacks,
GW : Z-Stack_Linux_Gateway-1.0.1
ZNP : Znp fw from Z-Stack_Home_1.2.2
End device : sample light end device from Z-Stack_Home_1.2.2
for MT commands ?
We are getting compilation errors (showing redefinition error) while adding MT_TASK under defined symbols.

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

You have to follow Z-Stack Linux Home GW coding architecture if you use it.

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

which is the best and easiest stack i can use as per the requirement that i mentioned earlier? Could you please share the better zstack and configuration for this use case(for both coordinator and end devices)?

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

Use GenericApp in Z-Stack mesh 1.0.0

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

>> Both as coordinator and end devices?
>>If so, can i send a "helloworld" from coordinator to all end devices ?
>> We dont have any switches for binding as we are using custom boards? Can we send broadcast message with out switches?

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

1. Yes. You can use GenericApp for both coordinaotr and end device.

2. Yes.

3. It's not recommended to use broadcast since sleeping end device might miss broadcast message.

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

How we can bind custom boards without any switches(without failure)?

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

Use MT command from your host sending to coordinator.

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

with ztool?

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

ZTool is a PC tool and I suppose you have to write your own MT command host on your iMX.

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

Any examples or docs available for linux program with MT commands?

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

The documents are CC2530ZNP Interface Specification.pdf and Z-Stack Monitor and Test API.pdf which make no difference on Linux or not.

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

Can you please provide the link for ztool?

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

After you install any verstion of Z-Stack , you can find it under Z-Stack installation folder\Tools\Z-Tool

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

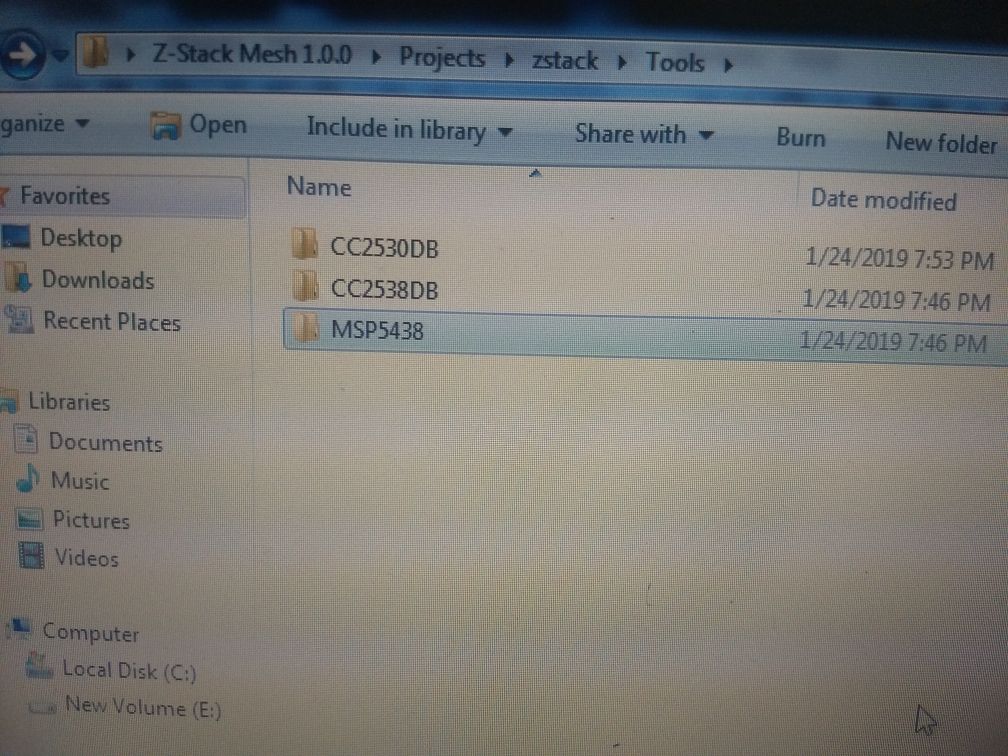

It is not showing under tools in mesh 1.0.0

0 YiKai Chen over 6 years ago

Guru 735695 points

It's under C:\Texas Instruments\Z-Stack Mesh 1.0.0\Tools\Z-Tool

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

Can send mt commands via ztool in zstack mesh1.0.0 generic app?

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

Yes

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

1. How to use ztool?
2. Only CC debugger is neeed or any other interface we should use?
3. We connected cc debugger and ztool is not detecting any device.We downloaded generic app coordinator image in chip

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

1. Try to refer to the following links
sunmaysky.blogspot.com/.../setup-zigbee-ha-coordinator-with-ti.html
sunmaysky.blogspot.com/.../how-to-do-device-binding-from-ti-ztool.html
sunmaysky.blogspot.com/.../use-ztool-z-stack-30-znp-to-set-up.html
2.&3 Ztool communicate with CC2530 through UART so you need to connect CC2530 through serial-to-USB cable to PC for ZTool to recognize CC2530.

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

From where should we take tx,rx,gnd pins for serial ?

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

Yes, you should connect UART TX/RX/GND to serial-to-USB convertor.

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

hi,

I have flashed the image generic app coordinator and generic app end device (from zstack mesh1.0.0) in the two custom cc2530 chips and compiled with extra flag MT_TASK,MT_APP_FUNC,MT_SYS_FUNC,MT_UTIL_FUNC and HAL_PA_LNA_CC2592(as we have range extender).

I can see that coordinator and device are sending data request and acknowledgement request.But, i can't see any "helloworld" is getting in end device.

Our aim is to bind the two devices using MT commands and send raw data.The serial port for coordinator /dev/ttymxc1 is up from imx6 side.I configured the port with default baud rate 38400 using stty linux command. We sent SYS_PING command 0xFE 0x00 0x21 0x01 0x20 as per the MT api doc from imx6 side by the following command.

echo -ne '\xFE\x00\x21\x01\x00\x20' > /dev/ttymxc0

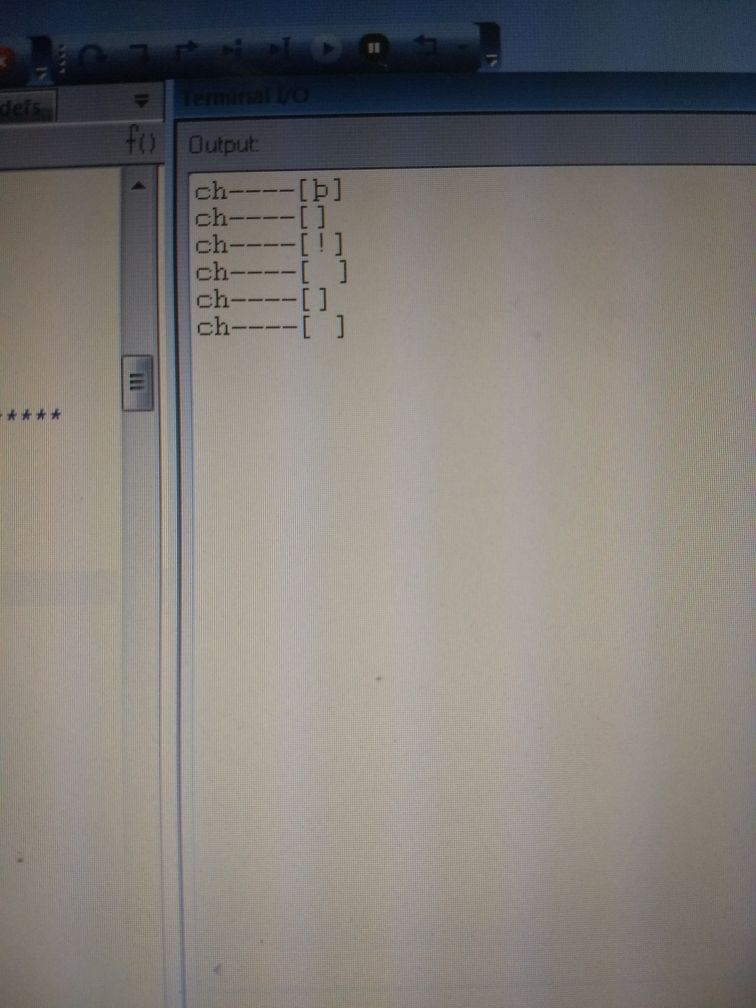

we printed the "ch" from MT_UartProcessZToolData and getting the same as characters in coordinator image(printed the "ch" in terminal console using debugger) and not getting the SYS_PING response. Attaching the sniffer log and screen shot of debugger console.Can you please help to figure out the issue?log_genericapp.zip

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

If you use ZTool to send ping command, does the same ZNP respond it?

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

we are not using znp...generic app in mesh 1.0.0 as coordinator and end device. Is this method is correct?..In which name the response will come under sniffer packets?

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

It’s basically the same. Make sure you use correct baudrate and test it with ZTool first.

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

We have connected serial to usb connector from the coordinator chip and "no devices connected" is showing in ztool. COM port is detected in device manager and configured ztool->settings>serial port as 38400,8N1,RTS/CTS handshake.We have compiled with the following flags.What will be issue?.

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

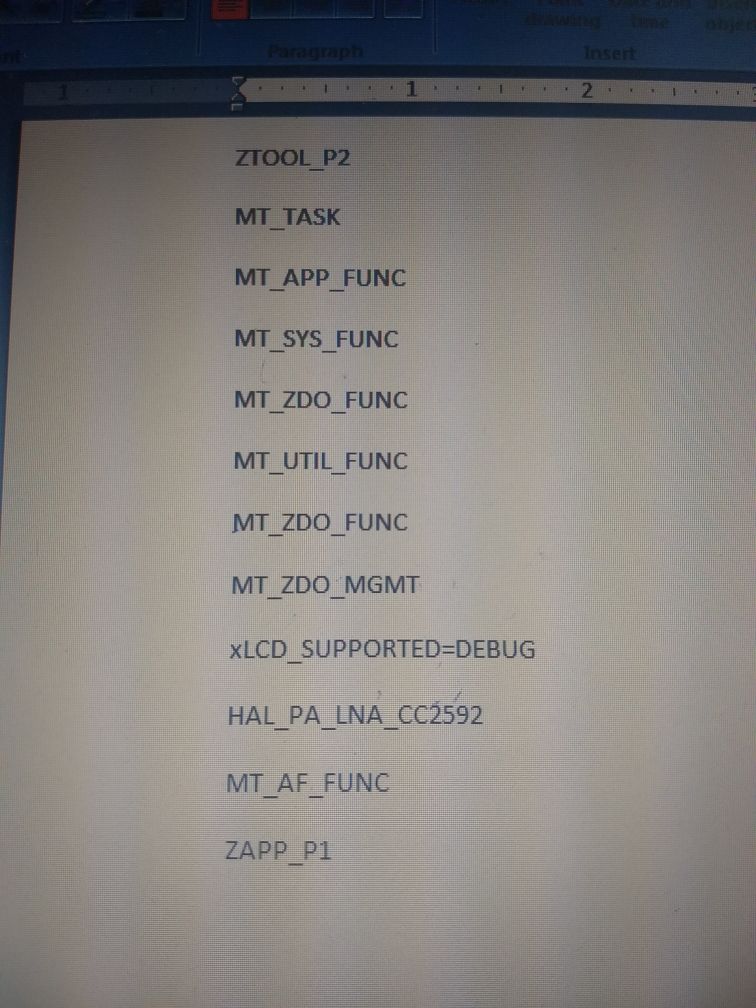

Which pins do you use as UART? I use default UART settings which is ZTOOL_P1 instead of "ZTOOL_P2 and ZAPP_P1" to test with ZTool and my CC2530DK, everthing works fine.

0 sreedevi mohan over 6 years ago in reply to sreedevi mohan

Intellectual 865 points

We tried with removing ZAPP_P1 and changed ZTOOL_P2 to ZTOO_P1.Same issue again.

0 sreedevi mohan over 6 years ago in reply to sreedevi mohan

Intellectual 865 points

we are using Port 0 pin 2---> RX and Port 0 Pin 3----> TX for serial port.(cc2530 and imx6)

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

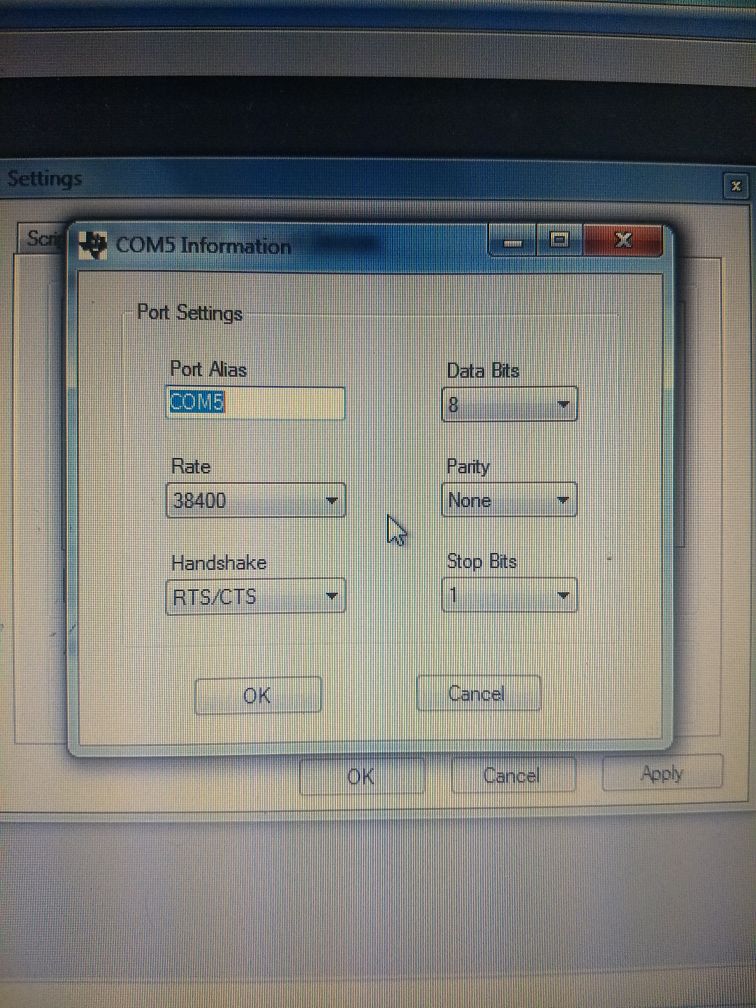

Do you use baudrate 38400 on your ZTool?

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

yes

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

Try to change "#define MT_UART_DEFAULT_OVERFLOW TRUE" to "#define MT_UART_DEFAULT_OVERFLOW FALSE" to rebuild ZNP and set Handshake to none to test again.

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

Tried the same. "No devices found" is showing.

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

Can you take a picture to show me how you connect CC2530 ZNP to your PC?

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

We used serial to usb converter for the same. Three connections took from CC2530 chip and connected to converter as given below.

Rx(Port 0 pin 2) blue wire ---> Tx of converter

TX(Port 0 pin 3) white wire ---> Rx of converter

GND black wire ---> Gnd of converter

Finally the usb side of converter connected to windows pc

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

I suggest you to use scope to check the UART TX/RX pin signal.

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

You want me to check the data is coming through serial port?...It is getting....We got the data that we sent from imx6 to this serial port.We are able to print the same on terminal console while using debugger.

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

Do you mean you can do SYS PING from I.Mx and get feedback from CC2530 but ZTool cannot recognize the same CC2530 ZNP?

0 sreedevi mohan over 6 years ago in reply to YiKai Chen

Intellectual 865 points

Configured the port with 38400 baud rate and we sent SYS_PING command 0xFE 0x00 0x21 0x01 0x20 as per the MT api doc from imx6 side by the following command.

echo -ne '\xFE\x00\x21\x01\x00\x20' > /dev/ttymxc0

we printed the "ch" from MT_UartProcessZToolData and getting the same as characters in coordinator image(printed the "ch" in terminal console using debugger) .

We didn't see any response of cc2530 on sniffer logs from ubiqua.

0 YiKai Chen over 6 years ago in reply to sreedevi mohan

Guru 735695 points

After you send “0xFE 0x00 0x21 0x01 0x20“ from ttymxc0, do you see CC2530 ZNP responds “0xFE 0x02 0x61 0x01 0x11 0x00 0x73“?
