cc2530 binding using z stack

Sebastian P J

Other Parts Discussed in Thread: CC2530, Z-STACK, CC2531, CC2531EMK, MSP430F5438

I have three cc2530 zigbee modules ,zigbee development board by GBAN and cc debugger .I want to know about pairng(binding) two zigbees.

I configured one module as coordinator and other two are routers.

In my development board there is no joystick, so how i pair these devices without having a joystick.............

it has only a ping key in the board connected to p0_1

please help me as soon as possible..................................................................................

over 10 years ago

0 YiKai Chen over 10 years ago

Guru 735685 points

Can you specify which Z-Stack version and example you test?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

Z-Stack Home 1.2.2.42930
Sample light as coordinator and Sample switch as router

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

First step is to make your P0.1 act as SW2 key event. I remember that I had suggest you how SW6 is implemented in hal_key.c last time.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

Thank you sir,
I tried to change the key event several time but unable to understand where i edit the code
please help me sir,

0 Sebastian P J over 10 years ago in reply to Sebastian P J

Expert 1775 points

could you please give me the code.

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

You can find hal_key.c in C:\Texas Instruments\Z-Stack Home 1.2.2.42930\Components\hal\target\CC2530EB.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

sir, i mean, where should i edit in the code(in the file hal_key.c)

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

Since your ping key uses P0.1, press it should send SW6 key event which means you don't have to change hal_key.c. Using SampleLight as example, you can try to change " if ( keys & HAL_KEY_SW_2 )" to " if ( keys & HAL_KEY_SW_6 )" in zclSampleLight_HandleKeys(). Do the same thing to SampleSwitch and you should be able to play with them.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

sir

I made the changes in the code as per your information.now when i am pressing the buttons(long press) on both the boards then leds starts blinking

then i opened the sniffer tool then it shows some becon frames .

is the pairing successful ?

if no , how i identify is it paired?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

If you only see beacon frames, it means you don't do pairing successful. To confirm this, please attach your sniffer log.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

now my sniffer doesn't show any frames
and also the leds doesn't blink when i press the button for a long time
once the sniffer starts then the yellow led glows and when it pauses then no lights are glows,is there any problem with my sniffer?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

Try to remove NV_RESTORE from compile options in both SampleLight and SampleSwtich. Then, test again.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

Please enable TC_LINKKEY_JOIN on both SampleLight and SampleSwitch. Test again and if it still doesn't work, Please attach sniffer log. By the way, do you config SampleLight as coordinator and SampleSwitch as end device in your test?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

3187.data.psd

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

From this sniffer log, your coordinator doesn't work. How do you build your coordinator?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

i edited the PAN id in the f8wConfig.cfg to 1234,
As per your information i edited the code zcl_samplelight.c (SW_2 to SW_6)
Downloaded the program to the zigbee
in the h/w
one switch at p2_0 and one at p0_1
and green led on p1_0,yellow led on p1_4 and a red led on p1_1 respectively

0 Sebastian P J over 10 years ago in reply to Sebastian P J

Expert 1775 points

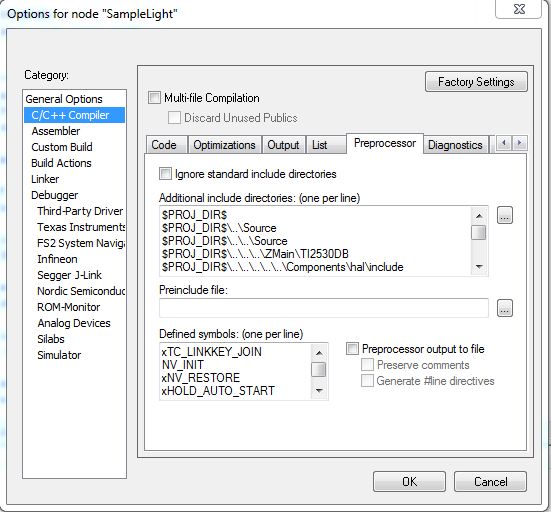

and also the compiler configuration

NV_RESTORE
HOLD_AUTO_START
ZCL_LEVEL_CTRL

to

xNV_RESTORE
xHOLD_AUTO_START
xZCL_LEVEL_CTRL

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

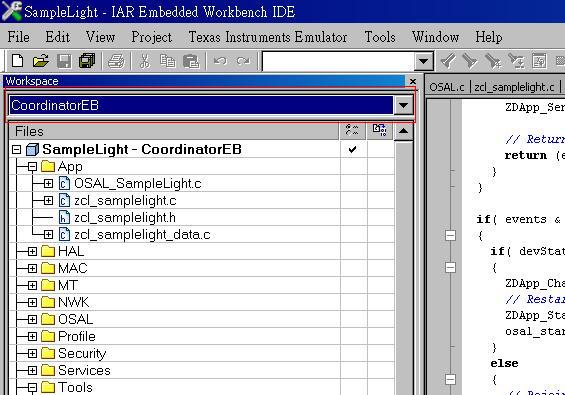

Do you switch SampleLight project to coordinator like the following screen shot?

And, do you config SampleSwitch as end device like the following screen shot?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

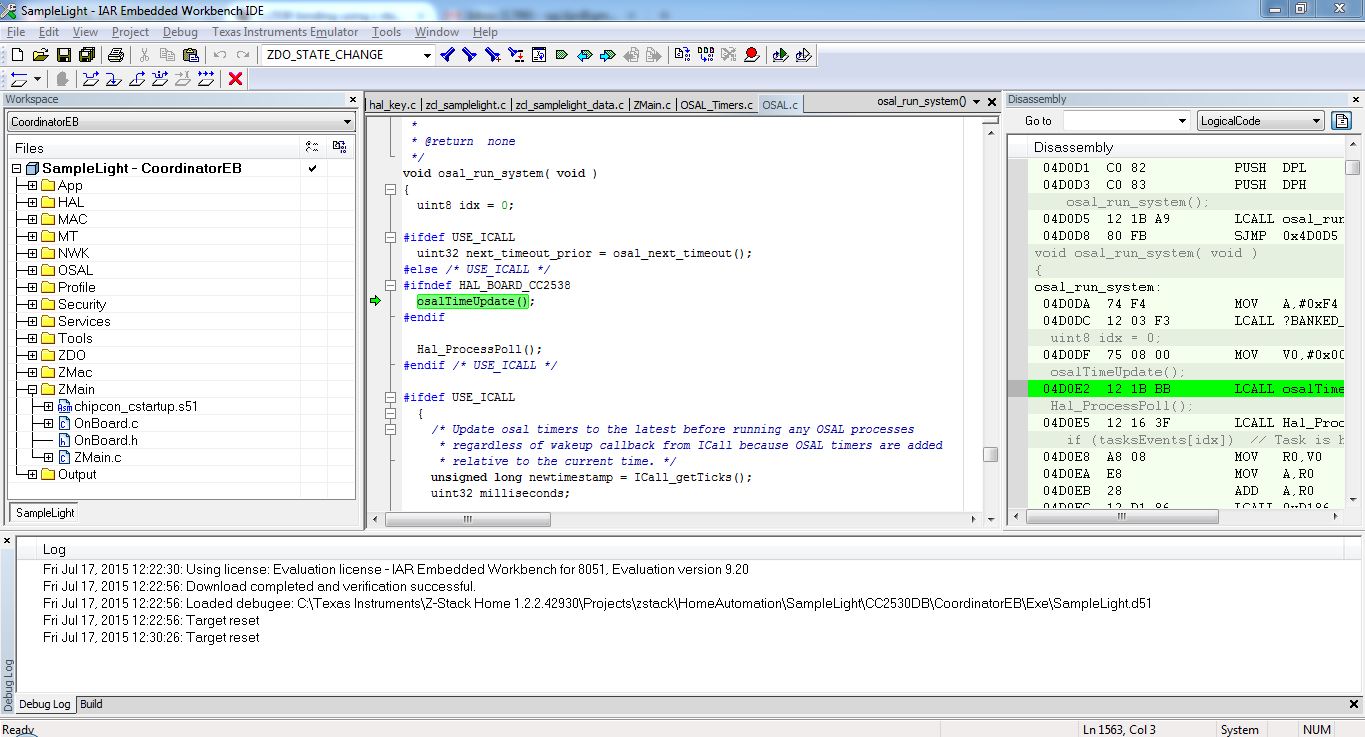

Try to set a breakpoint at "giLightScreenMode = LIGHT_MAINMODE;" in ZDO_STATE_CHANGE case of zclSampleLight_event_loop() and run the debugger. Check if it stop at this breakpoint. If yes, coordinator starts correctly.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

sir when i download the code into the coordinator then green and yellow leds blink once and red led will turn on permenantly

when i starts the sniffer tool and press start button then the yellow led will on and red will off.

and when pauses the sniffer then all leds are off

(to restore to initial condition i will re-download it)

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

I don't have your HW so I cannot judge anything from your LEDs behavior. Please check if the coordinator stops at breakpoint : "giLightScreenMode = LIGHT_MAINMODE;" in ZDO_STATE_CHANGE case of zclSampleLight_event_loop().

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

when i am debugging then the screen will reach at the position as shown in the previous screenshot (also put a break point as u told)

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

Try to remove ZDAppCheckForHoldKey() in ZDApp_Init of ZDApp.c and test again.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

sir

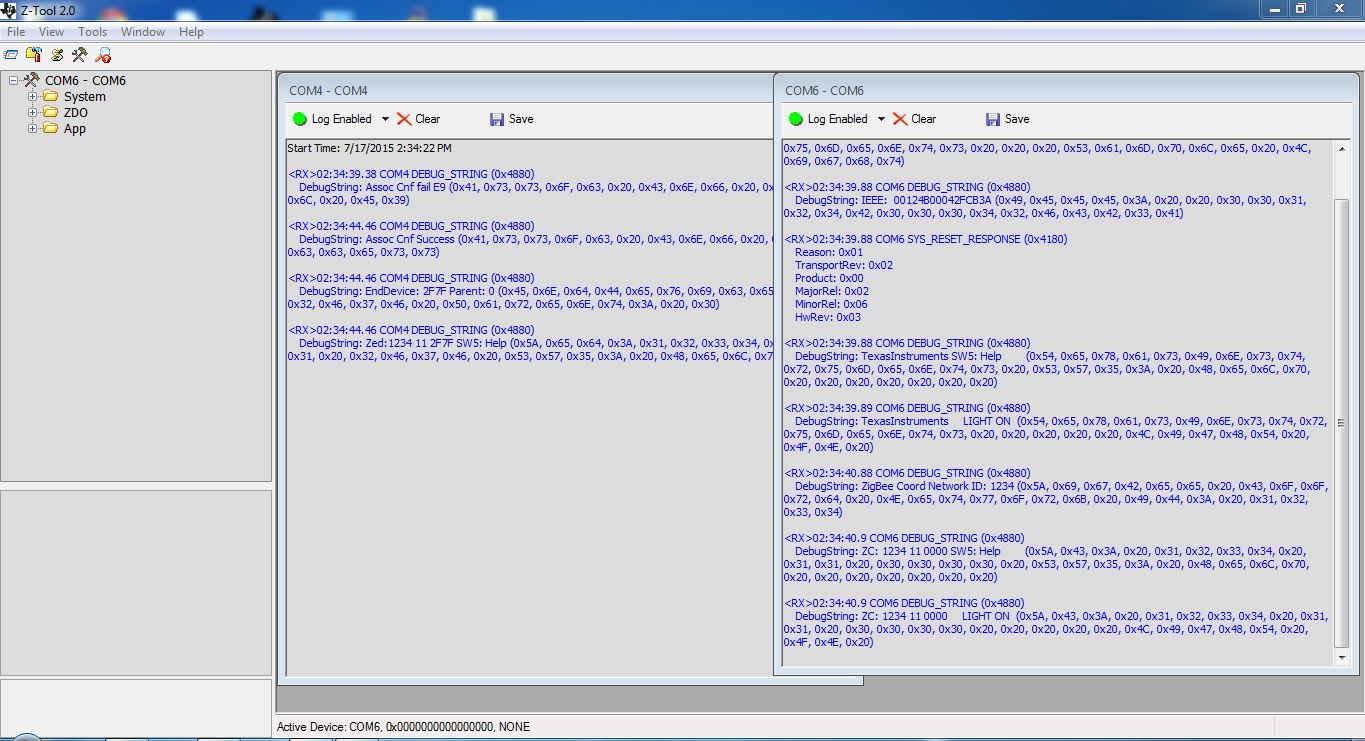

when i am resets the coordinator(COM6) then the end device (COM4) displays as shown above

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

It looks that your SampleSwitch has joined SampleLight. However, I need your sniffer log to confirm this.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

dat.psd

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

Are you sure this is the sniffer log mapped to your screen capture? I don't see SampleSwitch pairs with SampleLight correctly in the sniffer log.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

GB-DEVB+development+board+user+manual_2.pdfsir this is my board's user's manuel

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

What do you want by giving this link?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

i am using this h/w.
so it has some jumper configuration to enable sniffer mode in it .
as per this manuel i made the jumper configuration ,then ....
when i start sniffer somthing happens in my board
i connected led's on p2_0 , p1_4 , p1_0 of the zigbee pins
when i starts sniffer then all led's turn off and only one led which is connected to the 1_4 is turns on
when i disconnect the sniffer then no led is glowing.
usually i am downloading the code again to detect the board in ztool
please help me

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

Do you only have two this boards?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

yes sir

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

Then, I think you need to buy a CC2531 USB dongle or another EVB to do sniffer.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

hi sir,
1.What components are needed to use the packet sniffer?(i have two development boards)
One coordinator module,one router module and a usb dongle ?
is the usb dongle need any flashing of firmware?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

If you buy CC2531EMK, it should preload with Sniffer FW on it.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

then how to communicate it with the two devices(coordinator and router)?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

When you connect CC2531EMK to PC and open TI packet sniffer, it would turn on CC2531EMK RX and keep to sniff messages over the air.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

sir

I have a problem with my ccdebugger

it's led always in red and the pc not detecting this

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

Try to follow section 8.4 Resurrecting the CC Debugger in cc debugger user's guide.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

hi sir

When I am using Sample light as coordinator and sample switch as router,Is there any modification need in the code?

Can you please help me sir

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

Can you specify what help you need?

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

now i am coded one zigbee as coordinator(saple light) and other is End device(sample switch)
i have't made any modification in the code just downloaded.
i want to know,at this condition if i press switch1 on the end device ,what will happend is the led on the coordinator toggles?
or should i make any modification on code?

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

You have to trigger EZ-mode or end device binding before you can press SW1 on SampleSwitch to send toggle command.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

sir in the sample switch ,
HAL_KEY_SW_5
HAL_KEY_SW_4
HAL_KEY_SW_2
HAL_KEY_SW_1
in which pins of zigbee these switches are connected.
i need this information because i am using zigbee development board
please replay ...............................................

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

Those information are in hal_key.c.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

sir

I need a help

I Downloaded some sample codes from the url:

Can you please check these code will work on my cc2530 module

please help me soon

0 YiKai Chen over 10 years ago in reply to Sebastian P J

Guru 735685 points

I don't have the module you are testing so I don't know how to suggest.

0 Sebastian P J over 10 years ago in reply to YiKai Chen

Expert 1775 points

hi sir

Now i am decided to connect the coordinator to arduino uno .

How can i send commands from arduino to configure(setting panid,channel,clusterid,etc..)the zigbee device?

If it possible please tell me how can i done this

Regards

Sebastian
