CC2640: cc2640 IAR Failed to halt after bootloader 1

David Hsueh

Intellectual 520 points

Part Number: CC2640
Other Parts Discussed in Thread: BLE-STACK

I have problem with iar and xds100v3.

I connected TMS, TCK, VDD(Volteage detect), GND & nReset pin.

FlashProgramer2 is OK, but IAR get Error(Fatal Error:Failed to halt after bootloader 1 )

Why is this happening ?

How can i fix it?

over 8 years ago

0 Christin Lee over 8 years ago

TI__Guru 56405 points

Can you provide the CC2640 chip revision and IAR version you are using?

0 David Hsueh over 8 years ago in reply to Christin Lee

Intellectual 520 points

cc2640 Chip revision: 2.3
IAR for ARM 7.40.3.8938

Debug Log as below

Fri Feb 03, 2017 21:46:33: Loaded macro file: C:\Program Files (x86)\IAR Systems\Embedded Workbench 7.2\arm\config\debugger\TexasInstruments\CC26xx.dmac
Fri Feb 03, 2017 21:46:33: Loaded macro file: C:\Program Files (x86)\IAR Systems\Embedded Workbench 7.2\arm\config\flashloader\TexasInstruments\FlashCC26xx.mac
Fri Feb 03, 2017 21:46:33: Connecting to TI XDS100 (Probe no: 0607ZDXM)
Fri Feb 03, 2017 21:46:39: TI XDS ARM, device revision: 0x00000001, big endian: false, cache: false, board revision: 0x00000000, driver revision: 0x0B020200
Fri Feb 03, 2017 21:46:46: Fatal error: Failed to halt after bootloader 1 Session aborted!
Fri Feb 03, 2017 21:46:46: Unloaded macro file: C:\Program Files (x86)\IAR Systems\Embedded Workbench 7.2\arm\config\flashloader\TexasInstruments\FlashCC26xx.mac

0 Christin Lee over 8 years ago in reply to David Hsueh

TI__Guru 56405 points

Are you using CPU reset or Board reset?

BTW, which BLE stack are you using? It's not relevant to what you are seeing, but I would recommend you to start at our newest BLE stack for CC2640. The newest BLE stack require IAR 7.70.

0 David Hsueh over 8 years ago in reply to Christin Lee

Intellectual 520 points

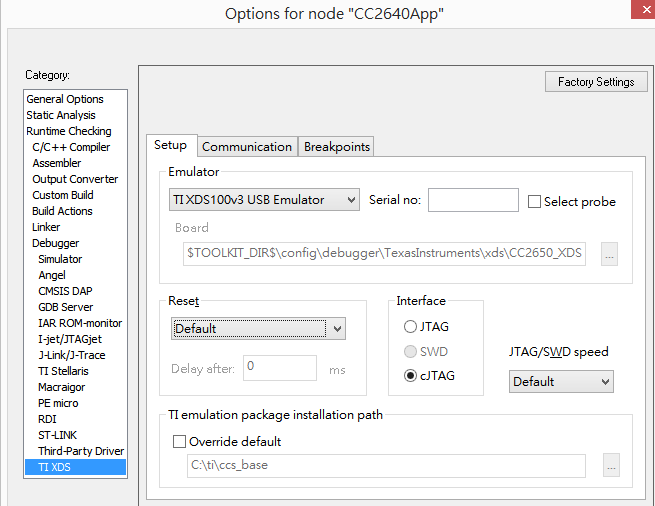

Option of Reset is Default.(as below)

BLE-Stack Version is ble_cc26xx_2_01_01_44627.

This Error has not happened on IAR7.8! But I get the warning as below

Sun Feb 05, 2017 00:44:06: Warning: Failed to halt at 0x0000EE10 after bootloader, forced stop at 0x1001BBD6

Is it right?

0 YiKai Chen over 8 years ago in reply to David Hsueh

Guru 735695 points

Try to use IAR EWARM 7.40 to build examples of BLE Stack 2.1.1.

0 David Hsueh over 8 years ago in reply to YiKai Chen

Intellectual 520 points

YiKai Chen said:
Try to use IAR EWARM 7.40 to build examples of BLE Stack 2.1.1.

I cannot find IAR for ARM 7.4, but I can debug on IAR 7.8.

I get a message( as below) on IAR7.8 when opening project that developing on old version(7.2)

does this conversion impact my project? what should I do when changing from IAR7.2 to IAR7.8?

0 YiKai Chen over 8 years ago in reply to David Hsueh

Guru 735695 points

You can download IAR EWARM 7.40.2 from www.iar.com/.../

0 Christin Lee over 8 years ago in reply to David Hsueh

TI__Guru 56405 points

Since you are only at development stage, I would recommend you to start with our newest BLE stack 2.2.1, which can be downloaded from ti.com/ble-stack

0 David Hsueh over 8 years ago in reply to YiKai Chen

Intellectual 520 points

After re-install IAR7.4, I can enter debug mode.

Thank u!!

0 YiKai Chen over 8 years ago in reply to David Hsueh

Guru 735695 points

You are welcome and it's good to know it works now.
