Part Number: CC2650MODA
Other Parts Discussed in Thread: CC2650STK
Tool/software: Code Composer Studio
Hello all,
I am trying to add I2C driver in simple_peripheral project for CC2650MODA.
1. Firstly I have made changes in board files for simple_peripheral, compiled - build - debug, SUCCESS (able to discover CC2650MOD on mobile app).
2. Then I added I2C driver folder in "Driver " section, Sensor folder in Middleware, added required header files " .h ", solved all compile queries, compiled - build - debug, Success (able to discover CC2650MOD Aon mobile app).
3. Then I added SensorI2C_open() in SimpleBLEPeripheral_init, compiled - build - debug, UnSuccess (Not able to discover CC2650MODA on mobile app).
4. To solve this I commented line " // i2cHandle = I2C_open(Board_I2C, &i2cParams);" from SensorI2C_open function, compiled - build - debug, Success (able to discover CC2650MODAon mobile app).
So, problem is in file "I2C_Handle.c" - function "I2C_open(unsigned int index, I2C_Params *params)" on line
return (handle->fxnTablePtr->openFxn(handle, params));
When I press Ctrl+Left_Mouse_Button, (Expected is to open definition of function) , instead it gives error as

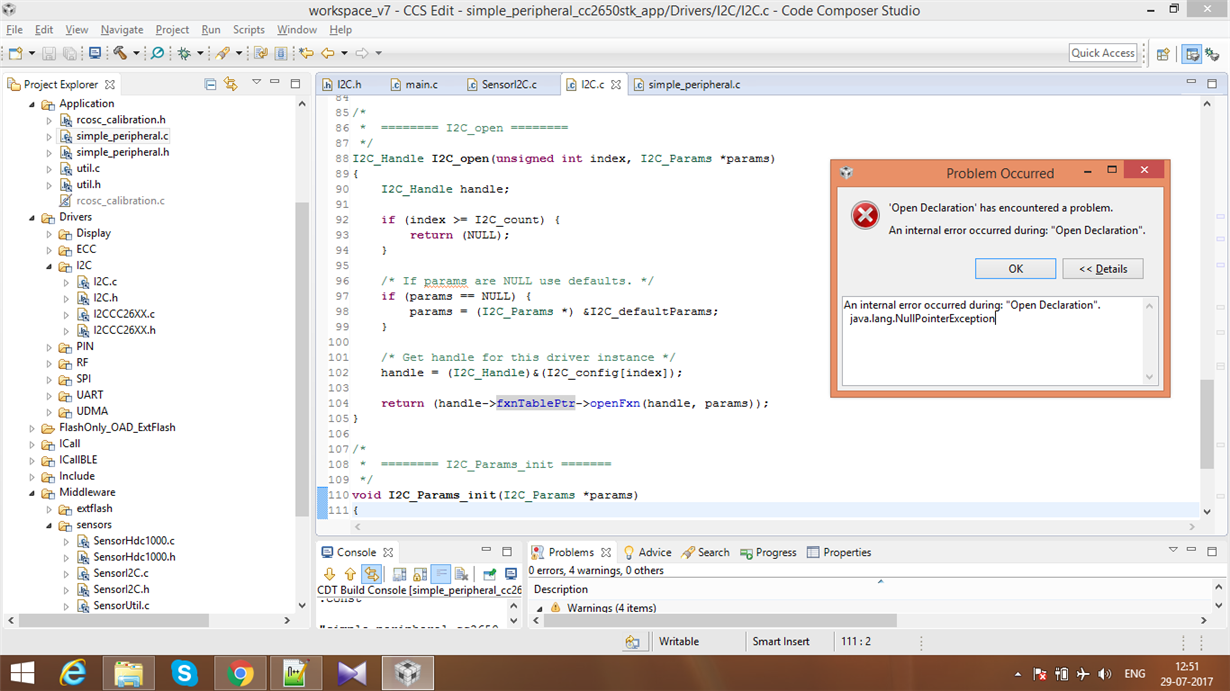

"An internal error occurred during: "Open Declaration.
java.lang.NullPointerException" Please find attached image and board files for reference."
I this application is getting crashed over here...
Can anyone help in solving this?
/*

* Copyright (c) 2015-2016, Texas Instruments Incorporated
* All rights reserved.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
*
* * Redistributions of source code must retain the above copyright
* notice, this list of conditions and the following disclaimer.
*
* * Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in the
* documentation and/or other materials provided with the distribution.
*
* * Neither the name of Texas Instruments Incorporated nor the names of
* its contributors may be used to endorse or promote products derived
* from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
* AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
* THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
* PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
* CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
* EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
* PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
* OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
* WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
* OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
* EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/
/*
* ====================== CC2650STK.c =========================================
* This file is responsible for setting up the board specific items for the
* CC2650 SensorTag.
*/
/*
* ====================== Includes ============================================
*/
#include <xdc/std.h>
#include <xdc/runtime/System.h>
#include <ti/sysbios/family/arm/m3/Hwi.h>
#include <ti/drivers/PIN.h>
#include <ti/drivers/pin/PINCC26XX.h>
#include <ti/drivers/Power.h>
#include <ti/drivers/power/PowerCC26XX.h>
#include <inc/hw_memmap.h>
#include <inc/hw_ints.h>
#include <driverlib/ioc.h>
#include <driverlib/udma.h>
#include "Board.h"
/*
* ========================= IO driver initialization =========================
* From main, PIN_init(BoardGpioInitTable) should be called to setup safe
* settings for this board.
* When a pin is allocated and then de-allocated, it will revert to the state
* configured in this table.
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(BoardGpioInitTable, ".const:BoardGpioInitTable")
#pragma DATA_SECTION(PINCC26XX_hwAttrs, ".const:PINCC26XX_hwAttrs")
#endif
const PIN_Config BoardGpioInitTable[] = {
Board_STK_LED1 | PIN_GPIO_OUTPUT_EN | PIN_GPIO_LOW | PIN_PUSHPULL | PIN_DRVSTR_MAX, /* LED initially off */
Board_STK_LED2 | PIN_GPIO_OUTPUT_EN | PIN_GPIO_LOW | PIN_PUSHPULL | PIN_DRVSTR_MAX, /* LED initially off */
Board_KEY_LEFT | PIN_INPUT_EN | PIN_PULLUP | PIN_IRQ_BOTHEDGES | PIN_HYSTERESIS, /* Button is active low */
Board_KEY_RIGHT | PIN_INPUT_EN | PIN_PULLUP | PIN_IRQ_BOTHEDGES | PIN_HYSTERESIS, /* Button is active low */
Board_RELAY | PIN_INPUT_EN | PIN_PULLDOWN | PIN_IRQ_BOTHEDGES | PIN_HYSTERESIS, /* Relay is active high */
Board_MPU_INT | PIN_INPUT_EN | PIN_PULLDOWN | PIN_IRQ_NEGEDGE | PIN_HYSTERESIS, /* MPU_INT is active low */
Board_TMP_RDY | PIN_INPUT_EN | PIN_PULLUP | PIN_HYSTERESIS, /* TMP_RDY is active high */
Board_BUZZER | PIN_GPIO_OUTPUT_EN | PIN_GPIO_LOW | PIN_PUSHPULL | PIN_DRVSTR_MAX, /* Buzzer initially off */
Board_MPU_POWER | PIN_GPIO_OUTPUT_EN | PIN_GPIO_HIGH | PIN_PUSHPULL | PIN_DRVSTR_MAX, /* MPU initially on */
Board_MIC_POWER | PIN_GPIO_OUTPUT_EN | PIN_GPIO_LOW | PIN_PUSHPULL | PIN_DRVSTR_MIN, /* MIC initially off */
Board_SPI_FLASH_CS | PIN_GPIO_OUTPUT_EN | PIN_GPIO_HIGH | PIN_PUSHPULL | PIN_DRVSTR_MIN, /* External flash chip select */
Board_SPI_DEVPK_CS | PIN_GPIO_OUTPUT_EN | PIN_GPIO_LOW | PIN_PUSHPULL | PIN_DRVSTR_MIN, /* DevPack chip select */
Board_AUDIO_DI | PIN_INPUT_EN | PIN_PULLDOWN, /* Audio DI */
Board_AUDIODO | PIN_GPIO_OUTPUT_EN | PIN_GPIO_HIGH | PIN_PUSHPULL | PIN_DRVSTR_MIN, /* Audio data out */
Board_AUDIO_CLK | PIN_INPUT_EN | PIN_PULLDOWN, /* DevPack */
Board_DP2 | PIN_INPUT_EN | PIN_PULLDOWN, /* DevPack */
Board_DP1 | PIN_INPUT_EN | PIN_PULLDOWN, /* DevPack */
Board_DP0 | PIN_INPUT_EN | PIN_PULLDOWN, /* DevPack */
Board_DP3 | PIN_INPUT_EN | PIN_PULLDOWN, /* DevPack */
Board_UART_RX | PIN_INPUT_EN | PIN_PULLDOWN, /* DevPack */
Board_UART_TX | PIN_GPIO_OUTPUT_EN | PIN_GPIO_HIGH | PIN_PUSHPULL, /* DevPack */
Board_DEVPK_ID | PIN_INPUT_EN | PIN_NOPULL, /* Device pack ID - external PU */
Board_SPI0_MOSI | PIN_INPUT_EN | PIN_PULLDOWN, /* SPI master out - slave in */
Board_SPI0_MISO | PIN_INPUT_EN | PIN_PULLDOWN, /* SPI master in - slave out */
Board_SPI0_CLK | PIN_INPUT_EN | PIN_PULLDOWN, /* SPI clock */
PIN_TERMINATE
};
const PINCC26XX_HWAttrs PINCC26XX_hwAttrs = {
.intPriority = ~0,
.swiPriority = 0
};
/*============================================================================*/
/*
* ============================= Power begin ==================================
*/
const PowerCC26XX_Config PowerCC26XX_config = {
.policyInitFxn = NULL,
.policyFxn = &PowerCC26XX_standbyPolicy,
.calibrateFxn = &PowerCC26XX_calibrate,
.enablePolicy = TRUE,
.calibrateRCOSC_LF = TRUE,
.calibrateRCOSC_HF = TRUE,
};
/*
* ============================= Power end ===================================
*/
/*
* ============================= UART begin ===================================
*/
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(UART_config, ".const:UART_config")
#pragma DATA_SECTION(uartCC26XXHWAttrs, ".const:uartCC26XXHWAttrs")
#endif
/* Include drivers */
#include <ti/drivers/UART.h>
#include <ti/drivers/uart/UARTCC26XX.h>
/* UART objects */
UARTCC26XX_Object uartCC26XXObjects[CC2650STK_UARTCOUNT];
/* UART hardware parameter structure, also used to assign UART pins */
const UARTCC26XX_HWAttrsV1 uartCC26XXHWAttrs[CC2650STK_UARTCOUNT] = {
{
.baseAddr = UART0_BASE,
.powerMngrId = PowerCC26XX_PERIPH_UART0,
.intNum = INT_UART0_COMB,
.intPriority = ~0,
.swiPriority = 0,
.txPin = Board_UART_TX,
.rxPin = Board_UART_RX,
.ctsPin = PIN_UNASSIGNED,
.rtsPin = PIN_UNASSIGNED
}
};
/* UART configuration structure */
const UART_Config UART_config[] = {
{
.fxnTablePtr = &UARTCC26XX_fxnTable,
.object = &uartCC26XXObjects[0],
.hwAttrs = &uartCC26XXHWAttrs[0]
},
{NULL, NULL, NULL}
};
/*
* ============================= UART end =====================================
*/
/*
* ============================= UDMA begin ===================================
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(UDMACC26XX_config, ".const:UDMACC26XX_config")
#pragma DATA_SECTION(udmaHWAttrs, ".const:udmaHWAttrs")
#endif
/* Include drivers */
#include <ti/drivers/dma/UDMACC26XX.h>
/* UDMA objects */
UDMACC26XX_Object udmaObjects[CC2650STK_UDMACOUNT];
/* UDMA configuration structure */
const UDMACC26XX_HWAttrs udmaHWAttrs[CC2650STK_UDMACOUNT] = {
{
.baseAddr = UDMA0_BASE,
.powerMngrId = PowerCC26XX_PERIPH_UDMA,
.intNum = INT_DMA_ERR,
.intPriority = ~0
}
};
/* UDMA configuration structure */
const UDMACC26XX_Config UDMACC26XX_config[] = {
{
.object = &udmaObjects[0],
.hwAttrs = &udmaHWAttrs[0]
},
{NULL, NULL}
};
/*
* ============================= UDMA end =====================================
*/
/*
* ========================== SPI DMA begin ===================================
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(SPI_config, ".const:SPI_config")
#pragma DATA_SECTION(spiCC26XXDMAHWAttrs, ".const:spiCC26XXDMAHWAttrs")
#endif
/* Include drivers */
#include <ti/drivers/spi/SPICC26XXDMA.h>
/* SPI objects */
SPICC26XXDMA_Object spiCC26XXDMAObjects[CC2650STK_SPICOUNT];
/* SPI configuration structure, describing which pins are to be used */
const SPICC26XXDMA_HWAttrsV1 spiCC26XXDMAHWAttrs[CC2650STK_SPICOUNT] = {
{
.baseAddr = SSI0_BASE,
.intNum = INT_SSI0_COMB,
.intPriority = ~0,
.swiPriority = 0,
.powerMngrId = PowerCC26XX_PERIPH_SSI0,
.defaultTxBufValue = 0,
.rxChannelBitMask = 1<<UDMA_CHAN_SSI0_RX,
.txChannelBitMask = 1<<UDMA_CHAN_SSI0_TX,
.mosiPin = Board_SPI0_MOSI,
.misoPin = Board_SPI0_MISO,
.clkPin = Board_SPI0_CLK,
.csnPin = Board_SPI0_CSN
},
{
.baseAddr = SSI1_BASE,
.intNum = INT_SSI1_COMB,
.intPriority = ~0,
.swiPriority = 0,
.powerMngrId = PowerCC26XX_PERIPH_SSI1,
.defaultTxBufValue = 0,
.rxChannelBitMask = 1<<UDMA_CHAN_SSI1_RX,
.txChannelBitMask = 1<<UDMA_CHAN_SSI1_TX,
.mosiPin = Board_SPI1_MOSI,
.misoPin = Board_SPI1_MISO,
.clkPin = Board_SPI1_CLK,
.csnPin = Board_SPI1_CSN
}
};
/* SPI configuration structure */
const SPI_Config SPI_config[] = {
{
.fxnTablePtr = &SPICC26XXDMA_fxnTable,
.object = &spiCC26XXDMAObjects[0],
.hwAttrs = &spiCC26XXDMAHWAttrs[0]
},
{
.fxnTablePtr = &SPICC26XXDMA_fxnTable,
.object = &spiCC26XXDMAObjects[1],
.hwAttrs = &spiCC26XXDMAHWAttrs[1]
},
{NULL, NULL, NULL}
};
/*
* ========================== SPI DMA end =====================================
*/
/*
* ============================= I2C Begin=====================================
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(I2C_config, ".const:I2C_config")
#pragma DATA_SECTION(i2cCC26xxHWAttrs, ".const:i2cCC26xxHWAttrs")
#endif
/* Include drivers */
#include <ti/drivers/i2c/I2CCC26XX.h>
/* I2C objects */
I2CCC26XX_Object i2cCC26xxObjects[CC2650STK_I2CCOUNT];
/* I2C configuration structure, describing which pins are to be used */
const I2CCC26XX_HWAttrsV1 i2cCC26xxHWAttrs[CC2650STK_I2CCOUNT] = {
{
.baseAddr = I2C0_BASE,
.powerMngrId = PowerCC26XX_PERIPH_I2C0,
.intNum = INT_I2C_IRQ,
.intPriority = ~0,
.swiPriority = 0,
.sdaPin = Board_I2C0_SDA0,
.sclPin = Board_I2C0_SCL0,
}
};
const I2C_Config I2C_config[] = {
{
.fxnTablePtr = &I2CCC26XX_fxnTable,
.object = &i2cCC26xxObjects[0],
.hwAttrs = &i2cCC26xxHWAttrs[0]
},
{NULL, NULL, NULL}
};
/*
* ========================== I2C end =========================================
*/
/*
* ========================== Crypto begin ====================================
* NOTE: The Crypto implementation should be considered experimental
* and not validated!
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(CryptoCC26XX_config, ".const:CryptoCC26XX_config")
#pragma DATA_SECTION(cryptoCC26XXHWAttrs, ".const:cryptoCC26XXHWAttrs")
#endif
/* Include drivers */
#include <ti/drivers/crypto/CryptoCC26XX.h>
/* Crypto objects */
CryptoCC26XX_Object cryptoCC26XXObjects[CC2650STK_CRYPTOCOUNT];
/* Crypto configuration structure, describing which pins are to be used */
const CryptoCC26XX_HWAttrs cryptoCC26XXHWAttrs[CC2650STK_CRYPTOCOUNT] = {
{
.baseAddr = CRYPTO_BASE,
.powerMngrId = PowerCC26XX_PERIPH_CRYPTO,
.intNum = INT_CRYPTO_RESULT_AVAIL_IRQ,
.intPriority = ~0,
}
};
/* Crypto configuration structure */
const CryptoCC26XX_Config CryptoCC26XX_config[] = {
{
.object = &cryptoCC26XXObjects[0],
.hwAttrs = &cryptoCC26XXHWAttrs[0]
},
{NULL, NULL}
};
/*
* ========================== Crypto end ======================================
*/
/*
* ============================= PDM begin ====================================
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(PDMCC26XX_config, ".const:PDMCC26XX_config")
#pragma DATA_SECTION(pdmCC26XXHWAttrs, ".const:pdmCC26XXHWAttrs")
#pragma DATA_SECTION(PDMCC26XX_I2S_config, ".const:PDMCC26XX_I2S_config")
#endif
/* Include drivers */
#include <ti/drivers/pdm/PDMCC26XX.h>
#include <ti/drivers/pdm/PDMCC26XX_util.h>
/* PDM objects, one for PDM driver, one for PDM/I2S helper file */
PDMCC26XX_Object pdmCC26XXObjects[CC2650STK_PDMCOUNT];
PDMCC26XX_I2S_Object pdmCC26XXI2SObjects[CC2650STK_PDMCOUNT];
/* PDM driver hardware attributes */
const PDMCC26XX_HWAttrs pdmCC26XXHWAttrs[CC2650STK_PDMCOUNT] = {
{
.micPower = Board_MIC_POWER,
.taskPriority = 2
}
};
/* PDM configuration structure */
const PDMCC26XX_Config PDMCC26XX_config[] = {
{
.object = &pdmCC26XXObjects[0],
.hwAttrs = &pdmCC26XXHWAttrs[0]
}
};
/* PDM_I2S hardware attributes */
const PDMCC26XX_I2S_HWAttrs pdmC26XXI2SHWAttrs[CC2650STK_PDMCOUNT] = {
{
.baseAddr = I2S0_BASE,
.intNum = INT_I2S_IRQ,
.powerMngrId = PowerCC26XX_PERIPH_I2S,
.intPriority = ~0,
.mclkPin = PIN_UNASSIGNED,
.bclkPin = Board_AUDIO_CLK,
.wclkPin = PIN_UNASSIGNED,
.ad0Pin = Board_AUDIO_DI,
}
};
/* PDM_I2S configuration structure */
const PDMCC26XX_I2S_Config PDMCC26XX_I2S_config[] = {
{
.object = &pdmCC26XXI2SObjects[0],
.hwAttrs = &pdmC26XXI2SHWAttrs[0]
},
{ NULL, NULL }
};
/*
* ============================= PDM end ======================================
*/
/*
* ========================= RF driver begin ==================================
*/
/* Include drivers */
#include <ti/drivers/rf/RF.h>
/* RF hwi and swi priority */
const RFCC26XX_HWAttrs RFCC26XX_hwAttrs = {
.hwiCpe0Priority = ~0,
.hwiHwPriority = ~0,
.swiCpe0Priority = 5,
.swiHwPriority = 5,
};
/*
* ========================== RF driver end ===================================
*/
/*
* ========================= Display begin ====================================
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(Display_config, ".const:Display_config")
#pragma DATA_SECTION(displaySharpHWattrs, ".const:displaySharpHWattrs")
#pragma DATA_SECTION(displayUartHWAttrs, ".const:displayUartHWAttrs")
#endif
#include <ti/mw/display/Display.h>
#include <ti/mw/display/DisplaySharp.h>
#include <ti/mw/display/DisplayUart.h>
/* Structures for UartPlain Blocking */
DisplayUart_Object displayUartObject;
#ifndef BOARD_DISPLAY_UART_STRBUF_SIZE
#define BOARD_DISPLAY_UART_STRBUF_SIZE 128
#endif
static char uartStringBuf[BOARD_DISPLAY_UART_STRBUF_SIZE];
const DisplayUart_HWAttrs displayUartHWAttrs = {
.uartIdx = Board_UART,
.baudRate = 115200,
.mutexTimeout = BIOS_WAIT_FOREVER,
.strBuf = uartStringBuf,
.strBufLen = BOARD_DISPLAY_UART_STRBUF_SIZE,
};
/* Structures for SHARP */
DisplaySharp_Object displaySharpObject;
#ifndef BOARD_DISPLAY_SHARP_SIZE
#define BOARD_DISPLAY_SHARP_SIZE 96 // 96->96x96 is the most common board, alternative is 128->128x128.
#endif
static uint8_t sharpDisplayBuf[BOARD_DISPLAY_SHARP_SIZE * BOARD_DISPLAY_SHARP_SIZE / 8];
const DisplaySharp_HWAttrs displaySharpHWattrs = {
.spiIndex = Board_SPI0,
.csPin = Board_LCD_CS,
.extcominPin = Board_LCD_EXTCOMIN,
.powerPin = Board_LCD_POWER,
.enablePin = Board_LCD_ENABLE,
.pixelWidth = BOARD_DISPLAY_SHARP_SIZE,
.pixelHeight = BOARD_DISPLAY_SHARP_SIZE,
.displayBuf = sharpDisplayBuf,
};
/* As the pins for UART and Watch Devpack conflict, prefer UART by default */
#if !defined(BOARD_DISPLAY_EXCLUDE_UART) && !defined(BOARD_DISPLAY_EXCLUDE_LCD)
# define BOARD_DISPLAY_EXCLUDE_LCD
#endif
/* Array of displays */
const Display_Config Display_config[] = {
#if !defined(BOARD_DISPLAY_EXCLUDE_UART)
{
.fxnTablePtr = &DisplayUart_fxnTable,
.object = &displayUartObject,
.hwAttrs = &displayUartHWAttrs,
},
#endif
#if !defined(BOARD_DISPLAY_EXCLUDE_LCD)
{
.fxnTablePtr = &DisplaySharp_fxnTable,
.object = &displaySharpObject,
.hwAttrs = &displaySharpHWattrs
},
#endif
{ NULL, NULL, NULL } // Terminator
};
/*
* ========================= Display end ======================================
*/
