Reset CC2530 from all Coordinators

Jack Loop

Other Parts Discussed in Thread: CC2530

Hello,

How would I program my CC530 board to be reset from all coordinators. Right I have a CC2530 connected to 1 coordinator. I wanted to connect the CC2530 to the 2nd coordinator, so I unpowered the 1st coordinator without properly disconnecting the CC2530. I powered the 2nd coordinator and tried to connect my CC2530 to the 2nd coordinator. However the CC2530 doesn't connect to the 2nd coordinator and still has its mind set on the 1st coordinator. How would I reset the CC2530 so that it would forget about all of its connections with previous coordinators? I am currently using SampleLight in IAR 8051. I would very much appreciate any helpful replies.

over 9 years ago

0 YiKai Chen over 9 years ago

Guru 735685 points

You have to implement a factory reset button and trigger the following code when button is pressed.

zgWriteStartupOptions(ZG_STARTUP_SET, (ZCD_STARTOPT_DEFAULT_NETWORK_STATE | ZCD_STARTOPT_DEFAULT_CONFIG_STATE) );
ZDApp_ResetTimerStart(2000);

0 Jack Loop over 9 years ago in reply to YiKai Chen

Guru 17870 points

Would I implement this code in zcl_samplelight.c? Which function should I place it in? Is this all the code I need to do?

0 YiKai Chen over 9 years ago in reply to Jack Loop

Guru 735685 points

If you use SampleLight, you can put those code in zclSampleLight_HandleKeys of zcl_samplelight.c.

0 Jack Loop over 9 years ago in reply to YiKai Chen

Guru 17870 points

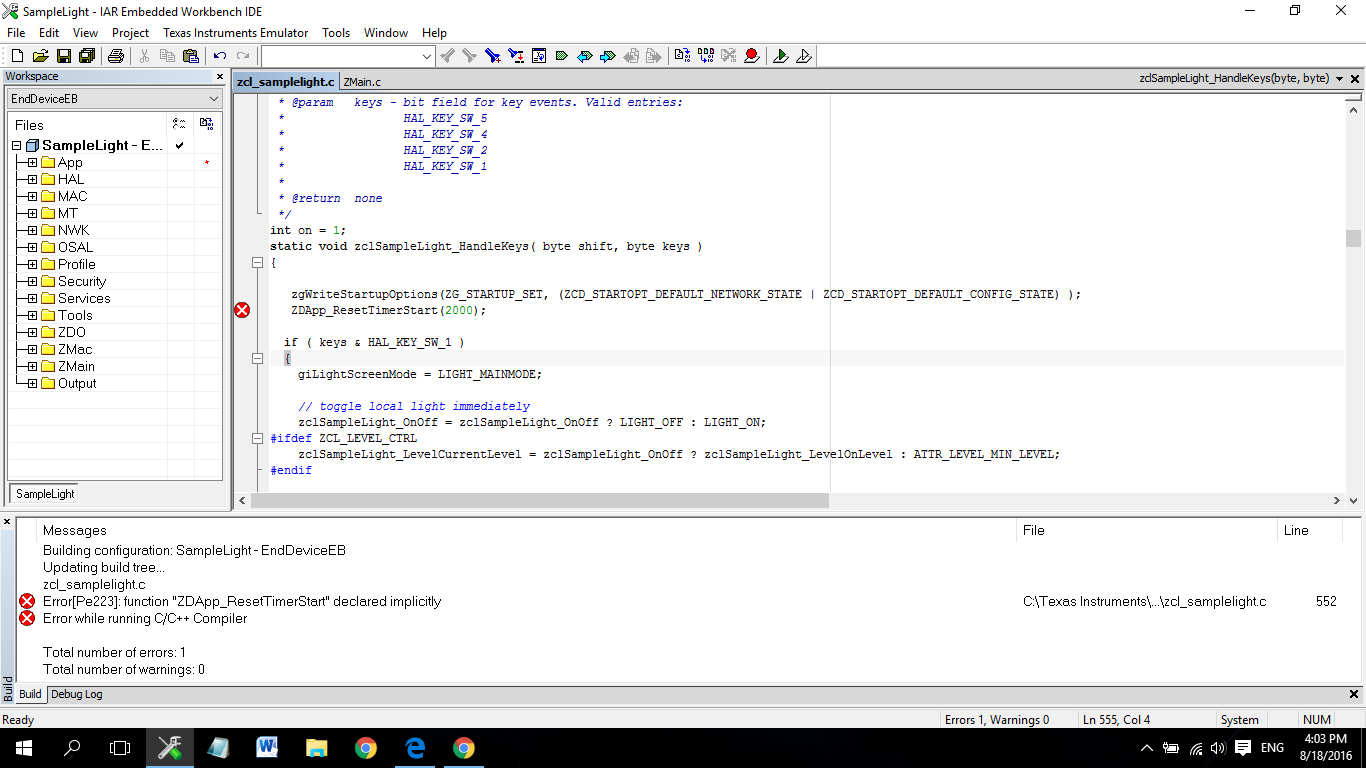

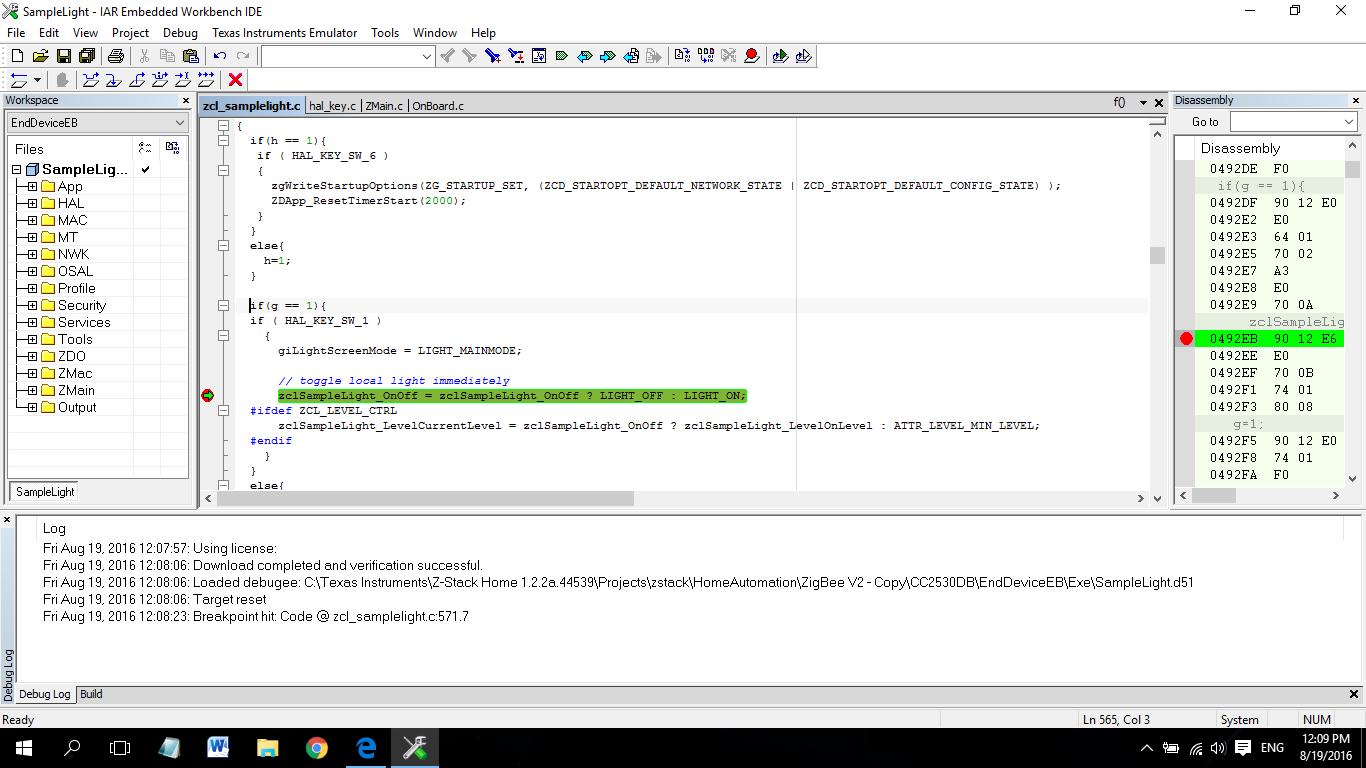

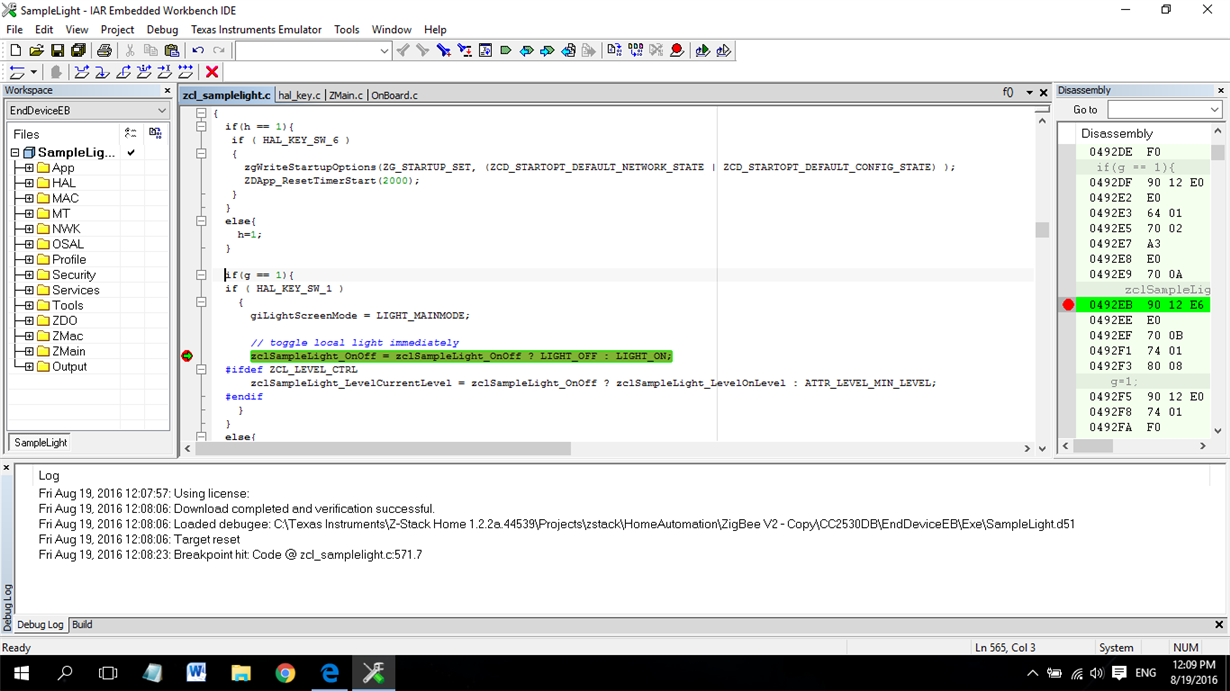

I get an error in the below picture. What would I do to fix this? Also do these 2 lines of code use button 2 (P1_2)? If not how do I adjust the code to use P1_2 for the reset button?

0 YiKai Chen over 9 years ago in reply to Jack Loop

Guru 735685 points

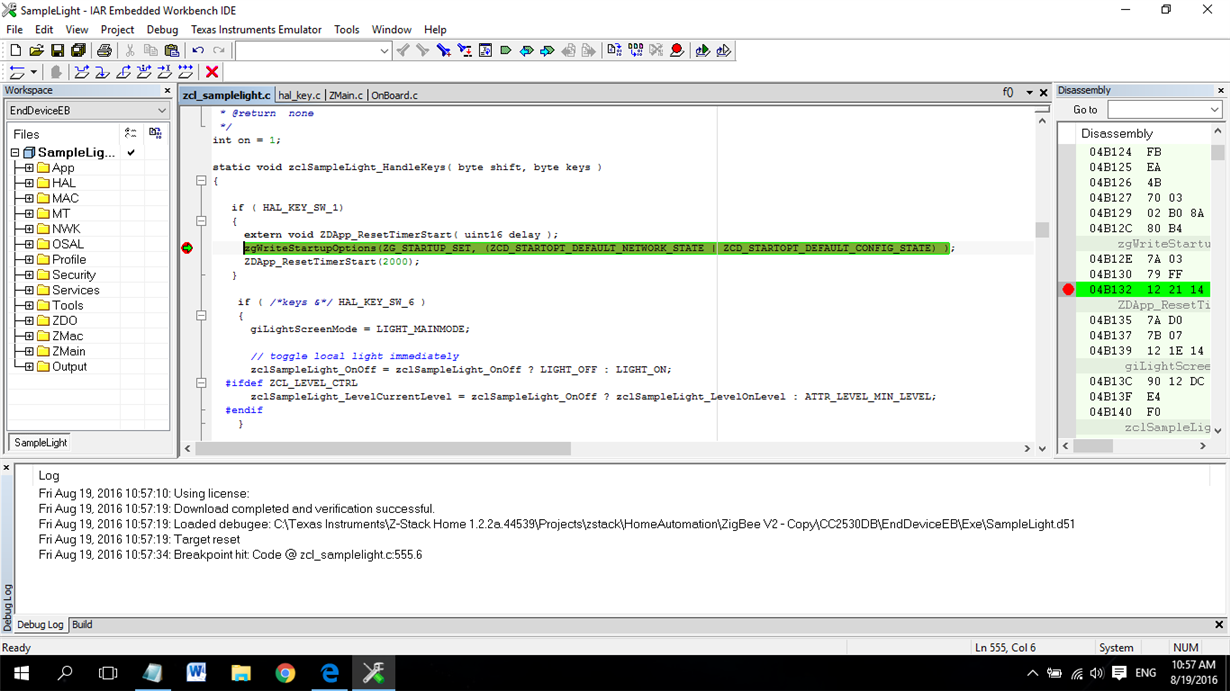

You can add "extern void ZDApp_ResetTimerStart( uint16 delay );" in your zcl_samplelight.c to fix this error.

0 Jack Loop over 9 years ago in reply to YiKai Chen

Guru 17870 points

Its good. Also do these 3 lines of code use button 2 (P1_2) for the complete reset of the CC2530? If not how do I adjust the code to use P1_2 for the reset button?

0 YiKai Chen over 9 years ago in reply to Jack Loop

Guru 735685 points

Which SW does your P1.2 map to? SW1, SW2, or??

0 Jack Loop over 9 years ago in reply to YiKai Chen

Guru 17870 points

I am going to use P1.2 as SW2.

0 YiKai Chen over 9 years ago

Guru 735685 points

So, it should look like the followings:

static void zclSampleLight_HandleKeys( byte shift, byte keys )
{

...
if ( keys & HAL_KEY_SW_2 )
{
zgWriteStartupOptions(ZG_STARTUP_SET, (ZCD_STARTOPT_DEFAULT_NETWORK_STATE | ZCD_STARTOPT_DEFAULT_CONFIG_STATE) );
ZDApp_ResetTimerStart(2000);
}
...
}

0 Jack Loop over 9 years ago in reply to YiKai Chen

Guru 17870 points

The code doesn't seem to have any effect because the board just skips right through the IF statement and moves onto what's inside of it. How do I make it so the board actually reads the IF statement? Right now the CC2530 continuously resets.

0 Jack Loop over 9 years ago in reply to Jack Loop

Guru 17870 points

Never mind. If fixed that problem. I will go test it now.

0 Jack Loop over 9 years ago in reply to Jack Loop

Guru 17870 points

Unfortunately all the code doesn't reset the CC2530 from the previous coordinators. What else could I try?

0 YiKai Chen over 9 years ago in reply to Jack Loop

Guru 735685 points

How do you judge the code doesn't reset CC2530?

0 Jack Loop over 9 years ago in reply to YiKai Chen

Guru 17870 points

I first connected the CC2530 to an Iris hub. I pressed the button on the CC2530. Then I powered of the Iris hub without properly disconnecting the CC2530. I powered the Smartthings hub and the CC2530 doesn't connect to it. I repowered and pressed the reset button multiple times on the CC2530, but it was no good. What could I do?

0 YiKai Chen over 9 years ago in reply to Jack Loop

Guru 735685 points

Can you use Ubiqua Packet Analyzer to check over the air messages when you do these steps?

0 Jack Loop over 9 years ago in reply to YiKai Chen

Guru 17870 points

I tried my procedures again with an antenna this time and now it works!

Also when I try to use P0_1 in either SW6 or SW1, it seems that it has no effect. P0_1 doesn't do anything. Why is this and how would I get it to work?

0 YiKai Chen over 9 years ago in reply to Jack Loop

Guru 735685 points

What do you mean " I try to use P0_1 in either SW6 or SW1, it seems that it has no effect. P0_1 doesn't do anything?"

0 Jack Loop over 9 years ago in reply to YiKai Chen

Guru 17870 points

I want to us P0_1 for the reset button. SW6 uses P0_1 and I tried that button for the reset. I also tried the reset with SW1 configured with P0_1. However neither SW6 doesn't reset whenever I press the button. Also when I configure P0_1 to SW1, it doesn't work when I press the reset button.

0 YiKai Chen over 9 years ago in reply to Jack Loop

Guru 735685 points

You should check if HAL_ISR_FUNCTION is hitted when you trigger P0.1.

0 Jack Loop over 9 years ago in reply to YiKai Chen

Guru 17870 points

How and where do I check this?

0 YiKai Chen over 9 years ago in reply to Jack Loop

Guru 735685 points

Set a breakpoint in HAL_ISR_FUNCTION( halKeyPort0Isr, P0INT_VECTOR ) of hal_key.c and trigger P0.1 to see if breakpoint hits.

0 Jack Loop over 9 years ago in reply to YiKai Chen

Guru 17870 points

I seem to get nothing when I press the button. I am currently using SW6.

0 YiKai Chen over 9 years ago in reply to Jack Loop

Guru 735685 points

Are you sure you connect P0.1 to your button?

0 Jack Loop over 9 years ago in reply to YiKai Chen

Guru 17870 points

Yes I use P0.1 for my button. The below code uses P0.1 and it works for me.

Fullscreen Code.txt Download

#include <ioCC2530.h>
#define uint  unsigned int
#define uchar unsigned char

#define LED1   P1_0
#define LED2   P1_1
#define LED3   P1_4
#define KEY_S1   P0_1

void Delay(uint);
void InitIO(void);
void InitKey(void);
uchar KeyScan(void);

uchar Keyvalue = 0 ;
uint  KeyTouchtimes = 0 ;
/****************************

*****************************/
void Delay(uint n)
{
	uint i;
	for(i = 0;i<n;i++);
        for(i = 0;i<n;i++);
        for(i = 0;i<n;i++);
        for(i = 0;i<n;i++);
        for(i = 0;i<n;i++);
}
/****************************

*****************************/
void InitKey(void)
{
  P0SEL &= ~0X02;
  P0DIR &= ~0X02;
  P0INP |= 0x02;

}
/****************************

*****************************/
void InitIO(void)
{
    P1DIR |= 0x13;
    LED1 = 1;
    LED2 = 1;
    LED3 = 1;
}
/*****************************************

*****************************************/
uchar KeyScan(void)
{
   if(KEY_S1 == 0)
  {
    Delay(100);
    if(KEY_S1 == 0)
    {
      while(KEY_S1==0);
      return(1);
    }
  }
  return(0);
}
/***************************

***************************/
void main(void)
{
  InitIO();
  InitKey();
  while(1)
  {
    Keyvalue = KeyScan();

    if(Keyvalue == 1)
    {
      LED3 = !LED3;
      Delay(20000);
      LED2 = !LED2;
      Delay(20000);
      LED1 = !LED1;
      Delay(20000);
    }
  }
}

0 YiKai Chen over 9 years ago in reply to Jack Loop

Guru 735685 points

Which code do you use that doesn't work?

0 Jack Loop over 9 years ago in reply to YiKai Chen

Guru 17870 points

SampleLight code P0.1 button doesn't work for me, but the attatchment above does.

0 YiKai Chen over 9 years ago in reply to Jack Loop

Guru 735685 points

Do you change anything in hal_key.c of SampleLight?

0 Jack Loop over 9 years ago in reply to YiKai Chen

Guru 17870 points

No I didn't. I even tried the original code, but the button still doesn't work when I use SW6.

0 YiKai Chen over 9 years ago in reply to Jack Loop

Guru 735685 points

Can you attach your hal_key.c?

0 Jack Loop over 9 years ago in reply to YiKai Chen

Guru 17870 points

Here is the file.

Fullscreen 8306.hal_key.c Download

/**************************************************************************************************
