CC2530: CC2530 zstack3.0

CHAO DUAN

Part Number: CC2530
Other Parts Discussed in Thread: , Z-STACK

Hi,

I am using CC2530 to build a router. I use zstack 3.0 GenericApp to build firmware for chip. but when I download Hex file into cc2530, I can not get anything transmit from my CC2530.

PS: I have already set up a Coordinator successfully. What should I do?

James Duan

over 8 years ago

0 YiKai Chen over 8 years ago

Guru 735695 points

What CC2530 EVB do you use? Is it CC2530DK?

0 CHAO DUAN over 8 years ago in reply to YiKai Chen

Intellectual 330 points

Hi YiKai,

I am using CC2530+RTX2401 module (from ShenZhen ChangYuan Information Technologies) and CC debugger to develop a router. And I think although I am not using CC2530 EVB, the OSAL system and bind task should be same. So I should develop the module using sample in zstack3.0. Am I right?

Thanks for your reply.

James Duan

0 JasonB over 8 years ago in reply to CHAO DUAN

TI__Expert 8950 points

Hi,

Did you initiate BDB commissioning on your device? Depending on the BDB commissioning options, this will allow your device to form a network if it is a network-forming device, or join a network if it is a joining device. In the GenericApp example, BDB commissioning for all commissioning modes can be started by pressing SW2 if using a SmartRF05 + CC2530EM. You can look at the relevant code on line 441 of zcl_genericapp.c.

0 CHAO DUAN over 8 years ago in reply to JasonB

Intellectual 330 points

Hi,

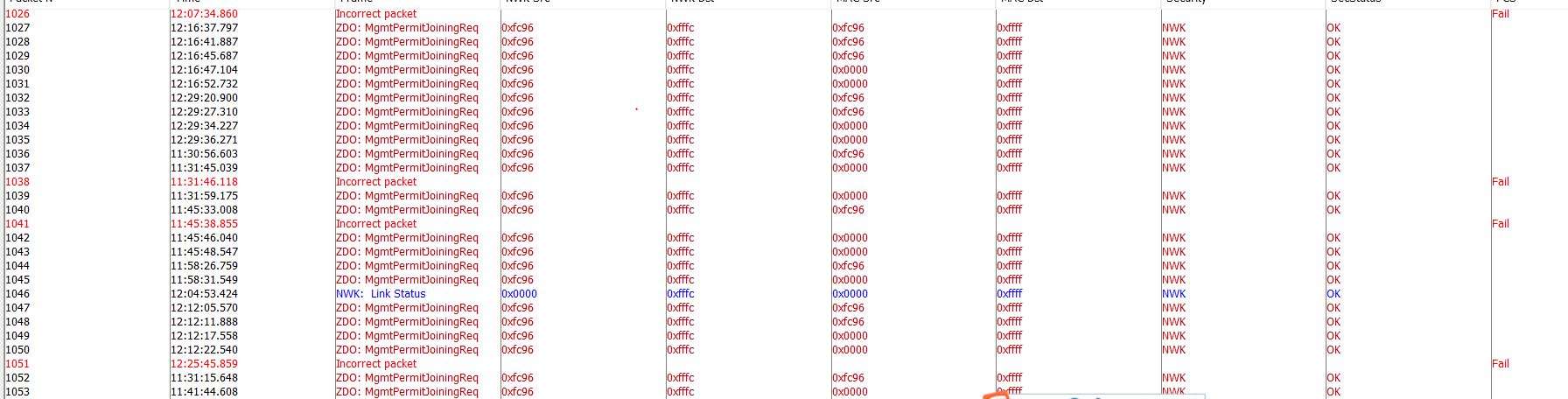

Thanks Jason. Now my CC2530 could transmit some message to gateway. but I also got a strange as shown in picture.

What does that mean and what should I do to figure it out.

PS: I start BDB commissioning task before run_system.

Thanks again.

James Duan

0 JasonB over 8 years ago in reply to CHAO DUAN

TI__Expert 8950 points

Hi,

You must start BDB commissioning after the system has been completely initialized and is running, e.g. somewhere in the application ideally, like it is done in the Z-Stack sample applications.

Do you have a way of providing external input to the system like a switch? I would recommend putting the BDB commissioning call there.

0 CHAO DUAN over 8 years ago in reply to JasonB

Intellectual 330 points

Hi,

Thank you for your reply. I just want to evaluate this chip. If it is ok, I am gonna to provide a external input later. So I add bdb_StartCommissioning(BDB_COMMISSIONING_MODE_NWK_FORMATION | BDB_COMMISSIONING_MODE_NWK_STEERING | BDB_COMMISSIONING_MODE_FINDING_BINDING | BDB_COMMISSIONING_MODE_INITIATOR_TL); in the osal_start_system() function.
is it correct? Or I have to simulate a button press in osal_run_system() function.

Thanks
James Duan

0 JasonB over 8 years ago in reply to CHAO DUAN

TI__Expert 8950 points

/cfs-file/__key/communityserver-discussions-components-files/158/zcl_5F00_genericapp.zip

I attached a modified version of zcl_genericapp.c/h with a slight modification, if you search for "GENERICAPP_BDB_COMMISSIONING" you can see the changes.

Basically I made it so after the application is initialized, a 2-second timer is started inside the application and after the timeout an event is called that starts BDB commissioning. This is an example of how you would want to start BDB commissioning without the use of an external input to the system.

0 CHAO DUAN over 8 years ago in reply to JasonB

Intellectual 330 points

Hi,

I tried your method in my program. I see everything is like what you have said. After timeout, an starts BDB commissioning event is called. But my chip can not even transmit a beacon.

Thanks
James Duan

0 YiKai Chen over 8 years ago in reply to CHAO DUAN

Guru 735695 points

Are you sniff on correct channel?

0 CHAO DUAN over 8 years ago in reply to YiKai Chen

Intellectual 330 points

I am sure my sniff is on correct channel.

0 JasonB over 8 years ago in reply to CHAO DUAN

TI__Expert 8950 points

Try disabling the secondary BDB channel set if you have not already. i.e, change this define in bdb_interface.h:

#define BDB_DEFAULT_SECONDARY_CHANNEL_SET 0

0 CHAO DUAN over 8 years ago in reply to JasonB

Intellectual 330 points

after I disable the secondary BDB channel set, I still can not see any signal in sniffer
Thanks,
James Duan

0 YiKai Chen over 8 years ago in reply to CHAO DUAN

Guru 735695 points

Try to call bdb_StartCommissioning() at the latest line of zclGenericApp_Init().

0 CHAO DUAN over 8 years ago in reply to YiKai Chen

Intellectual 330 points

Yep, I call that at the last line in zclGenericApp_Init function with a 2s timer. just like Jason did.

James Duan

0 CHAO DUAN over 8 years ago in reply to YiKai Chen

Intellectual 330 points

I figure out this problem. I just change the timer from 2s to 0s. Than it works. But Now I have a new problem. After the router join the network, it will send nodeDescriReq to my Coordinator. But it looks like no response from my coordinator. And then router just leave the net. How could I solve that.

Thanks
James Duan

0 YiKai Chen over 8 years ago in reply to CHAO DUAN

Guru 735695 points

Is your coordinator based on Z-Stack 3.0 too?

0 CHAO DUAN over 8 years ago in reply to YiKai Chen

Intellectual 330 points

No, I just bought a ZigBee gateway(Coordinator) from Rexense.

0 YiKai Chen over 8 years ago in reply to CHAO DUAN

Guru 735695 points

GenericApp doesn't run Zigbee HA profile and I suppose your GW runs HA profile so GenericApp has problem to join properly. Try to use SampleLight to test with the GW.

0 CHAO DUAN over 8 years ago in reply to YiKai Chen

Intellectual 330 points

But I see GenericApp belong to HomeAutomation file. well, I will try Sample light first.

0 YiKai Chen over 8 years ago in reply to CHAO DUAN

Guru 735695 points

After checking GenericApp in Z-Stack 3.0, I see TI changes it to use HA profile. However, it uses ZCL_HA_DEVICEID_ON_OFF_LIGHT as device ID but doesn't implement ON/OFF cluster in its in/out clusters. I think this might cause the problem so I still suggest you to test SampleLight first.
