CC2530: RSSI value from MAC

You can try to get it from AfIncomingMsg() in AF.c

but shows junk values all the time

Use lqi in it to convert to RSSI.

{
osal_event_hdr_t hdr; /* OSAL Message header */
uint16 groupId; /* Message's group ID - 0 if not set */
uint16 clusterId; /* Message's cluster ID */
afAddrType_t srcAddr; /* Source Address, if endpoint is STUBAPS_INTER_PAN_EP,
it's an InterPAN message */
uint16 macDestAddr; /* MAC header destination short address */
uint8 endPoint; /* destination endpoint */
uint8 wasBroadcast; /* TRUE if network destination was a broadcast address */
uint8 LinkQuality; /* The link quality of the received data frame */
uint8 correlation; /* The raw correlation value of the received data frame */
int8 rssi; /* The received RF power in units dBm */
uint8 SecurityUse; /* deprecated */
uint32 timestamp; /* receipt timestamp from MAC */
uint8 nwkSeqNum; /* network header frame sequence number */
afMSGCommandFormat_t cmd; /* Application Data */
uint16 macSrcAddr; /* MAC header source short address */
uint8 radius;
} afIncomingMSGPacket_t;


there is no lqi in afIncoming

is there anyway i can use this void MAC_McpsDataReq(macMcpsDataReq_t *pData) function to get the rssi value????

I don’t have experience to use this API. I always use LQI requests. You can try it anyway.

I'm using Z-Stack 1.2 why i do not get the correct RSSI values from Aincoming msges ???

I always use LQI instead of RSSI and I also run my application based on Z-Stack 1.2. I am pretty sure LQI works well. I suggest you to use Ubiqua Protocol Analyzer to check it first.

the only problem i am facing with this method is that the value of the lqi is not updaing, is there a way to update this??? now i am restarting the end device to update the value.

Please provide Ubiqua Sniffer log so I can help to check.

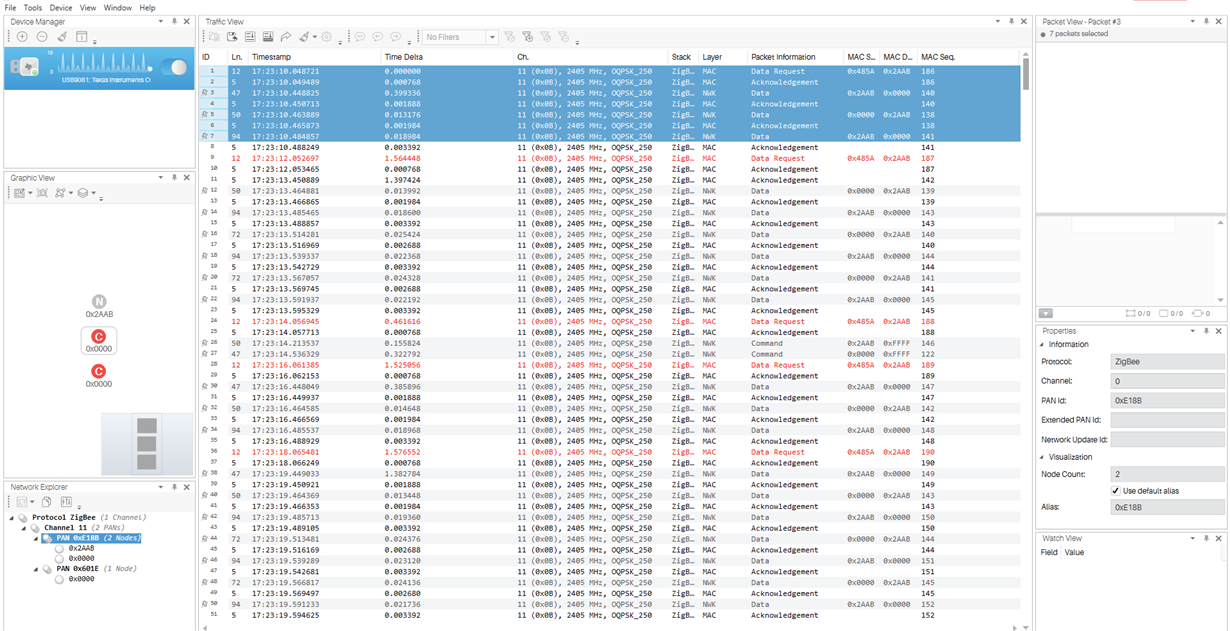

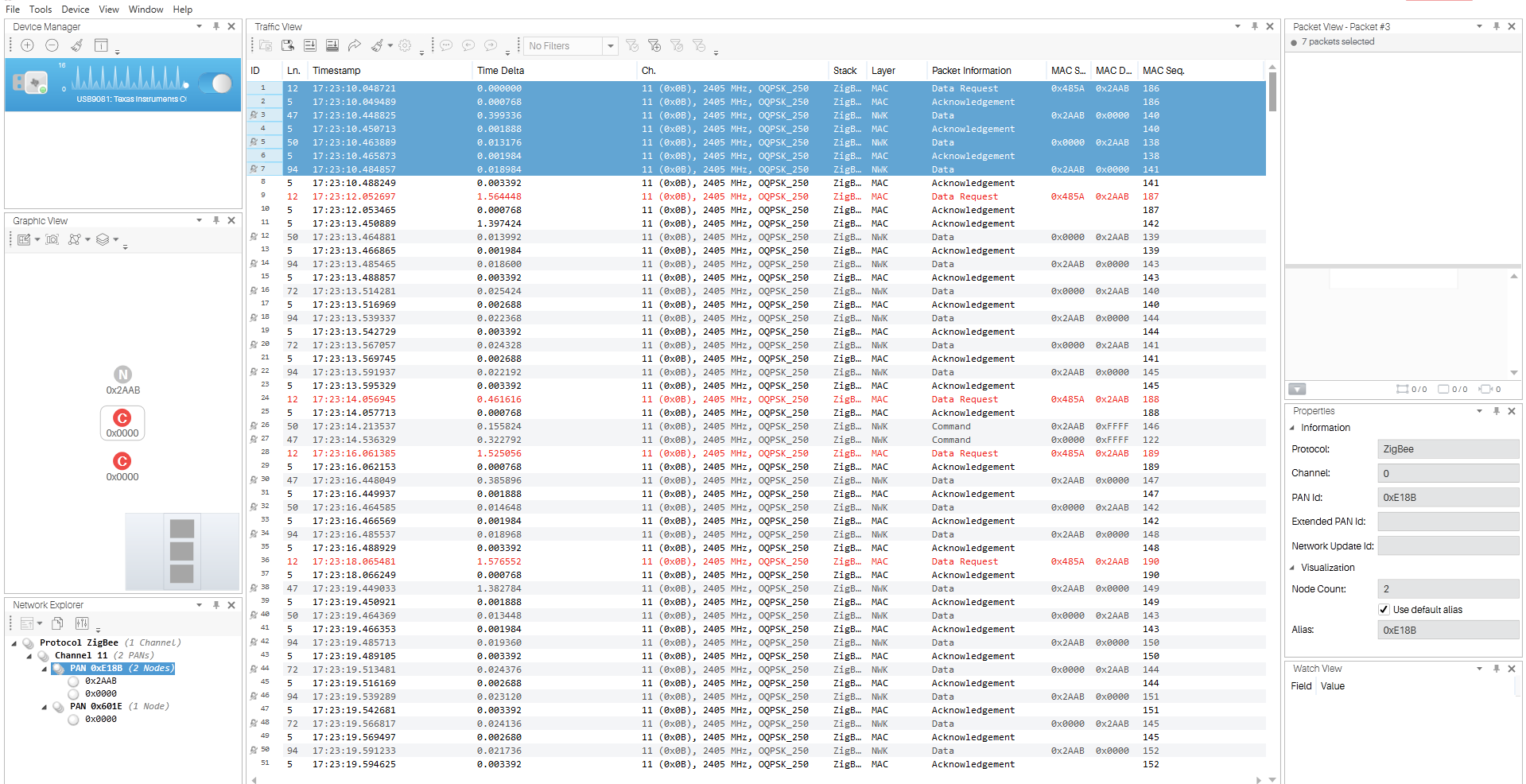

Can you attach sniffer log instead of screenshot?

that format is not supported
i will attach the packet sniffer log if you want

You can zip it to attach.
