DS90UB913/4 issue

Kai Hsiao

Dear Sir

When I use DS90UB913/4 to connect with OV image sensor (1080p/30) and without connect I2C bus ,the image display is seems like normally

But If I use CMOS sensor and Host's I2C to control 913 and 914 ,Output image will be blinking

Please refer to below link and give us some way to solve

https://www.youtube.com/watch?v=Q06JWV8LG3M&feature=youtu.be

Thanks

Please refer to below link n

over 10 years ago

0 Jason Blackman over 10 years ago

TI__Genius 14015 points

Hi Kai,

Are you using two different sensors? Do you have a datasheet for the sensor that is causing a flickering image?

Thanks,
Jason Blackman

0 Kai Hsiao over 10 years ago in reply to Jason Blackman

Guru 12675 points

Dear Sir

DS90UB913/4Q

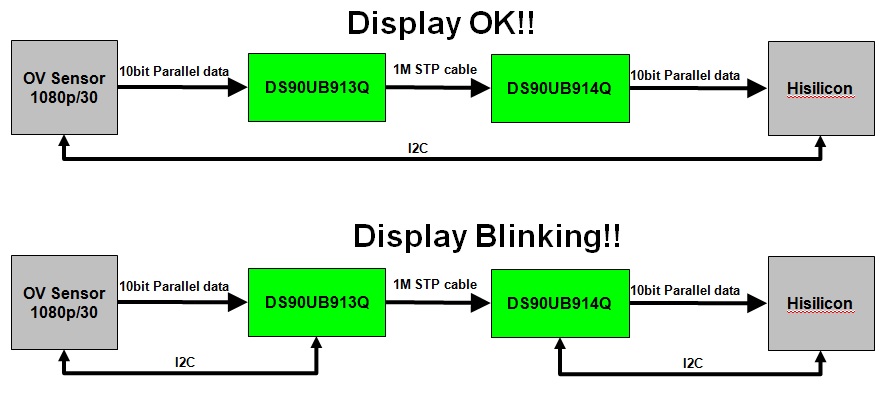

Only use one image sensor ,Below is our test block diagram ,Just different between I2C connect directly or not

Display normally video link

https://www.youtube.com/watch?v=vFVKeDq_nJM

Display blinking video link

https://www.youtube.com/watch?v=Q06JWV8LG3M

In blinking video link ,the oscilloscope is show I2C's status

Ch1 (Yellow) : DS90UB913Q <=> Image sensor

Ch2 (Blue) : DS90UB914Q <=> Host

0 Mark Sauerwald88474 over 10 years ago in reply to Kai Hsiao

TI__Genius 13475 points

Kai

Which OVT sensor is being used? - OV10635? - and can you tell me about the processor or ISP that is connected via I2C - what information is being sent over I2C, how much etc.

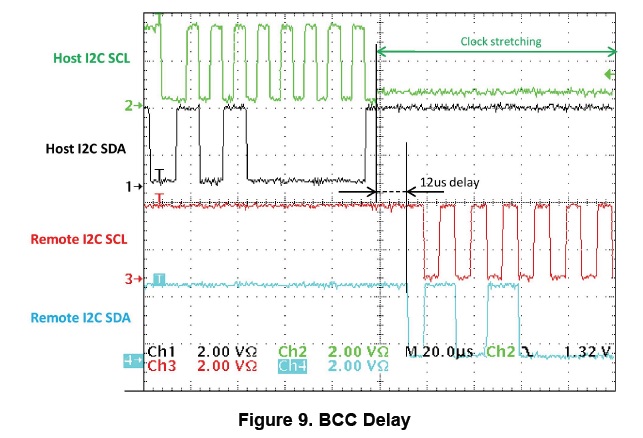

The I2C bridge that is established via the DS90UB913Q and DS90UB914Q does have an affect on the I2C signal latency, so time critical signals may be impacted, but I have not seen this issue before.

0 Kai Hsiao over 10 years ago in reply to Mark Sauerwald88474

Guru 12675 points

Dear Sir

OV2710 ,If I don't modify I2C delay time ,What's condition that I will meat ?

0 Iven Xu over 10 years ago in reply to Kai Hsiao

TI__Intellectual 2090 points

Dear All,

Does this issue already been closed? Looks I am deal with a similar issue, the different test result is my screen can not be powered on rather than Blinking. Appreciate your recommendation. Thanks!

Best Regards,
Iven Xu

0 Mark Sauerwald88474 over 10 years ago in reply to Iven Xu

TI__Genius 13475 points

Iven

The issue here is that when sending the I2C signal through the backchannel, there is additional latency introduced, so if you are using I2C to transport critical timing signals, then there may be issues. What are the signals that you are transporting over I2C?

Mark
