EK-TM4C123GXL: Missing Dimensions - EK-TM4C123GXL

LOUIE MARC DUTERTE

Part Number: EK-TM4C123GXL

Hi this is Louie,

As of current, we notice a high number of views for Texas Instruments board EK-TM4C123GXL and would like to generate a 3D model of the said product.

However, we need the following dimensions missing from the reference and resources as available on the Texas Instruments product website.
www.ti.com/.../EK-TM4C123GXL

Could you please assist us in getting this information as depicted in the image attached?

drive.google.com/.../view

We are looking forward to your urgent and positive response. Thank you very much

Yours sincerely,

Louie

over 1 year ago

0 Charles Tsai over 1 year ago

TI__Guru**** 178586 points

Hi,

LOUIE MARC DUTERTE said:
However, we need the following dimensions missing from the reference and resources as available on the Texas Instruments product website.
www.ti.com/.../EK-TM4C123GXL

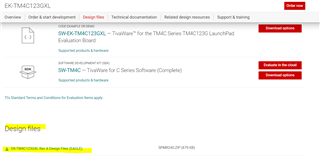

All design related files are in spmr240.zip. This is everything we have pertaining to the LaunchPad design.

Here is the link to the download. https://www.ti.com/lit/zip/spmr240

LOUIE MARC DUTERTE said:
Could you please assist us in getting this information as depicted in the image attached?

drive.google.com/.../view

My company blocks access to any online cloud storage. You can attach the picture directly to the editor by dragging the image. With that said, the zip file above has everything we have. If you are looking for something else then we would not have it.

0 LOUIE MARC DUTERTE over 1 year ago in reply to Charles Tsai

Prodigy 20 points

Hi,

Thanks for the reply, however as per my previous message, I already utilized and opened those resources. But for us to be able to generate the 3D model. The missing dimension as depicted on the image is needed. Hope you could provide more information to resolve this. Thanks.

Yours,

Louie

0 Charles Tsai over 1 year ago in reply to LOUIE MARC DUTERTE

TI__Guru**** 178586 points

Charles Tsai said:
My company blocks access to any online cloud storage. You can attach the picture directly to the editor by dragging the image.

First of all, you didn't even show the image as I requested. I already said we don't have anything else if the zip file does not contain what you need.

0 LOUIE MARC DUTERTE over 1 year ago in reply to Charles Tsai

Prodigy 20 points

Please be noted. The image as depicting the requested missing dimensional information is attached as a drive link so it is there. Please backread on previous messages before commenting. Thanks.

drive.google.com/.../view

0 Charles Tsai over 1 year ago in reply to LOUIE MARC DUTERTE

TI__Guru**** 178586 points

Hello,

I already mentioned my company blocks access to online sharing site due to security. I can only see if I use my personal computer when I go home. I cannot respond to you until then. You just need to attach the image by dragging the file into this window. If you don't want to do that then I will need to wait until I go home.

0 LOUIE MARC DUTERTE over 1 year ago in reply to Charles Tsai

Prodigy 20 points

Hi Charles,

Please see of the attached image above will do. I had to add via link since the image here seems pixelated and unclear. Thanks.

0 Charles Tsai over 1 year ago in reply to LOUIE MARC DUTERTE

TI__Guru**** 178586 points

Hi Louie,

Thanks for the image. As mentioned, if you don't find in the zip file then we simply don't have it. With that said, I use the digital caliber to measure them. I use this caliber for measurement.

https://www.amazon.com/Electronic-Digital-Caliper-Composites-Measurement/dp/B09M7NY31T

I have never come across anyone asking for these measurements in the last six years I support this product. You are the first one.

These are only hand measurements. You can do your own measurements. There is nothing more for me to offer.

t=1.5mm

h1=7.5mm

h2=8.5mm

H=5.5mm

Another source of information is the LaunchPad user's guide in section 4.3 for the BOM where you can find all the components used on the board.

https://www.ti.com/lit/spmu296

0 LOUIE MARC DUTERTE over 1 year ago in reply to Charles Tsai

Prodigy 20 points

Hi Charles,

This has been very helpful indeed. Any development I shall share here for now this is resolved. Appreciate the time and assistance.

Yours,

Louie
