IWR1843BOOST: mmwave Studio Data Capture Demo corruption

Samuel Stone

Part Number: IWR1843BOOST
Other Parts Discussed in Thread: DCA1000EVM, UNIFLASH, IWR1843

Hello,

I have been working with the IWR1843BOOST and have come across an unknown issue. While mmWave studio's "Data Capture Demo" has worked fine for a while, the plot recently seems to be out of sync or corrupt.

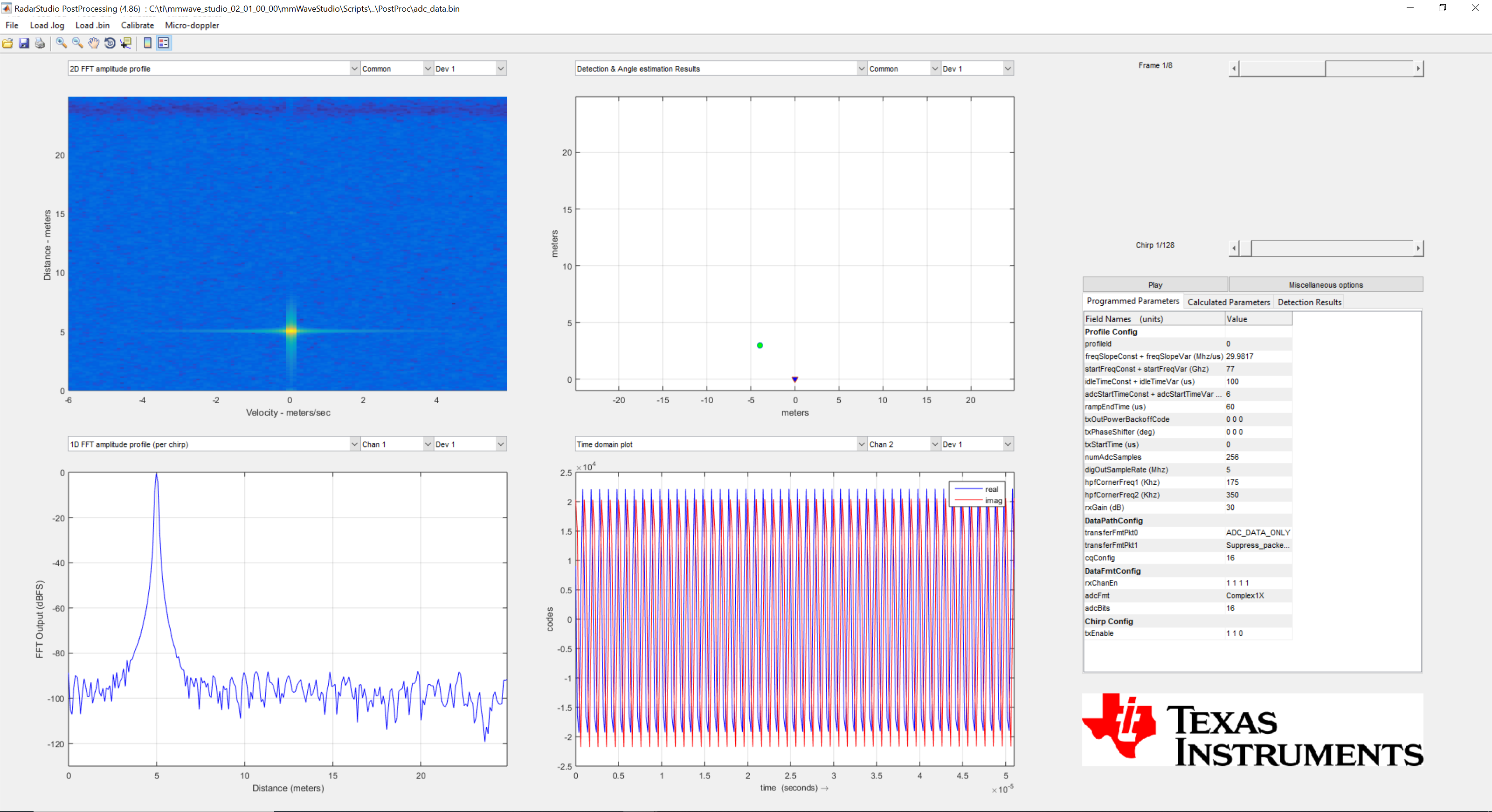

Additionally before that, the plot always had a significant return at 5 meters, regardless of the environment.

over 4 years ago

0 zigang Yang over 4 years ago

TI__Mastermind 38515 points

HI, Samuel:

You are right, the old data looks correct and the new data looks wrong. Is it the same board and device?

Best,

Zigang

0 Samuel Stone over 4 years ago in reply to zigang Yang

Prodigy 45 points

Hello,

Yes, it is the same device for both captures. I forgot to mention that I am also using the DCA1000EVM (for both captures).

Thanks!

0 zigang Yang over 4 years ago in reply to Samuel Stone

TI__Mastermind 38515 points

HI, Samuel:

Please flash the out-of-box binary and run the visualizer to see whether everything looks all right. If that is correct, then it could be some issue with DCA1000 board. Please send a picture of your hardware setup to me to help review.

Best,

Zigang

0 zigang Yang over 4 years ago in reply to zigang Yang

TI__Mastermind 38515 points

It has been two weeks without your reply. Any update?

Best,

Zigang

0 zigang Yang over 4 years ago in reply to zigang Yang

TI__Mastermind 38515 points

Since I have not receive any update from you, I will go ahead closing this thread.

Best,

Zigang

0 Samuel Stone over 4 years ago in reply to zigang Yang

Prodigy 45 points

Hello,

I flashed the demo bin and ran the demo visualizer and the output seems normal.

I'm not sure what is wrong with the radar/data collect board, but I would like to troubleshoot the DCA1000EVM next.

0 zigang Yang over 4 years ago in reply to Samuel Stone

TI__Mastermind 38515 points

HI, Samuel:

Thank you for letting me know. Please keep me posted your progress on DCA1000EVM debug.

Best,

Zigang

0 zigang Yang over 4 years ago in reply to zigang Yang

TI__Mastermind 38515 points

HI, Samuel:

Any update from your side? Or do you need any support for this debug?

Best,

Zigang

0 Samuel Stone over 4 years ago in reply to zigang Yang

Prodigy 45 points

Re-flashing the firmware on the DCA1000EVM and setting up the configuration switches resolved the issue. Here are the steps:

If there is any firmware installed like Beamsteering (lab11) must format the SFLASH using UniFlash before start using mmWave studio. Beamsteering Image
Start the mmWave studio and flow the steps https://training.ti.com/dca1000-training-video and the pdf (mmwave_sensor_raw_data_capture_using_dca1000_v02.pdf)
Before start recording make sure DCA1000 allowed through windows firewall
If the DCA stopped working for any reason and you cant get it back to work, re-flash the DCA1000 using Diamond programmer and flow the steps in the manual (DCA1000 re-flash.pdf)
Make sure to disconnect the DCA from the IWR1843 and use the 5V power supply direct to the DCA, also , connect cable in J4 FPGA.

Thanks,
Sam Stone

0 zigang Yang over 4 years ago in reply to Samuel Stone

TI__Mastermind 38515 points

Hi, Sam:

Great news! And thank you so much for providing us with this valuable procedure.

Best,

Zigang
