CCS/TMS320F28069: Device Calibration not complete, check if device is unlocked and recalibrate.C28xx:

vladimir vladimir1

Intellectual 565 points

Part Number: TMS320F28069
Other Parts Discussed in Thread: CONTROLSUITE, C2000WARE, UNIFLASH

Tool/software: Code Composer Studio

Hello. For the first time I develop a new device on tms320f28069, when I try to debug a program, the message pops up: (

Device Calibration not complete, check if device is unlocked and recalibrate.C28xx: GEL Output:

What are my next steps?

over 7 years ago

0 vladimir vladimir1 over 7 years ago

Intellectual 565 points

This may be due to blanking capacitors 22 μf instead of 0.1?

0 tlee over 7 years ago in reply to vladimir vladimir1

TI__Guru 62975 points

Vladimir,

This is more of a warning rather than an error. It should not have anything to do with your capacitors.

Are you able to flash the program successfully?

-Tommy

0 vladimir vladimir1 over 7 years ago in reply to tlee

Intellectual 565 points

No.

0 tlee over 7 years ago in reply to vladimir vladimir1

TI__Guru 62975 points

Vladimir,

It looks like the device connected properly because you can read the memory contents.

Can you give us some more background on what you are trying to do? Do you already have a project built that is ready to be loaded?

-Tommy

0 vladimir vladimir1 over 7 years ago in reply to tlee

Intellectual 565 points

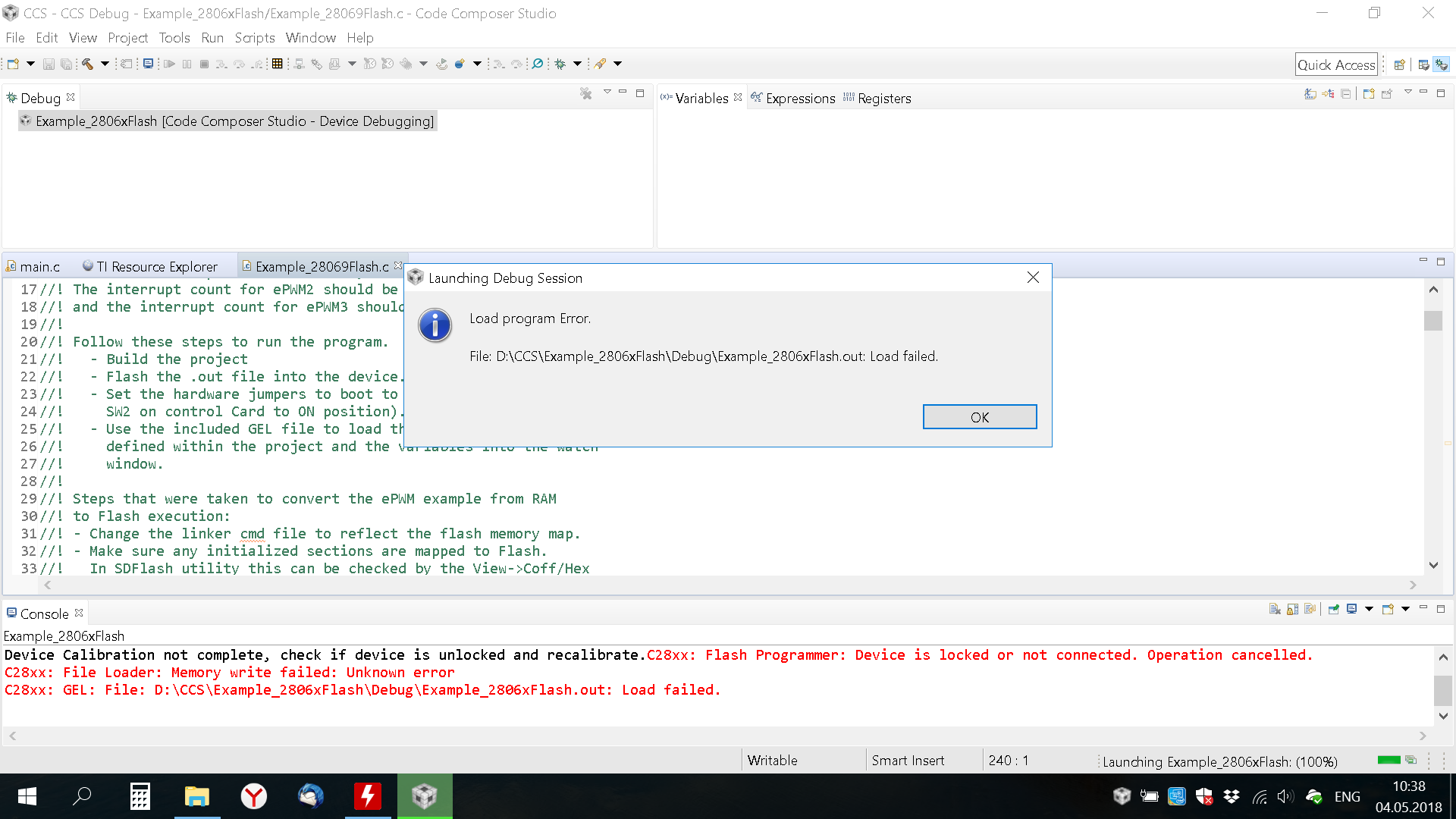

Yes. I have simple project. I try debug it. But when i click debug it CCS sends this message.

0 tlee over 7 years ago in reply to vladimir vladimir1

TI__Guru 62975 points

Are you starting with an example project from C2000Ware or ControlSUITE?

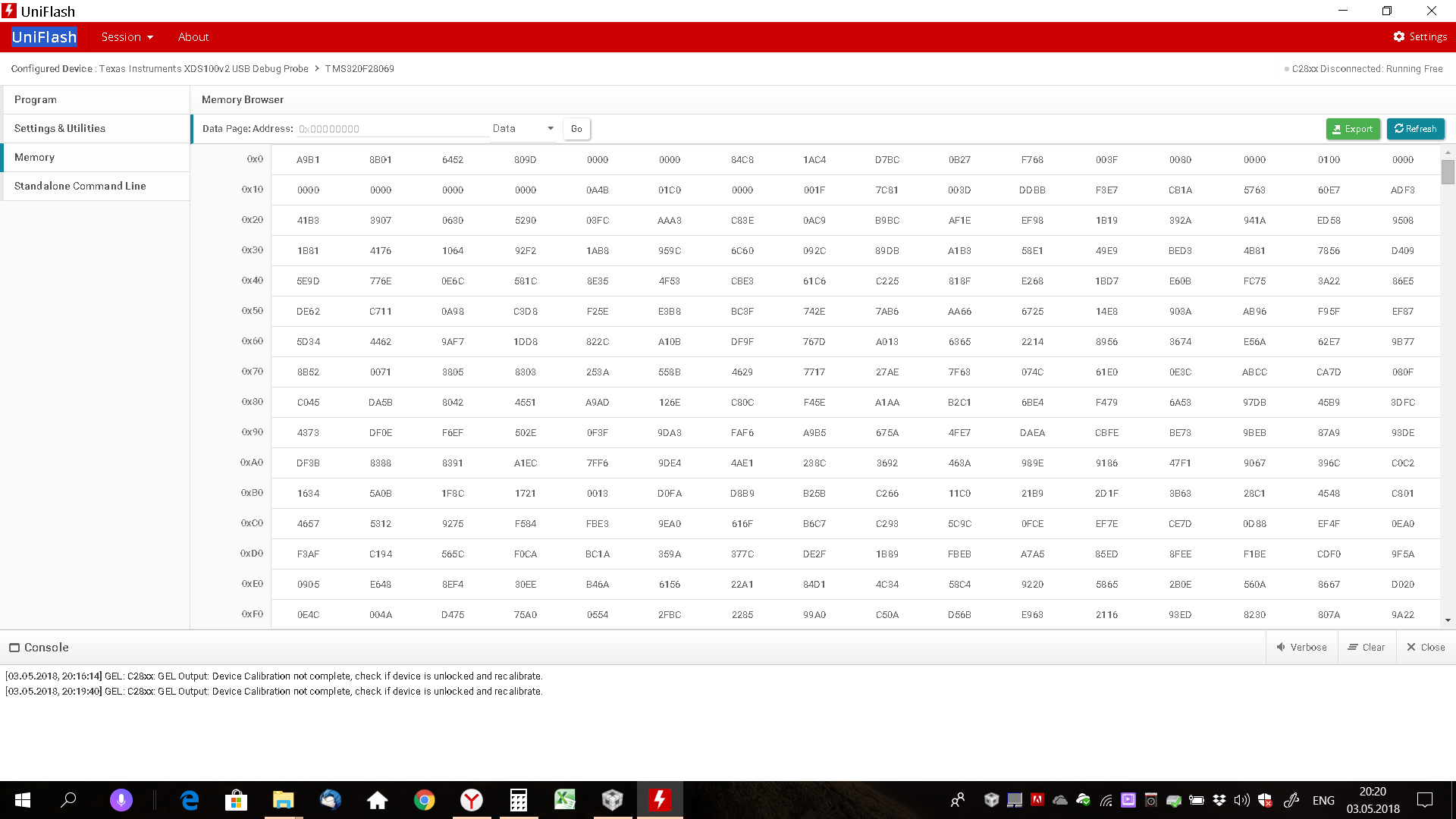

Can you share a screenshot of CCS? UniFlash is generally not used during code development and debug.

0 vladimir vladimir1 over 7 years ago in reply to tlee

Intellectual 565 points

Ok.tomorrow

0 tlee over 7 years ago in reply to vladimir vladimir1

TI__Guru 62975 points

The F28069 Workshops may also be helpful resources for getting started.

0 vladimir vladimir1 over 7 years ago in reply to tlee

Intellectual 565 points

I do not need it. The experience of programming such controllers I have

0 vladimir vladimir1 over 7 years ago in reply to vladimir vladimir1

Intellectual 565 points

Explain how this error can be caused. I can read the contents,but cant enter debugging mode

0 vladimir vladimir1 over 7 years ago in reply to tlee

Intellectual 565 points

0 vladimir vladimir1 over 7 years ago in reply to vladimir vladimir1

Intellectual 565 points

Maybe this is due to:
1. 3,14,37,63,81b 91 pins are connected to + 3.3V. In the examples they are not connected to + 3.3V
2. There is no power supervisor (11 pin connected to + 3.3V directly)

0 tlee over 7 years ago in reply to vladimir vladimir1

TI__Guru 62975 points

Oh, I think you found the issue. The VDD supply is 1.8V nominal:

That would probably explain why the core is not responding properly.
