Hi,

Can anyone explain the bleed current path and power loss calculation during passive balancing using external MOSFETs while charging??

over 6 years ago

0 Taylor Vogt over 6 years ago

TI__Genius 17370 points

Hi Anson,

Please refer to the datasheet section 9.2.1.2.11.3 for an overview of the power dissipated calculation equaling mostly the i^2*R drop of your cb resistance and rdson of whatever FET you choose, so worst case scenario would be at the highest cell balancing current you intend to use and at high temps. The calculation of the Req can be found in section 4.2 of the design recommendations app note.

Best Regards,

Taylor

0 Anson Jose over 6 years ago in reply to Taylor Vogt

Intellectual 380 points

Hi Taylor,
Can you show me the bleed current path when we use external FETs

0 Taylor Vogt over 6 years ago in reply to Anson Jose

TI__Genius 17370 points

Hi Anson,

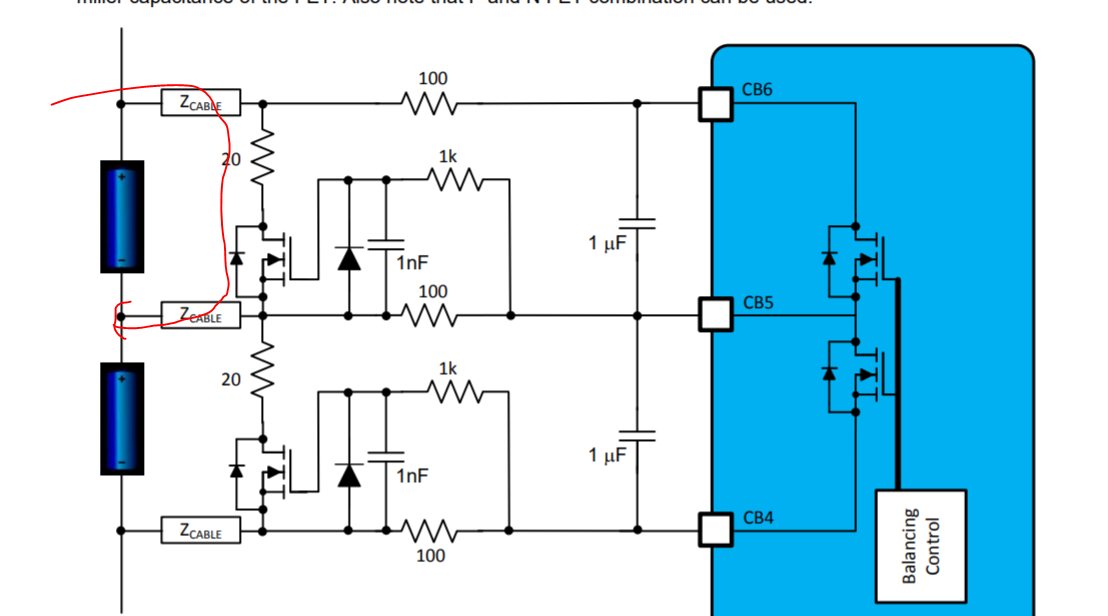

The current path will be as below:

Regards,

Taylor

0 Anson Jose over 6 years ago in reply to Taylor Vogt

Intellectual 380 points

Hi Taylor ,

What is the purpose of diode, capacitor, and the 1k resistors shown in figure??

0 Roger Hwang over 6 years ago in reply to Anson Jose

TI__Genius 10785 points

Hi Anson,

Taylor is on business trip.
Basically, they are to protect Vgs of the FET.
1K is to limit the current doing hot plug.
If you have high Vgs spec then you might not need the Zener.

Roger

0 Anson Jose over 6 years ago in reply to Roger Hwang

Intellectual 380 points

Hi Roger,

Thank you .This is really helpful

Regards
Anson

0 Roger Hwang over 6 years ago in reply to Anson Jose

TI__Genius 10785 points

Hi Anson,

I will close this thread.

thanks

Roger
