Hi,

Is it possible to get the DSN file of AWR1642 Boost schematic.

Sreenath Vipin

over 5 years ago

0 aozer over 5 years ago

TI__Mastermind 30815 points

Hello Sreenath,

Unfortunately, the files are only available in Altium format. I can also provide you with the ODB++ files if this would help, but we do not have the files in OrCAD format.

Regards,

Adrian

0 Sreenath Vipin over 5 years ago in reply to aozer

Intellectual 530 points

Hi,

Can u please send me the files?

Sreenath

0 aozer over 5 years ago in reply to Sreenath Vipin

TI__Mastermind 30815 points

Hello Sreenath,

Please see attached.

Regards,

adrian

ODB.zip

0 Sreenath Vipin over 5 years ago in reply to aozer

Intellectual 530 points

Hi,

Does it contain the altium file of schematic?

Sreenath

0 aozer over 5 years ago in reply to Sreenath Vipin

TI__Mastermind 30815 points

You can find the Altium files on the product page under the 'Design Files' section:

http://www.ti.com/tool/AWR1642BOOST#technicaldocuments

Regards,

Adrian

0 Sreenath Vipin over 5 years ago in reply to aozer

Intellectual 530 points

Hi,

Is it possible to convert these altium files into orcad format?

sreenath

0 aozer over 5 years ago in reply to Sreenath Vipin

TI__Mastermind 30815 points

Hello Sreenath,

I am sorry, it is not possible for us to convert these files. I do not have access to OrCAD and therefor cannot assist in anything that requires the use of OrCAD.

Regards,

Adrian

0 Sreenath Vipin over 5 years ago in reply to aozer

Intellectual 530 points

Hi,

I think its possible to convert the altium files into ascii format in the altium designer itself. I don't have altium designer too, thats why i need assist in that. This pdf will have the details

SreenathOrCAD_Migration_Guide_Altium.pdf

0 aozer over 5 years ago in reply to Sreenath Vipin

TI__Mastermind 30815 points

Hello Sreenath,

I have converted the files to ASCII format as instructed by the doc.

Regards,

Adrian

ASCII_Files.zip

0 Sreenath Vipin over 5 years ago in reply to aozer

Intellectual 530 points

Hi,

I have received the ASCII file. I have unzipped and tried to export it into the Orcad format using orcad 17.2 . But it is showing that some files are missing. Could not find the file. Can you please try convering the files once again following the procedures and please send me the ASCII file. Please go through the procedure once again. Since the file requirement is urgent. Also i have seen the reference design "Automotive RFCMOS 77GHz radar module reference design with object data output over dual CAN FD". Can you please send the ASCII format schematic files of this design too. Expecting your response soon.

Sreenath

0 aozer over 5 years ago in reply to Sreenath Vipin

TI__Mastermind 30815 points

Hello,

Can you give some specifics on which files it said are missing? Those are all of the files in the design package, there is nothing else left to add.

Regards,

Adrian

0 aozer over 5 years ago in reply to aozer

TI__Mastermind 30815 points

I have tried to repeat the process again. Let me know if this works.

8883.ASCII_Files.zip

Regards,

Adrian

0 Sreenath Vipin over 5 years ago in reply to aozer

Intellectual 530 points

Hi,

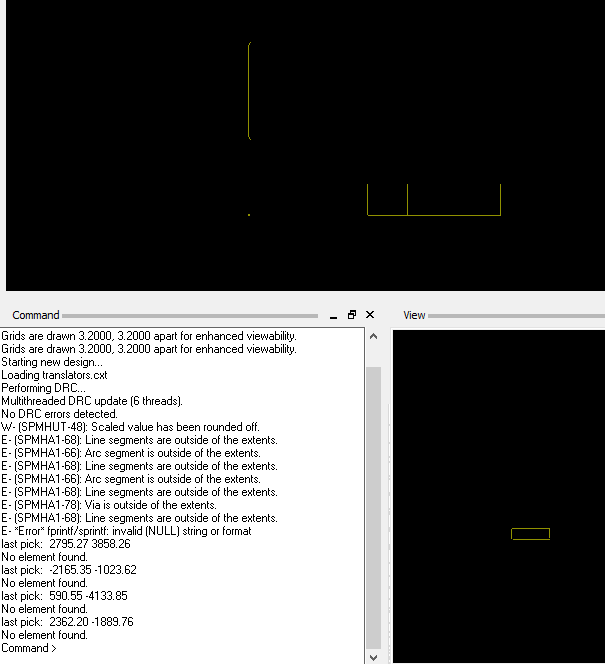

The problem still persists. When i tried to import into orcad format my orcad17.2 crashes. and a dialogue box appears. I am attaching the screenshot.

Also when we tried to convert the pcddoc file ie the board file. its is also showing some errors. Can u once again try the procedure,. This time do try to convert the board file that is the PCB file to ASCII format the procedure is in the pdf. Expecting the reply soon

Sreenath

0 aozer over 5 years ago in reply to Sreenath Vipin

TI__Mastermind 30815 points

Hello Sreenath,

I am very sorry but I have followed the PDF document exactly. All of the files (.SchDoc and .PcbDoc) have been saved as ASCII files. I don't think trying again will make any difference. You should be able to import the gerbers I had previously provided into OrCAD if the schematic and PCB files are not working.

0 Sreenath Vipin over 5 years ago in reply to aozer

Intellectual 530 points

Hello Aozer,

"You should be able to import the gerbers I had previously provided into OrCAD if the schematic and PCB files are not working. " This is didn't understood .

Thank you for the effort from your side. It was an urgent requirement. If there is anyother way to do it please let me know

Sreenath

0 aozer over 5 years ago in reply to Sreenath Vipin

TI__Mastermind 30815 points

Hello Sreenath,

Unfortunately I do not know of any other way. I have never worked with OrCAD before. If you have any other ideas I could try them, but I followed the instructions in the PDF exactly.

Regards,

Adrian
