TPA2015D1: mixer

[FAE] Andrew Wang

Genius 10685 points

Part Number: TPA2015D1
Other Parts Discussed in Thread: TPA2011D1

Hi Team,

If customer wants to check if TPA2015D1 can do mixer from a regular Codec (ALC888S), single-ended L/R output.

Can we connect codec single-ended R to TPA2015 IN+ and codec L to TPA2015 IN-?

My TINA simulation looks ok, but want to verify again, thanks!

Andrew

+1 Ivan Salazar over 4 years ago

Hi Andrew,

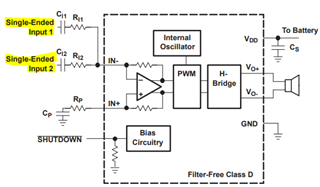

I would rather suggest something like the implementation below from another TPA amplifier:

The connection you're using may work, but if input signals are the same they may be eliminated due to differential subtraction.

Best regards,
-Ivan Salazar
Applications Engineer - Low Power Audio & Actuators

0 [FAE] Andrew Wang over 4 years ago in reply to Ivan Salazar

Thanks for feedback, TPA2011D1 should work for this case.
