LM4950: output capacitor issue

GARETH OU

Part Number: LM4950

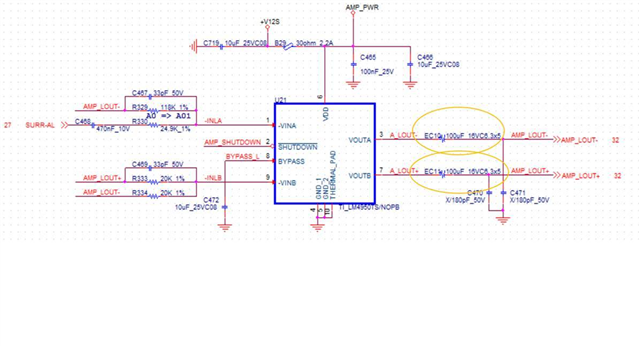

he customer uses the BTL connection method, but the customer's request adds a 100uf electrolytic capacitor to the output end. Later, some boards will have noises after testing. May I ask whether the BTL connection method can add a capacitor to the output end to filter low-frequency noise?

over 4 years ago

0 Brian Donoghue over 4 years ago

TI__Intellectual 2620 points

Gareth,

For bridge tied load, the output capacitor is not needed because there is no DC voltage across the load. I recommend to remove the 100uF cap and DC couple the load.

Brian

0 GARETH OU over 4 years ago in reply to Brian Donoghue

Guru 12890 points

Hi Brian

Thank you for your quick reply

Customers would like to ask what kind of impact and consequences would it have if it is added?

0 Brian Donoghue over 4 years ago in reply to GARETH OU

TI__Intellectual 2620 points

The customer should verify the frequency response, output level, and THD+N with the caps to ensure it meets their requirements.
