Input and output on TLV320AIC and TLV320ADC, path to ground?

Jay Shoemaker

Other Parts Discussed in Thread: TLV320AIC3105

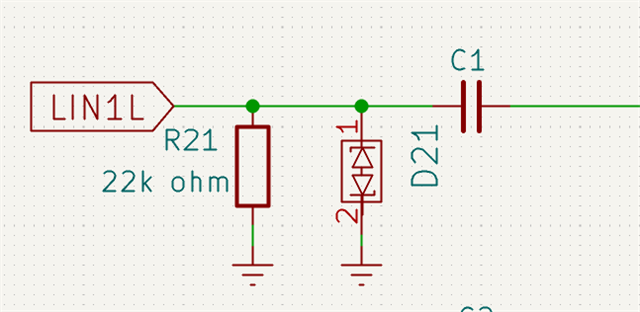

This is related to the FAQ post on unused pins. For inputs that will have sources which will be connected and disconnected on these chips should we add a path to ground on the inputs? For example, on a device that will have inputs which are optional (RCA inputs) should we add a path to ground? Does this look OK for an input on a TLV320AIC3105?

over 2 years ago

0 Daveon Douglas over 2 years ago

TI__Mastermind 27070 points

Hi,

Yes, we recommend AC-coupling unused analog inputs to ground so this connection is fine.

0 Jay Shoemaker over 2 years ago in reply to Daveon Douglas

Intellectual 670 points

Hello,'

Im sorry, but that schematic doesn't show anything connected to ground. Just the DC coupling capacitor c7/c8 which is not tied to ground. Can you please clarify what you meant by "An example of this is implemented on our EVM as well. "

Thank you,

Jay

+1 Daveon Douglas over 2 years ago in reply to Jay Shoemaker

TI__Mastermind 27070 points

Hi Jay,

Apologies for the confusion. We recommend connecting an unused analog input to ground with an ~0.47uF capacitor. You can insert a jumper in place of R21 node, one pathway leading to analog input or otherwise shorted to ground.

Regards,

Audio
