TAA5412-Q1: Package Dimension

Muwei Zheng

Part Number: TAA5412-Q1

Tool/software:

Hi team,

My customer is looking into TAA5412-Q1 datasheet, and it seems there are two slightly different package dimension for WQFN(RTV) package: p.179 Mechanical Data and p.180 Package Outline.

Which package information should customer use for PCB design?

Thank you,

Muwei Zheng

3 months ago

0 Daveon Douglas 3 months ago

TI__Mastermind 27040 points

Hi Muwei,

Can you comment on the exact difference you're seeing. The images shown are for mechanical, board layout, and package outline so they are different.

The customer can reference this link for PCB design: https://vendor.ultralibrarian.com/TI/embedded/?gpn=TAA5412-Q1&package=RTV&pin=32&sid=0192782e2d05001242f628668b060506f006f06700bd0&c=1

0 Muwei Zheng 3 months ago in reply to Daveon Douglas

TI__Intellectual 1560 points

Hi Daveon,

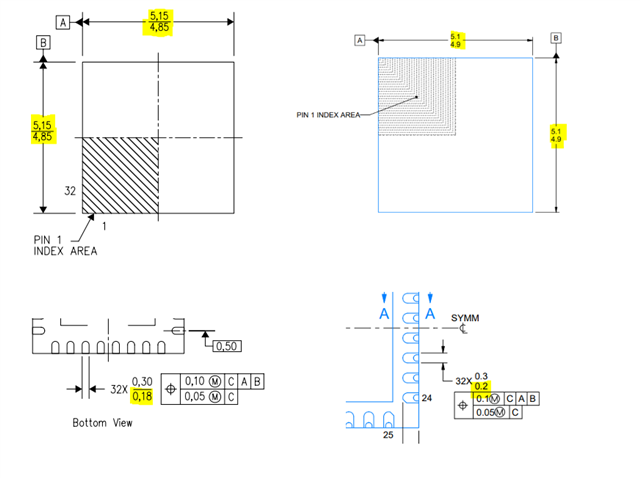

Below are some of the differences we see. Just very little differences but want to confirm which is correct.

0 Daveon Douglas 3 months ago in reply to Muwei Zheng

TI__Mastermind 27040 points

I believe this may be a formatting issue when drawing the diagrams, but I will loop you in a conversation with product engineer offline to confirm.
