TAS6754-Q1: about CPC

kenji gemma

Prodigy 90 points

Part Number: TAS6754-Q1

Tool/software:

Hello, Team,

Please confirm the CPC.

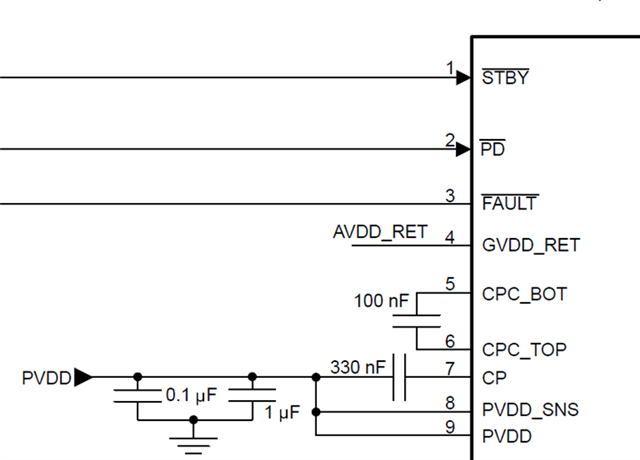

We would like to know the functions and voltage values of each of the following terminals.

#5 CPC_BOT

#6 CPC_TOP

#7 CP

Please confirm one more thing.We would like to know the internal operating frequency of the CPC circuit.

Regards,

Kenji Gemma

2 months ago

0 Shadow He 2 months ago

TI__Mastermind 49770 points

Hi Kenji

The frequency is around 1MHz.

0 kenji gemma 2 months ago in reply to Shadow He

Prodigy 90 points

Hi Shadow-san,

Thank you for your prompt response.
OK, 1 MHz, thank you for the information.

How about the voltage information?

Regards,

Kenji Gemma

0 Shadow He 2 months ago in reply to kenji gemma

TI__Mastermind 49770 points

Hi Kenji

kenji gemma said:
How about the voltage information?

When into PLAY mode, CP will be PVDD+5V.

Between CBC_TOP and CBC_BOT, it's also 5V. Each of the pin will switching with PVDD level. You could check their waveform to find out.

0 kenji gemma 2 months ago in reply to Shadow He

Prodigy 90 points

Hi Shadow-san,

Thank you for your response.

>You could check their waveform to find out.

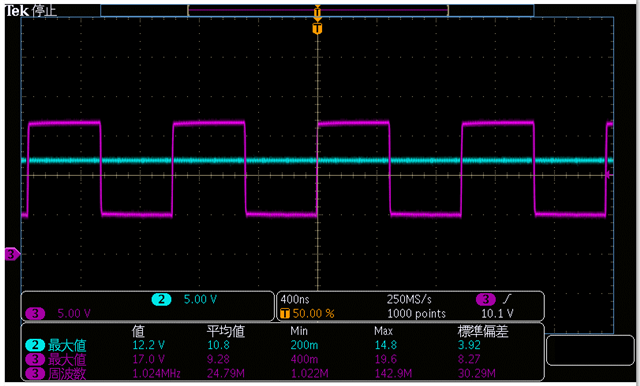

We checked the waveform, and the results are as follows. If you notice any problems with this waveform, please let us know.
The blue line is PVDD. Another line is CPC_TOP.

By the way, where is the power generated by the charge pump supplied?

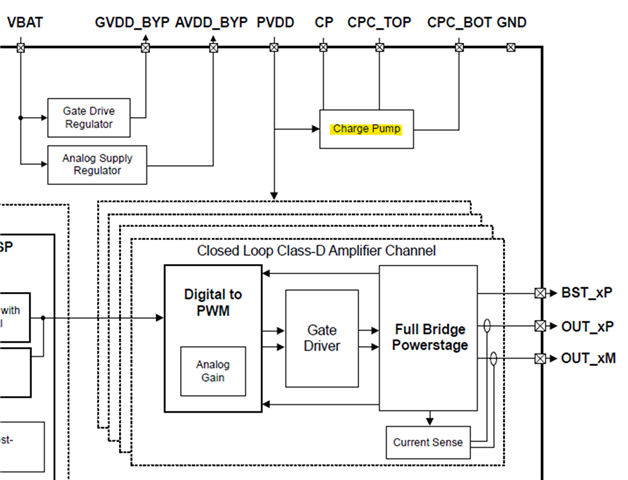

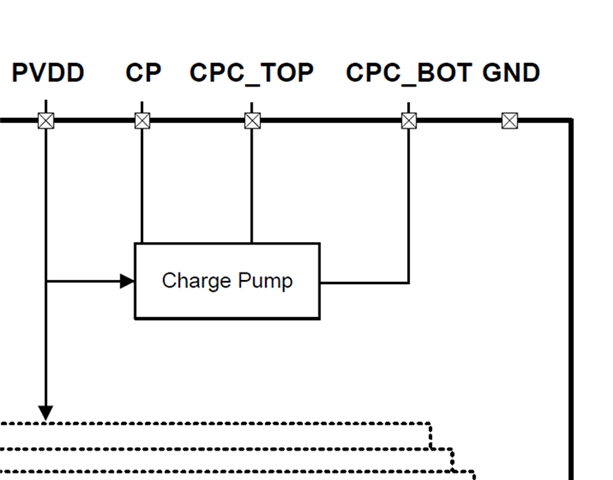

We were unable to determine this from the block diagram in the data sheet.

Regards,

Kenji Gemma

+1 Shadow He 2 months ago in reply to kenji gemma

TI__Mastermind 49770 points

Hi Kenji

kenji gemma said:
By the way, where is the power generated by the charge pump supplied?

The charge pump generated 5V power for OUTM high side drive, coming from GVDD.
