TAC5212: Audio output problem in single-ended mode

De Bug

Other Parts Discussed in Thread: TAC5212

Fullscreen line-out-differential.log Download

Simple mixer control 'Playback Decimation Filter',0 Capabilities: enum Items: 'Linear Phase' 'Low Latency' 'Ultra-low Latency' Item0: 'Linear Phase' Simple mixer control 'ADC1 Audio BW',0 Capabilities: enum Items: 'Audio BW 24-kHz' 'Wide BW 96-kHz' Item0: 'Audio BW 24-kHz' Simple mixer control 'ADC1 Common-mode Tolerance',0 Capabilities: enum Items: 'AC Coupled with 100mVpp' 'AC/DC Coupled with 1Vpp' 'AC/DC Coupled with Rail-to-rail' Item0: 'AC/DC Coupled with 1Vpp' Simple mixer control 'ADC1 Config',0 Capabilities: enum Items: 'Differential' 'Single-ended' 'Single-ended mux INxP' 'Single-ended mux INxM' Item0: 'Differential' Simple mixer control 'ADC1 Digital',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 255 Mono: Capture 161 [63%] [0.50dB] Simple mixer control 'ADC1 Fine',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 255 Mono: Capture 128 [50%] [-0.05dB] Simple mixer control 'ADC1 Full-Scale',0 Capabilities: enum Items: '2/10-VRMS' '4/5-VRMS' Item0: '2/10-VRMS' Simple mixer control 'ADC1 Phase',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 63 Mono: Capture 0 [0%] Simple mixer control 'ADC2 Audio BW',0 Capabilities: enum Items: 'Audio BW 24-kHz' 'Wide BW 96-kHz' Item0: 'Audio BW 24-kHz' Simple mixer control 'ADC2 Common-mode Tolerance',0 Capabilities: enum Items: 'AC Coupled with 100mVpp' 'AC/DC Coupled with 1Vpp' 'AC/DC Coupled with Rail-to-rail' Item0: 'AC/DC Coupled with 1Vpp' Simple mixer control 'ADC2 Config',0 Capabilities: enum Items: 'Differential' 'Single-ended' Item0: 'Differential' Simple mixer control 'ADC2 Digital',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 255 Mono: Capture 161 [63%] [0.50dB] Simple mixer control 'ADC2 Fine',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 255 Mono: Capture 128 [50%] [-0.05dB] Simple mixer control 'ADC2 Full-Scale',0 Capabilities: enum Items: '2/10-VRMS' '4/5-VRMS' Item0: '2/10-VRMS' Simple mixer control 'ADC2 Phase',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 63 Mono: Capture 0 [0%] Simple mixer control 'ASI_RX_CH1_EN',0 Capabilities: pswitch pswitch-joined Playback channels: Mono Mono: Playback [on] Simple mixer control 'ASI_RX_CH2_EN',0 Capabilities: pswitch pswitch-joined Playback channels: Mono Mono: Playback [on] Simple mixer control 'ASI_RX_CH3_EN',0 Capabilities: pswitch pswitch-joined Playback channels: Mono Mono: Playback [off] Simple mixer control 'ASI_RX_CH4_EN',0 Capabilities: pswitch pswitch-joined Playback channels: Mono Mono: Playback [off] Simple mixer control 'ASI_RX_CH5_EN Playback',0 Capabilities: enum Items: 'Disable' 'DAC channel data' 'ADC channel output loopback' Item0: 'Disable' Simple mixer control 'ASI_RX_CH6_EN Playback',0 Capabilities: enum Items: 'Disable' 'DAC channel data' 'ADC channel output loopback' 'Channel Input to ICLA device' Item0: 'Disable' Simple mixer control 'ASI_RX_CH7_EN Playback',0 Capabilities: enum Items: 'Disable' 'DAC channel data' 'ADC channel output loopback' 'Channel Input to ICLA device' Item0: 'Disable' Simple mixer control 'ASI_RX_CH8_EN Playback',0 Capabilities: enum Items: 'Disable' 'DAC channel data' 'ADC channel output loopback' 'Channel Input to ICLA device' Item0: 'Disable' Simple mixer control 'ASI_TX_CH1_EN',0 Capabilities: cswitch cswitch-joined Capture channels: Mono Mono: Capture [off] Simple mixer control 'ASI_TX_CH2_EN',0 Capabilities: cswitch cswitch-joined Capture channels: Mono Mono: Capture [off] Simple mixer control 'ASI_TX_CH3_EN',0 Capabilities: cswitch cswitch-joined Capture channels: Mono Mono: Capture [off] Simple mixer control 'ASI_TX_CH4_EN',0 Capabilities: cswitch cswitch-joined Capture channels: Mono Mono: Capture [off] Simple mixer control 'ASI_TX_CH5_CFG',0 Capabilities: enum Items: 'Tristate' 'Input Channel Loopback data' 'Echo reference Channel data' Item0: 'Tristate' Simple mixer control 'ASI_TX_CH6_CFG',0 Capabilities: enum Items: 'Tristate' 'Input Channel Loopback data' 'Echo reference Channel data' Item0: 'Tristate' Simple mixer control 'ASI_TX_CH7_CFG',0 Capabilities: enum Items: 'Tristate' 'Vbat_Wlby2,Temp_Wlby2' 'echo_ref_ch1,echo_ref_ch2' Item0: 'Tristate' Simple mixer control 'ASI_TX_CH8_CFG',0 Capabilities: enum Items: 'Tristate' 'ICLA data' Item0: 'Tristate' Simple mixer control 'DAC1 Audio BW',0 Capabilities: enum Items: 'Audio BW 24-kHz' 'Wide BW 96-kHz' Item0: 'Audio BW 24-kHz' Simple mixer control 'DAC1 CHA Digital',0 Capabilities: pvolume pvolume-joined Playback channels: Mono Limits: Playback 0 - 255 Mono: Playback 201 [79%] [0.50dB] Simple mixer control 'DAC1 CHA Gain Calibration',0 Capabilities: pvolume pvolume-joined Playback channels: Mono Limits: Playback 0 - 15 Mono: Playback 8 [53%] [0.00dB] Simple mixer control 'DAC1 CHB Digital',0 Capabilities: pvolume pvolume-joined Playback channels: Mono Limits: Playback 0 - 255 Mono: Playback 201 [79%] [0.50dB] Simple mixer control 'DAC1 CHB Gain Calibration',0 Capabilities: pvolume pvolume-joined Playback channels: Mono Limits: Playback 0 - 15 Mono: Playback 8 [53%] [0.00dB] Simple mixer control 'DAC2 Audio BW',0 Capabilities: enum Items: 'Audio BW 24-kHz' 'Wide BW 96-kHz' Item0: 'Audio BW 24-kHz' Simple mixer control 'DAC2 CHA Digital',0 Capabilities: pvolume pvolume-joined Playback channels: Mono Limits: Playback 0 - 255 Mono: Playback 201 [79%] [0.50dB] Simple mixer control 'DAC2 CHA Gain Calibration',0 Capabilities: pvolume pvolume-joined Playback channels: Mono Limits: Playback 0 - 15 Mono: Playback 8 [53%] [0.00dB] Simple mixer control 'DAC2 CHB Digital',0 Capabilities: pvolume pvolume-joined Playback channels: Mono Limits: Playback 0 - 255 Mono: Playback 201 [79%] [0.50dB] Simple mixer control 'DAC2 CHB Gain Calibration',0 Capabilities: pvolume pvolume-joined Playback channels: Mono Limits: Playback 0 - 15 Mono: Playback 8 [53%] [0.00dB] Simple mixer control 'IN1 Source Mux',0 Capabilities: enum Items: 'Analog' 'PDM' Item0: 'Analog' Simple mixer control 'IN2 Source Mux',0 Capabilities: enum Items: 'Analog' 'PDM' Item0: 'Analog' Simple mixer control 'OUT1M Analog Level',0 Capabilities: pvolume pvolume-joined Playback channels: Mono Limits: Playback 0 - 6 Mono: Playback 2 [33%] [0.00dB] Simple mixer control 'OUT1P Analog Level',0 Capabilities: pvolume pvolume-joined Playback channels: Mono Limits: Playback 0 - 6 Mono: Playback 2 [33%] [0.00dB] Simple mixer control 'OUT1x Config',0 Capabilities: enum Items: 'Differential' 'Stereo Single-ended' 'Mono Single-ended at OUTxP only' 'Mono Single-ended at OUTxM only' 'Pseudo differential with OUTxM as VCOM' 'Pseudo differential with OUTxM as external sensing' 'Pseudo differential with OUTxP as VCOM' Item0: 'Differential' Simple mixer control 'OUT1x Driver',0 Capabilities: enum Items: 'Line-out' 'Headphone' '4 ohm' 'FD Receiver/Debug' Item0: 'Line-out' Simple mixer control 'OUT1x Source',0 Capabilities: enum Items: 'Disabled' 'DAC Input' 'Analog Bypass' 'DAC + Analog Bypass Mix' 'DAC -> OUTxP, INxP -> OUTxM' 'INxM -> OUTxP, DAC -> OUTxM' Item0: 'DAC Input' Simple mixer control 'OUT2M Analog Level',0 Capabilities: pvolume pvolume-joined Playback channels: Mono Limits: Playback 0 - 6 Mono: Playback 2 [33%] [0.00dB] Simple mixer control 'OUT2P Analog Level',0 Capabilities: pvolume pvolume-joined Playback channels: Mono Limits: Playback 0 - 6 Mono: Playback 2 [33%] [0.00dB] Simple mixer control 'OUT2x Config',0 Capabilities: enum Items: 'Differential' 'Stereo Single-ended' 'Mono Single-ended at OUTxP only' 'Mono Single-ended at OUTxM only' 'Pseudo differential with OUTxM as VCOM' 'Pseudo differential with OUTxP as VCOM' Item0: 'Differential' Simple mixer control 'OUT2x Driver',0 Capabilities: enum Items: 'Line-out' 'Headphone' '4 ohm' 'FD Receiver/Debug' Item0: 'Line-out' Simple mixer control 'OUT2x Source',0 Capabilities: enum Items: 'Disabled' 'DAC Input' 'Analog Bypass' 'DAC + Analog Bypass Mix' 'DAC -> OUTxP, INxP -> OUTxM' 'INxM -> OUTxP, DAC -> OUTxM' Item0: 'DAC Input' Simple mixer control 'PDM Clk Divider',0 Capabilities: enum Items: '2.8224 MHz or 3.072 MHz' '1.4112 MHz or 1.536 MHz' '705.6 kHz or 768 kHz' '5.6448 MHz or 6.144 MHz' Item0: '2.8224 MHz or 3.072 MHz' Simple mixer control 'PDM1 Digital',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 255 Mono: Capture 161 [63%] [0.50dB] Simple mixer control 'PDM1 Fine',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 255 Mono: Capture 128 [50%] [-0.05dB] Simple mixer control 'PDM1 Phase',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 63 Mono: Capture 0 [0%] Simple mixer control 'PDM2 Digital',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 255 Mono: Capture 161 [63%] [0.50dB] Simple mixer control 'PDM2 Fine',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 255 Mono: Capture 128 [50%] [-0.05dB] Simple mixer control 'PDM2 Phase',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 63 Mono: Capture 0 [0%] Simple mixer control 'PDM3 Digital',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 255 Mono: Capture 161 [63%] [0.50dB] Simple mixer control 'PDM3 Fine',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 255 Mono: Capture 128 [50%] [-0.05dB] Simple mixer control 'PDM3 Phase',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 63 Mono: Capture 0 [0%] Simple mixer control 'PDM4 Digital',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 255 Mono: Capture 161 [63%] [0.50dB] Simple mixer control 'PDM4 Fine',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 255 Mono: Capture 128 [50%] [-0.05dB] Simple mixer control 'PDM4 Phase',0 Capabilities: cvolume cvolume-joined Capture channels: Mono Limits: Capture 0 - 63 Mono: Capture 0 [0%] Simple mixer control 'Record Decimation Filter',0 Capabilities: enum Items: 'Linear Phase' 'Low Latency' 'Ultra-low Latency' Item0: 'Linear Phase'

Fullscreen headphone_single-ended.log Download

Simple mixer control 'Playback Decimation Filter',0
  Capabilities: enum
  Items: 'Linear Phase' 'Low Latency' 'Ultra-low Latency'
  Item0: 'Linear Phase'
Simple mixer control 'ADC1 Audio BW',0
  Capabilities: enum
  Items: 'Audio BW 24-kHz' 'Wide BW 96-kHz'
  Item0: 'Audio BW 24-kHz'
Simple mixer control 'ADC1 Common-mode Tolerance',0
  Capabilities: enum
  Items: 'AC Coupled with 100mVpp' 'AC/DC Coupled with 1Vpp' 'AC/DC Coupled with Rail-to-rail'
  Item0: 'AC/DC Coupled with 1Vpp'
Simple mixer control 'ADC1 Config',0
  Capabilities: enum
  Items: 'Differential' 'Single-ended' 'Single-ended mux INxP' 'Single-ended mux INxM'
  Item0: 'Differential'
Simple mixer control 'ADC1 Digital',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 161 [63%] [0.50dB]
Simple mixer control 'ADC1 Fine',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 128 [50%] [-0.05dB]
Simple mixer control 'ADC1 Full-Scale',0
  Capabilities: enum
  Items: '2/10-VRMS' '4/5-VRMS'
  Item0: '2/10-VRMS'
Simple mixer control 'ADC1 Phase',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 63
  Mono: Capture 0 [0%]
Simple mixer control 'ADC2 Audio BW',0
  Capabilities: enum
  Items: 'Audio BW 24-kHz' 'Wide BW 96-kHz'
  Item0: 'Audio BW 24-kHz'
Simple mixer control 'ADC2 Common-mode Tolerance',0
  Capabilities: enum
  Items: 'AC Coupled with 100mVpp' 'AC/DC Coupled with 1Vpp' 'AC/DC Coupled with Rail-to-rail'
  Item0: 'AC/DC Coupled with 1Vpp'
Simple mixer control 'ADC2 Config',0
  Capabilities: enum
  Items: 'Differential' 'Single-ended'
  Item0: 'Differential'
Simple mixer control 'ADC2 Digital',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 161 [63%] [0.50dB]
Simple mixer control 'ADC2 Fine',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 128 [50%] [-0.05dB]
Simple mixer control 'ADC2 Full-Scale',0
  Capabilities: enum
  Items: '2/10-VRMS' '4/5-VRMS'
  Item0: '2/10-VRMS'
Simple mixer control 'ADC2 Phase',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 63
  Mono: Capture 0 [0%]
Simple mixer control 'ASI_RX_CH1_EN',0
  Capabilities: pswitch pswitch-joined
  Playback channels: Mono
  Mono: Playback [on]
Simple mixer control 'ASI_RX_CH2_EN',0
  Capabilities: pswitch pswitch-joined
  Playback channels: Mono
  Mono: Playback [on]
Simple mixer control 'ASI_RX_CH3_EN',0
  Capabilities: pswitch pswitch-joined
  Playback channels: Mono
  Mono: Playback [off]
Simple mixer control 'ASI_RX_CH4_EN',0
  Capabilities: pswitch pswitch-joined
  Playback channels: Mono
  Mono: Playback [off]
Simple mixer control 'ASI_RX_CH5_EN Playback',0
  Capabilities: enum
  Items: 'Disable' 'DAC channel data' 'ADC channel output loopback'
  Item0: 'Disable'
Simple mixer control 'ASI_RX_CH6_EN Playback',0
  Capabilities: enum
  Items: 'Disable' 'DAC channel data' 'ADC channel output loopback' 'Channel Input to ICLA device'
  Item0: 'Disable'
Simple mixer control 'ASI_RX_CH7_EN Playback',0
  Capabilities: enum
  Items: 'Disable' 'DAC channel data' 'ADC channel output loopback' 'Channel Input to ICLA device'
  Item0: 'Disable'
Simple mixer control 'ASI_RX_CH8_EN Playback',0
  Capabilities: enum
  Items: 'Disable' 'DAC channel data' 'ADC channel output loopback' 'Channel Input to ICLA device'
  Item0: 'Disable'
Simple mixer control 'ASI_TX_CH1_EN',0
  Capabilities: cswitch cswitch-joined
  Capture channels: Mono
  Mono: Capture [off]
Simple mixer control 'ASI_TX_CH2_EN',0
  Capabilities: cswitch cswitch-joined
  Capture channels: Mono
  Mono: Capture [off]
Simple mixer control 'ASI_TX_CH3_EN',0
  Capabilities: cswitch cswitch-joined
  Capture channels: Mono
  Mono: Capture [off]
Simple mixer control 'ASI_TX_CH4_EN',0
  Capabilities: cswitch cswitch-joined
  Capture channels: Mono
  Mono: Capture [off]
Simple mixer control 'ASI_TX_CH5_CFG',0
  Capabilities: enum
  Items: 'Tristate' 'Input Channel Loopback data' 'Echo reference Channel data'
  Item0: 'Tristate'
Simple mixer control 'ASI_TX_CH6_CFG',0
  Capabilities: enum
  Items: 'Tristate' 'Input Channel Loopback data' 'Echo reference Channel data'
  Item0: 'Tristate'
Simple mixer control 'ASI_TX_CH7_CFG',0
  Capabilities: enum
  Items: 'Tristate' 'Vbat_Wlby2,Temp_Wlby2' 'echo_ref_ch1,echo_ref_ch2'
  Item0: 'Tristate'
Simple mixer control 'ASI_TX_CH8_CFG',0
  Capabilities: enum
  Items: 'Tristate' 'ICLA data'
  Item0: 'Tristate'
Simple mixer control 'DAC1 Audio BW',0
  Capabilities: enum
  Items: 'Audio BW 24-kHz' 'Wide BW 96-kHz'
  Item0: 'Audio BW 24-kHz'
Simple mixer control 'DAC1 CHA Digital',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 255
  Mono: Playback 100 [39%] [-50.00dB]
Simple mixer control 'DAC1 CHA Gain Calibration',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 15
  Mono: Playback 8 [53%] [0.00dB]
Simple mixer control 'DAC1 CHB Digital',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 255
  Mono: Playback 100 [39%] [-50.00dB]
Simple mixer control 'DAC1 CHB Gain Calibration',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 15
  Mono: Playback 8 [53%] [0.00dB]
Simple mixer control 'DAC2 Audio BW',0
  Capabilities: enum
  Items: 'Audio BW 24-kHz' 'Wide BW 96-kHz'
  Item0: 'Audio BW 24-kHz'
Simple mixer control 'DAC2 CHA Digital',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 255
  Mono: Playback 201 [79%] [0.50dB]
Simple mixer control 'DAC2 CHA Gain Calibration',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 15
  Mono: Playback 8 [53%] [0.00dB]
Simple mixer control 'DAC2 CHB Digital',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 255
  Mono: Playback 201 [79%] [0.50dB]
Simple mixer control 'DAC2 CHB Gain Calibration',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 15
  Mono: Playback 8 [53%] [0.00dB]
Simple mixer control 'IN1 Source Mux',0
  Capabilities: enum
  Items: 'Analog' 'PDM'
  Item0: 'Analog'
Simple mixer control 'IN2 Source Mux',0
  Capabilities: enum
  Items: 'Analog' 'PDM'
  Item0: 'Analog'
Simple mixer control 'OUT1M Analog Level',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 6
  Mono: Playback 2 [33%] [0.00dB]
Simple mixer control 'OUT1P Analog Level',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 6
  Mono: Playback 2 [33%] [0.00dB]
Simple mixer control 'OUT1x Config',0
  Capabilities: enum
  Items: 'Differential' 'Stereo Single-ended' 'Mono Single-ended at OUTxP only' 'Mono Single-ended at OUTxM only' 'Pseudo differential with OUTxM as VCOM' 'Pseudo differential with OUTxM as external sensing' 'Pseudo differential with OUTxP as VCOM'
  Item0: 'Stereo Single-ended'
Simple mixer control 'OUT1x Driver',0
  Capabilities: enum
  Items: 'Line-out' 'Headphone' '4 ohm' 'FD Receiver/Debug'
  Item0: 'Headphone'
Simple mixer control 'OUT1x Source',0
  Capabilities: enum
  Items: 'Disabled' 'DAC Input' 'Analog Bypass' 'DAC + Analog Bypass Mix' 'DAC -> OUTxP, INxP -> OUTxM' 'INxM -> OUTxP, DAC -> OUTxM'
  Item0: 'DAC Input'
Simple mixer control 'OUT2M Analog Level',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 6
  Mono: Playback 2 [33%] [0.00dB]
Simple mixer control 'OUT2P Analog Level',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 6
  Mono: Playback 2 [33%] [0.00dB]
Simple mixer control 'OUT2x Config',0
  Capabilities: enum
  Items: 'Differential' 'Stereo Single-ended' 'Mono Single-ended at OUTxP only' 'Mono Single-ended at OUTxM only' 'Pseudo differential with OUTxM as VCOM' 'Pseudo differential with OUTxP as VCOM'
  Item0: 'Stereo Single-ended'
Simple mixer control 'OUT2x Driver',0
  Capabilities: enum
  Items: 'Line-out' 'Headphone' '4 ohm' 'FD Receiver/Debug'
  Item0: 'Headphone'
Simple mixer control 'OUT2x Source',0
  Capabilities: enum
  Items: 'Disabled' 'DAC Input' 'Analog Bypass' 'DAC + Analog Bypass Mix' 'DAC -> OUTxP, INxP -> OUTxM' 'INxM -> OUTxP, DAC -> OUTxM'
  Item0: 'DAC Input'
Simple mixer control 'PDM Clk Divider',0
  Capabilities: enum
  Items: '2.8224 MHz or 3.072 MHz' '1.4112 MHz or 1.536 MHz' '705.6 kHz or 768 kHz' '5.6448 MHz or 6.144 MHz'
  Item0: '2.8224 MHz or 3.072 MHz'
Simple mixer control 'PDM1 Digital',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 161 [63%] [0.50dB]
Simple mixer control 'PDM1 Fine',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 128 [50%] [-0.05dB]
Simple mixer control 'PDM1 Phase',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 63
  Mono: Capture 0 [0%]
Simple mixer control 'PDM2 Digital',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 161 [63%] [0.50dB]
Simple mixer control 'PDM2 Fine',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 128 [50%] [-0.05dB]
Simple mixer control 'PDM2 Phase',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 63
  Mono: Capture 0 [0%]
Simple mixer control 'PDM3 Digital',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 161 [63%] [0.50dB]
Simple mixer control 'PDM3 Fine',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 128 [50%] [-0.05dB]
Simple mixer control 'PDM3 Phase',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 63
  Mono: Capture 0 [0%]
Simple mixer control 'PDM4 Digital',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 161 [63%] [0.50dB]
Simple mixer control 'PDM4 Fine',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 128 [50%] [-0.05dB]
Simple mixer control 'PDM4 Phase',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 63
  Mono: Capture 0 [0%]
Simple mixer control 'Record Decimation Filter',0
  Capabilities: enum
  Items: 'Linear Phase' 'Low Latency' 'Ultra-low Latency'
  Item0: 'Linear Phase'

Per specification, Figure 7-24 when HP and line- out are both in single ended configuration, both carry the same stereo signal on the P and M pins.

Using the TAC5212 driver branch 5.15, differential output on both HP P+M and LO P+M is correct. Both outputs show differential signals (P/M levels are inverted). However when changing to single ended (no matter HP,Line or 4Ohm) , only the HP Left channel (P) has audio. the Line out M&P and HP right (M) do not output any signal. Measured on TRS output and DAC outputs directly.

amixer -c 0 cset iface=MIXER,name='ASI_RX_CH1_EN Switch' on
amixer -c 0 cset iface=MIXER,name='OUT1x Config' 'Stereo Single-ended'
amixer -c 0 cset iface=MIXER,name='OUT1x Driver' 'Headphone'
amixer -c 0 cset iface=MIXER,name='OUT1x Source' 'DAC Input'
#amixer -c 0 cset iface=MIXER,name='ASI_TX_CH1_EN Switch' on
#amixer -c 0 cset iface=MIXER,name='ASI_RX_CH2 Slot' Slot16

amixer -c 0 cset iface=MIXER,name='ASI_RX_CH2_EN Switch' on
amixer -c 0 cset iface=MIXER,name='OUT2x Config' 'Stereo Single-ended'
amixer -c 0 cset iface=MIXER,name='OUT2x Driver' 'Headphone'
amixer -c 0 cset iface=MIXER,name='OUT2x Source' 'DAC Input'

AI believes there is a flaw in the TAC5212 :-) hope not.

AI Analsysis.pdf

15 days ago

0 Niranjan Holalu Yogendra 14 days ago

TI__Intellectual 770 points

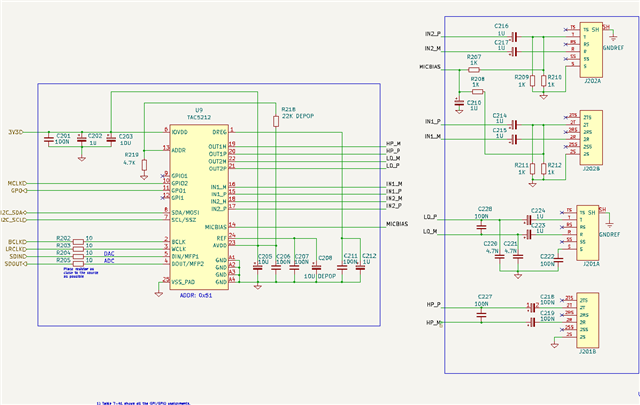

De Bug Hi, Could we get the regdump and schematic on how it is being used. I will check internally and come back. thanks

0 De Bug 14 days ago in reply to Niranjan Holalu Yogendra

Intellectual 290 points

The register settings are in the ALSA amixer dump above. the I2C address is used by the driver, so i2c dump is forced dump. The schematic as follows.

All the in series in and outputs are 1 uF. C218 and C219 are also 1uF. C222 is 0R to GND. Other caps and resistors are not assembled (yet)

The TAC5212 is in slave mode (as the TAC5x1x branch 5.15 driver only supports that mode) so MCLK and GPO1 are not used .

Fullscreen i2cdump_regs_hp_single-ended.log Download

     0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f    0123456789abcdef
00: 00 00 01 00 00 15 35 00 00 00 40 10 00 00 04 00    ..?..?5...@?..?.
10: 52 80 00 00 00 00 00 00 40 00 70 00 00 00 00 10    R?......@.p....?
20: 02 03 04 05 06 07 00 00 20 30 02 03 04 05 06 07    ??????.. 0??????
30: 00 00 00 00 40 00 00 20 00 00 00 00 00 00 00 00    ....@.. ........
40: 00 00 11 54 00 00 00 00 00 00 00 00 2e 0c 00 00    ..?T.........?..
50: 04 00 a1 80 00 04 00 a1 80 00 00 a1 80 00 00 a1    ?.??.?.??..??..?
60: 80 00 00 00 24 60 20 64 80 64 80 24 60 20 c9 80    ?...$` d?d?$` ??
70: c9 80 18 18 00 00 00 a0 00 00 80 00 c0 10 15 00    ????...?..?.???.
80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
a0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
b0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
c0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
d0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................

Fullscreen i2cdump_regs_line_differential.log Download

     0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f    0123456789abcdef
00: 00 00 01 00 00 15 35 00 00 00 40 10 00 00 00 00    ..?..?5...@?....
10: 52 80 00 00 00 00 00 00 40 00 70 00 00 00 00 10    R?......@.p....?
20: 02 03 04 05 06 07 00 00 20 30 02 03 04 05 06 07    ??????.. 0??????
30: 00 00 00 00 40 00 00 20 00 00 00 00 00 00 00 00    ....@.. ........
40: 00 00 11 54 00 00 00 00 00 00 00 00 2e 0c 00 00    ..?T.........?..
50: 04 00 a1 80 00 04 00 a1 80 00 00 a1 80 00 00 a1    ?.??.?.??..??..?
60: 80 00 00 00 20 20 20 c9 80 c9 80 20 20 20 c9 80    ?...   ????   ??
70: c9 80 18 18 00 00 00 a0 00 00 80 00 c0 10 dc 00    ????...?..?.???.
80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
a0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
b0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
c0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
d0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................

0 Niranjan Holalu Yogendra 14 days ago in reply to De Bug

TI__Intellectual 770 points

The device seems to be powered down in both the regdump and mixer dump. COuld we get the data when the device is powered on and running ?

0 De Bug 13 days ago in reply to Niranjan Holalu Yogendra

Intellectual 290 points

This post was updated a few times. This is the final one. (Sorry it is very very late here and made a few mistakes)

Here are the dumps here when this is running as follows. The VREF is around 2.4V when running, and returns to 0 a few seconds after stopping playback. I looked at the driver and it seems to ignore the "STANDBY" commands from the kernel call to the driver. (as in a previous post there is a switch statement and for "STANDBY" it just show ""break;" _ Not sure how it gets into standby. Perhaps default by itself (?)

P.S also notice that when switching back from headphone single ended to line out differential there is no outputs anymore. The board needs to be rebooted the board to get the analog output back. (assuming this involves a soft rest of the CODEC that does that ). in contrast, the switch back to Line out - differential seems to work after setting headphone-differential or line-out stereo single ended.

Sorry, this forum is so incredible buggy and slow to reach, especially when the US seems to start work. the code seems to have been deleted. I am trying to add it again

Fullscreen during_play.log Download

i2cdump -f 2 0x51
i2cdump: WARNING! This program can confuse your I2C bus
Continue? [y/N] y
     0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f    0123456789abcdef
00: 00 00 01 00 00 15 35 00 00 00 40 10 00 00 04 00    ..?..?5...@?..?.
10: 52 80 00 00 00 00 00 00 40 00 70 00 00 00 00 10    R?......@.p....?
20: 02 03 04 05 06 07 00 00 20 30 02 03 04 05 06 07    ??????.. 0??????
30: 00 00 00 00 40 00 00 20 00 00 00 00 00 00 78 00    ....@.. ......x.
40: 80 40 11 54 00 00 00 00 00 00 00 00 2e 0c 00 00    ?@?T.........?..
50: 04 00 a1 80 00 04 00 a1 80 00 00 a1 80 00 00 a1    ?.??.?.??..??..?
60: 80 00 00 00 24 60 20 64 80 64 80 24 60 20 c9 80    ?...$` d?d?$` ??
70: c9 80 18 18 00 00 0c a0 40 08 f0 00 c0 10 29 00    ????..??@??.??).
80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
a0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
b0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
c0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
d0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
amixer
Simple mixer control 'Playback Decimation Filter',0
  Capabilities: enum
  Items: 'Linear Phase' 'Low Latency' 'Ultra-low Latency'
  Item0: 'Linear Phase'
Simple mixer control 'ADC1 Audio BW',0
  Capabilities: enum
  Items: 'Audio BW 24-kHz' 'Wide BW 96-kHz'
  Item0: 'Audio BW 24-kHz'
Simple mixer control 'ADC1 Common-mode Tolerance',0
  Capabilities: enum
  Items: 'AC Coupled with 100mVpp' 'AC/DC Coupled with 1Vpp' 'AC/DC Coupled with Rail-to-rail'
  Item0: 'AC/DC Coupled with 1Vpp'
Simple mixer control 'ADC1 Config',0
  Capabilities: enum
  Items: 'Differential' 'Single-ended' 'Single-ended mux INxP' 'Single-ended mux INxM'
  Item0: 'Differential'
Simple mixer control 'ADC1 Digital',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 161 [63%] [0.50dB]
Simple mixer control 'ADC1 Fine',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 128 [50%] [-0.05dB]
Simple mixer control 'ADC1 Full-Scale',0
  Capabilities: enum
  Items: '2/10-VRMS' '4/5-VRMS'
  Item0: '2/10-VRMS'
Simple mixer control 'ADC1 Phase',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 63
  Mono: Capture 0 [0%]
Simple mixer control 'ADC2 Audio BW',0
  Capabilities: enum
  Items: 'Audio BW 24-kHz' 'Wide BW 96-kHz'
  Item0: 'Audio BW 24-kHz'
Simple mixer control 'ADC2 Common-mode Tolerance',0
  Capabilities: enum
  Items: 'AC Coupled with 100mVpp' 'AC/DC Coupled with 1Vpp' 'AC/DC Coupled with Rail-to-rail'
  Item0: 'AC/DC Coupled with 1Vpp'
Simple mixer control 'ADC2 Config',0
  Capabilities: enum
  Items: 'Differential' 'Single-ended'
  Item0: 'Differential'
Simple mixer control 'ADC2 Digital',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 161 [63%] [0.50dB]
Simple mixer control 'ADC2 Fine',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 128 [50%] [-0.05dB]
Simple mixer control 'ADC2 Full-Scale',0
  Capabilities: enum
  Items: '2/10-VRMS' '4/5-VRMS'
  Item0: '2/10-VRMS'
Simple mixer control 'ADC2 Phase',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 63
  Mono: Capture 0 [0%]
Simple mixer control 'ASI_RX_CH1_EN',0
  Capabilities: pswitch pswitch-joined
  Playback channels: Mono
  Mono: Playback [on]
Simple mixer control 'ASI_RX_CH2_EN',0
  Capabilities: pswitch pswitch-joined
  Playback channels: Mono
  Mono: Playback [on]
Simple mixer control 'ASI_RX_CH3_EN',0
  Capabilities: pswitch pswitch-joined
  Playback channels: Mono
  Mono: Playback [off]
Simple mixer control 'ASI_RX_CH4_EN',0
  Capabilities: pswitch pswitch-joined
  Playback channels: Mono
  Mono: Playback [off]
Simple mixer control 'ASI_RX_CH5_EN Playback',0
  Capabilities: enum
  Items: 'Disable' 'DAC channel data' 'ADC channel output loopback'
  Item0: 'Disable'
Simple mixer control 'ASI_RX_CH6_EN Playback',0
  Capabilities: enum
  Items: 'Disable' 'DAC channel data' 'ADC channel output loopback' 'Channel Input to ICLA device'
  Item0: 'Disable'
Simple mixer control 'ASI_RX_CH7_EN Playback',0
  Capabilities: enum
  Items: 'Disable' 'DAC channel data' 'ADC channel output loopback' 'Channel Input to ICLA device'
  Item0: 'Disable'
Simple mixer control 'ASI_RX_CH8_EN Playback',0
  Capabilities: enum
  Items: 'Disable' 'DAC channel data' 'ADC channel output loopback' 'Channel Input to ICLA device'
  Item0: 'Disable'
Simple mixer control 'ASI_TX_CH1_EN',0
  Capabilities: cswitch cswitch-joined
  Capture channels: Mono
  Mono: Capture [off]
Simple mixer control 'ASI_TX_CH2_EN',0
  Capabilities: cswitch cswitch-joined
  Capture channels: Mono
  Mono: Capture [off]
Simple mixer control 'ASI_TX_CH3_EN',0
  Capabilities: cswitch cswitch-joined
  Capture channels: Mono
  Mono: Capture [off]
Simple mixer control 'ASI_TX_CH4_EN',0
  Capabilities: cswitch cswitch-joined
  Capture channels: Mono
  Mono: Capture [off]
Simple mixer control 'ASI_TX_CH5_CFG',0
  Capabilities: enum
  Items: 'Tristate' 'Input Channel Loopback data' 'Echo reference Channel data'
  Item0: 'Tristate'
Simple mixer control 'ASI_TX_CH6_CFG',0
  Capabilities: enum
  Items: 'Tristate' 'Input Channel Loopback data' 'Echo reference Channel data'
  Item0: 'Tristate'
Simple mixer control 'ASI_TX_CH7_CFG',0
  Capabilities: enum
  Items: 'Tristate' 'Vbat_Wlby2,Temp_Wlby2' 'echo_ref_ch1,echo_ref_ch2'
  Item0: 'Tristate'
Simple mixer control 'ASI_TX_CH8_CFG',0
  Capabilities: enum
  Items: 'Tristate' 'ICLA data'
  Item0: 'Tristate'
Simple mixer control 'DAC1 Audio BW',0
  Capabilities: enum
  Items: 'Audio BW 24-kHz' 'Wide BW 96-kHz'
  Item0: 'Audio BW 24-kHz'
Simple mixer control 'DAC1 CHA Digital',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 255
  Mono: Playback 100 [39%] [-50.00dB]
Simple mixer control 'DAC1 CHA Gain Calibration',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 15
  Mono: Playback 8 [53%] [0.00dB]
Simple mixer control 'DAC1 CHB Digital',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 255
  Mono: Playback 100 [39%] [-50.00dB]
Simple mixer control 'DAC1 CHB Gain Calibration',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 15
  Mono: Playback 8 [53%] [0.00dB]
Simple mixer control 'DAC2 Audio BW',0
  Capabilities: enum
  Items: 'Audio BW 24-kHz' 'Wide BW 96-kHz'
  Item0: 'Audio BW 24-kHz'
Simple mixer control 'DAC2 CHA Digital',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 255
  Mono: Playback 201 [79%] [0.50dB]
Simple mixer control 'DAC2 CHA Gain Calibration',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 15
  Mono: Playback 8 [53%] [0.00dB]
Simple mixer control 'DAC2 CHB Digital',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 255
  Mono: Playback 201 [79%] [0.50dB]
Simple mixer control 'DAC2 CHB Gain Calibration',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 15
  Mono: Playback 8 [53%] [0.00dB]
Simple mixer control 'IN1 Source Mux',0
  Capabilities: enum
  Items: 'Analog' 'PDM'
  Item0: 'Analog'
Simple mixer control 'IN2 Source Mux',0
  Capabilities: enum
  Items: 'Analog' 'PDM'
  Item0: 'Analog'
Simple mixer control 'OUT1M Analog Level',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 6
  Mono: Playback 2 [33%] [0.00dB]
Simple mixer control 'OUT1P Analog Level',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 6
  Mono: Playback 2 [33%] [0.00dB]
Simple mixer control 'OUT1x Config',0
  Capabilities: enum
  Items: 'Differential' 'Stereo Single-ended' 'Mono Single-ended at OUTxP only' 'Mono Single-ended at OUTxM only' 'Pseudo differential with OUTxM as VCOM' 'Pseudo differential with OUTxM as external sensing' 'Pseudo differential with OUTxP as VCOM'
  Item0: 'Stereo Single-ended'
Simple mixer control 'OUT1x Driver',0
  Capabilities: enum
  Items: 'Line-out' 'Headphone' '4 ohm' 'FD Receiver/Debug'
  Item0: 'Headphone'
Simple mixer control 'OUT1x Source',0
  Capabilities: enum
  Items: 'Disabled' 'DAC Input' 'Analog Bypass' 'DAC + Analog Bypass Mix' 'DAC -> OUTxP, INxP -> OUTxM' 'INxM -> OUTxP, DAC -> OUTxM'
  Item0: 'DAC Input'
Simple mixer control 'OUT2M Analog Level',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 6
  Mono: Playback 2 [33%] [0.00dB]
Simple mixer control 'OUT2P Analog Level',0
  Capabilities: pvolume pvolume-joined
  Playback channels: Mono
  Limits: Playback 0 - 6
  Mono: Playback 2 [33%] [0.00dB]
Simple mixer control 'OUT2x Config',0
  Capabilities: enum
  Items: 'Differential' 'Stereo Single-ended' 'Mono Single-ended at OUTxP only' 'Mono Single-ended at OUTxM only' 'Pseudo differential with OUTxM as VCOM' 'Pseudo differential with OUTxP as VCOM'
  Item0: 'Stereo Single-ended'
Simple mixer control 'OUT2x Driver',0
  Capabilities: enum
  Items: 'Line-out' 'Headphone' '4 ohm' 'FD Receiver/Debug'
  Item0: 'Headphone'
Simple mixer control 'OUT2x Source',0
  Capabilities: enum
  Items: 'Disabled' 'DAC Input' 'Analog Bypass' 'DAC + Analog Bypass Mix' 'DAC -> OUTxP, INxP -> OUTxM' 'INxM -> OUTxP, DAC -> OUTxM'
  Item0: 'DAC Input'
Simple mixer control 'PDM Clk Divider',0
  Capabilities: enum
  Items: '2.8224 MHz or 3.072 MHz' '1.4112 MHz or 1.536 MHz' '705.6 kHz or 768 kHz' '5.6448 MHz or 6.144 MHz'
  Item0: '2.8224 MHz or 3.072 MHz'
Simple mixer control 'PDM1 Digital',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 161 [63%] [0.50dB]
Simple mixer control 'PDM1 Fine',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 128 [50%] [-0.05dB]
Simple mixer control 'PDM1 Phase',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 63
  Mono: Capture 0 [0%]
Simple mixer control 'PDM2 Digital',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 161 [63%] [0.50dB]
Simple mixer control 'PDM2 Fine',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 128 [50%] [-0.05dB]
Simple mixer control 'PDM2 Phase',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 63
  Mono: Capture 0 [0%]
Simple mixer control 'PDM3 Digital',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 161 [63%] [0.50dB]
Simple mixer control 'PDM3 Fine',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 128 [50%] [-0.05dB]
Simple mixer control 'PDM3 Phase',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 63
  Mono: Capture 0 [0%]
Simple mixer control 'PDM4 Digital',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 161 [63%] [0.50dB]
Simple mixer control 'PDM4 Fine',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 255
  Mono: Capture 128 [50%] [-0.05dB]
Simple mixer control 'PDM4 Phase',0
  Capabilities: cvolume cvolume-joined
  Capture channels: Mono
  Limits: Capture 0 - 63
  Mono: Capture 0 [0%]
Simple mixer control 'Record Decimation Filter',0
  Capabilities: enum
  Items: 'Linear Phase' 'Low Latency' 'Ultra-low Latency'
  Item0: 'Linear Phase'
Connection to 192.168.2.40 closed by remote host.
user@H3 ~ $ AAAAAAAAAA

0 Niranjan Holalu Yogendra 13 days ago in reply to De Bug

TI__Intellectual 770 points

Thanks for the regdump. What is the final requirement which we are looking for here ? Are you looking for 4 separate single ended outputs or need the same output as in OUT1P and OUT1M in OUT2P and OUT2M ?

0 De Bug 12 days ago in reply to Niranjan Holalu Yogendra

Intellectual 290 points

This is in I2S mode connect to and DAI/I2S MPU

AFAIK. 4 single ended independent output signal is only possible in PDM mode ?

The requirement is that the user can chose between

1. OUT1 as Left and OUT2 as Right differential line out level

2. OUT1 as left and OUT2 as right as single ended (OUTP or OUTM) line level

3. OUT1 and OUT2 single ended stereo line out line level (as I understand OUT1 & 2 will carry the audio)

4. OUT1 and OUT2 stereo single ended headphone out (as I understand OUT1 & 2 will carry the same audio) [This topic]

5. OUT2 as line-out stereo and OUT1 headphone stereo ( (as I understand OUT1 & 2 will carry the same audio)

0 De Bug 11 days ago in reply to De Bug

Intellectual 290 points

# sh cfg_headphone_stereo_single-ended.sh
numid=57,iface=MIXER,name='ASI_RX_CH1_EN Switch'
  ; type=BOOLEAN,access=rw------,values=1
  : values=on
numid=55,iface=MIXER,name='OUT1x Config'
  ; type=ENUMERATED,access=rw------,values=1,items=7
  ; Item #0 'Differential'
  ; Item #1 'Stereo Single-ended'
  ; Item #2 'Mono Single-ended at OUTxP only'
  ; Item #3 'Mono Single-ended at OUTxM only'
  ; Item #4 'Pseudo differential with OUTxM as VCOM'
  ; Item #5 'Pseudo differential with OUTxM as external sensing'
  ; Item #6 'Pseudo differential with OUTxP as VCOM'
  : values=1
numid=56,iface=MIXER,name='OUT1x Driver'
  ; type=ENUMERATED,access=rw------,values=1,items=4
  ; Item #0 'Line-out'
  ; Item #1 'Headphone'
  ; Item #2 '4 ohm'
  ; Item #3 'FD Receiver/Debug'
  : values=1
numid=54,iface=MIXER,name='OUT1x Source'
  ; type=ENUMERATED,access=rw------,values=1,items=6
  ; Item #0 'Disabled'
  ; Item #1 'DAC Input'
  ; Item #2 'Analog Bypass'
  ; Item #3 'DAC + Analog Bypass Mix'
  ; Item #4 'DAC -> OUTxP, INxP -> OUTxM'
  ; Item #5 'INxM -> OUTxP, DAC -> OUTxM'
  : values=1
numid=61,iface=MIXER,name='ASI_RX_CH2_EN Switch'
  ; type=BOOLEAN,access=rw------,values=1
  : values=on
numid=59,iface=MIXER,name='OUT2x Config'
  ; type=ENUMERATED,access=rw------,values=1,items=6
  ; Item #0 'Differential'
  ; Item #1 'Stereo Single-ended'
  ; Item #2 'Mono Single-ended at OUTxP only'
  ; Item #3 'Mono Single-ended at OUTxM only'
  ; Item #4 'Pseudo differential with OUTxM as VCOM'
  ; Item #5 'Pseudo differential with OUTxP as VCOM'
  : values=1
numid=60,iface=MIXER,name='OUT2x Driver'
  ; type=ENUMERATED,access=rw------,values=1,items=4
  ; Item #0 'Line-out'
  ; Item #1 'Headphone'
  ; Item #2 '4 ohm'
  ; Item #3 'FD Receiver/Debug'
  : values=1
numid=58,iface=MIXER,name='OUT2x Source'
  ; type=ENUMERATED,access=rw------,values=1,items=6
  ; Item #0 'Disabled'
  ; Item #1 'DAC Input'
  ; Item #2 'Analog Bypass'
  ; Item #3 'DAC + Analog Bypass Mix'
  ; Item #4 'DAC -> OUTxP, INxP -> OUTxM'
  ; Item #5 'INxM -> OUTxP, DAC -> OUTxM'
  : values=1
numid=7,iface=MIXER,name='DAC1 CHA Digital Playback Volume'
  ; type=INTEGER,access=rw---R--,values=1,min=0,max=255,step=0
  : values=100
  | dBscale-min=-100.00dB,step=0.50dB,mute=0
numid=8,iface=MIXER,name='DAC1 CHB Digital Playback Volume'
  ; type=INTEGER,access=rw---R--,values=1,min=0,max=255,step=0
  : values=100
  | dBscale-min=-100.00dB,step=0.50dB,mute=0

This is the code, is there anything incorrect about this ? Could it be that when there is no actual headphone attached the output is blocked ?

0 De Bug 11 days ago in reply to De Bug

Intellectual 290 points

# sh cfg_headphone_stereo_single-ended.sh
numid=57,iface=MIXER,name='ASI_RX_CH1_EN Switch'
  ; type=BOOLEAN,access=rw------,values=1
  : values=on
numid=55,iface=MIXER,name='OUT1x Config'
  ; type=ENUMERATED,access=rw------,values=1,items=7
  ; Item #0 'Differential'
  ; Item #1 'Stereo Single-ended'
  ; Item #2 'Mono Single-ended at OUTxP only'
  ; Item #3 'Mono Single-ended at OUTxM only'
  ; Item #4 'Pseudo differential with OUTxM as VCOM'
  ; Item #5 'Pseudo differential with OUTxM as external sensing'
  ; Item #6 'Pseudo differential with OUTxP as VCOM'
  : values=1
numid=56,iface=MIXER,name='OUT1x Driver'
  ; type=ENUMERATED,access=rw------,values=1,items=4
  ; Item #0 'Line-out'
  ; Item #1 'Headphone'
  ; Item #2 '4 ohm'
  ; Item #3 'FD Receiver/Debug'
  : values=1
numid=54,iface=MIXER,name='OUT1x Source'
  ; type=ENUMERATED,access=rw------,values=1,items=6
  ; Item #0 'Disabled'
  ; Item #1 'DAC Input'
  ; Item #2 'Analog Bypass'
  ; Item #3 'DAC + Analog Bypass Mix'
  ; Item #4 'DAC -> OUTxP, INxP -> OUTxM'
  ; Item #5 'INxM -> OUTxP, DAC -> OUTxM'
  : values=1
numid=61,iface=MIXER,name='ASI_RX_CH2_EN Switch'
  ; type=BOOLEAN,access=rw------,values=1
  : values=on
numid=59,iface=MIXER,name='OUT2x Config'
  ; type=ENUMERATED,access=rw------,values=1,items=6
  ; Item #0 'Differential'
  ; Item #1 'Stereo Single-ended'
  ; Item #2 'Mono Single-ended at OUTxP only'
  ; Item #3 'Mono Single-ended at OUTxM only'
  ; Item #4 'Pseudo differential with OUTxM as VCOM'
  ; Item #5 'Pseudo differential with OUTxP as VCOM'
  : values=1
numid=60,iface=MIXER,name='OUT2x Driver'
  ; type=ENUMERATED,access=rw------,values=1,items=4
  ; Item #0 'Line-out'
  ; Item #1 'Headphone'
  ; Item #2 '4 ohm'
  ; Item #3 'FD Receiver/Debug'
  : values=1
numid=58,iface=MIXER,name='OUT2x Source'
  ; type=ENUMERATED,access=rw------,values=1,items=6
  ; Item #0 'Disabled'
  ; Item #1 'DAC Input'
  ; Item #2 'Analog Bypass'
  ; Item #3 'DAC + Analog Bypass Mix'
  ; Item #4 'DAC -> OUTxP, INxP -> OUTxM'
  ; Item #5 'INxM -> OUTxP, DAC -> OUTxM'
  : values=1
numid=7,iface=MIXER,name='DAC1 CHA Digital Playback Volume'
  ; type=INTEGER,access=rw---R--,values=1,min=0,max=255,step=0
  : values=100
  | dBscale-min=-100.00dB,step=0.50dB,mute=0
numid=8,iface=MIXER,name='DAC1 CHB Digital Playback Volume'
  ; type=INTEGER,access=rw---R--,values=1,min=0,max=255,step=0
  : values=100
  | dBscale-min=-100.00dB,step=0.50dB,mute=0

I found the reason, The speaker scripts sets the volume at 100, then there is noise of around 140mVp-p. so changing back to line out, there still was no signal becaus that script did not set the volume.

For the headphone, at 200 there is a clear analog sine wave output of 1.8Vp-p .At 255 the sine wave playback becomes a square wave at 1.72Vp-p.

Is that right ?. The outputs only have a series capacitor. no resistors or anything else.

0 Niranjan Holalu Yogendra 11 days ago in reply to De Bug

TI__Intellectual 770 points

I discussed internally, we are not sure what you're expecting for 3 and 4. Are we expecting OUT1P, OUT1M and OUT2P OUT2M to be same copy for your case ?

Could you please try the following patches see if your requirement is addressed ?

0001-Add-mixer-controls-for-DAC-channels-3-and-4.patch 0002-main-asi-mixer-ch3-ch4-from-ch1-ch2.patch

0 De Bug 11 days ago in reply to Niranjan Holalu Yogendra

Intellectual 290 points

I2S mode only carries two audio streams (if I am not wrong. ) , thus OUT1P and OUT2P (left audio) would be the same as well as OUT1M and OUT2M (right channel audio). Is that assumption incorrect ? . P.S: I am not able to test this right now,because the board has been sent to the platform provider today for the TAC5212 glitch failure analysis issue (on another thread). I will test this once the board returns.

0 Niranjan Holalu Yogendra 11 days ago in reply to De Bug

TI__Intellectual 770 points

Currently what goes to OUT2P/M seems to be controlled via playback mixer. More information is here - https://www.ti.com/lit/an/slaaer9/slaaer9.pdf - section "3.1 Main ASI Mixer". 2nd patch is based on the same. Please try and let us know.

Audio

Audio forum

TAC5212: Audio output problem in single-ended mode
