Problem with TPA3131D2

Dang heng

Other Parts Discussed in Thread: TPA3131D2

hi there,

I have a customer who is evaluating the TPA3131D2

below is their problem:

We were evaluating
speaker amp TPA3131D2 and notice output waveform distortion at Vin = 6V (get
worse with lower Vin).

I've attached waveform with Vin=7.4V as well (sine wave looks OK) since
datasheet always specs test condition for Vin to be 7.4V. Any
explanation?

BTW, PLIMIT was disabled (set to GVDD).

The even reduce the signal level @ 1Khz but signal is still distored.

Below is when PVDD=7.4V

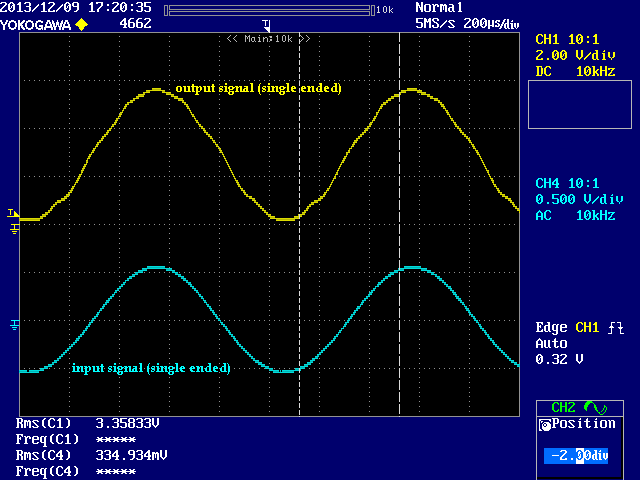

Below is when PVDD=6V

Thank you in advance

Adam

over 12 years ago

0 Don Dapkus over 12 years ago

TI__Guru**** 189401 points

Hi, Adam,

This amp is intended to be used in BTL model ONLY.

Please ask them to re-measure in BTL mode, and I think they will find it is ok.

-d2

0 Dang heng over 12 years ago in reply to Don Dapkus

Intellectual 880 points

Hi D2,

The engineer are already using it in BTL mode.

Adam

0 Don Dapkus over 12 years ago in reply to Dang heng

TI__Guru**** 189401 points

Hi, Adam,

The oscilloscope plot says that it was measured single-ended. Please ask them to re-measure it using the Ch1-Ch2 setting of their scope to get a differential (or BTL) measurement, and I think the waveform will be good.

-d2
