PurePath GUI for TAS5548/5558

Hi, Panson,

I have asked my colleague to work with you on this issue.

-d2

Thanks, Don!

Hi Panson,

Can you please try the register writes listed in the datasheet for 192KHz native processing mode? It can be found on page 43 (5.4.1) of the datasheet.

reg,

Paul.

Hi Paul,

Okay, I will try that.

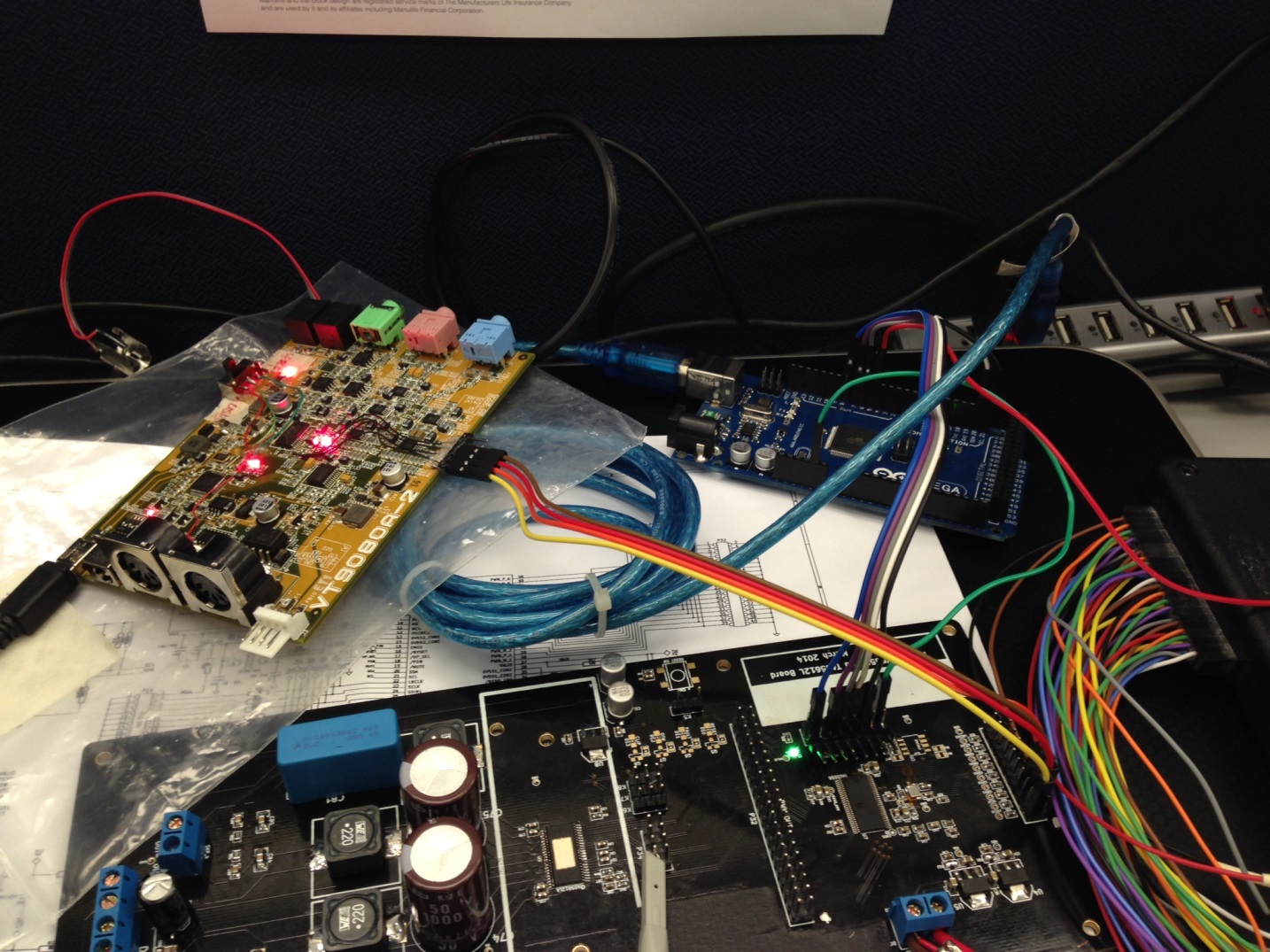

I use an Arduino board to control my TAS5548 board. Everything is basically operating. However, there is a little issue. If I send a reset pulse from one Arduino board's digital pin to the /RESET pin of TAS5548, TAS5548 is not operating properly. The reset pulse low time was 2 msec. I2C started 10 msec after the pulse set high. With the reset pulse, I2C communication was not correct. TAS5548 could not be configured properly. Do you have any idea?

Cheers,

Panson

Hi Paul,

I tried 500 msec. It failed.

Then 1000 msec (1 sec). It worked.

Thank!

Panson

Hi Panson,

Do you confirm the waveform timing on the oscilloscope?

reg,

Paul.

Hi Paul,

Yes, I did. The reset pulse was correct.

I found another problem with setting input mixers of TAS5548 (using TI 5548 EVM). If I use input mixer knobs of the GUI, I can change input mixer setting as desired. If I write the register directly from Direct I2C Access tab, I can not change the mixer. Logic analyzer shows desired I2C signal is sent to 5548. However, there is nothing changed. Same problem is encountered with my Arduino + 5548 platform.

I observed that whenever changing knobs of input mixer in the GUI, register 0x00 is read first, before writing 0x41, 0x42, ... Why? Is it necessary?

Thanks,

Panson

I can change output mixer with Direct I2C Access.

The I2C issue with my Arduino code was due to the original buffer size (32 bytes) defined in Wire library. I changed it to 64 bytes. Everything then works just fine.

Nice job finding out the root cause :)

reg,

Paul.

Hey Panson Poon !

I just brough TAS5548EVM and have to interface it with Purepath Control Console, but i didn't find TAS5548 as Target, or i may missing some basics.

please assist how to interface it with Purepath GUI, or i need ControlConsole
my board is TAS5548EVM and using
setup_PurePath_Studio_Portable_Audio_MiniDSP_v5.95_build1_rev28655
setup_PurePath_Studio_Home_Audio_MiniDSP_v5.95_build1_rev20094

from the TI.com

Regards:
Sonu Verma

Hi, Sonu,

The SW for the TAS5548/58 is the PurePath™ Console GUI not the PurePath Stadio GUI. You can download if at

http://cc.ext.ti.com/

reg,

Paul Chen

Audio Applications Engineer

Dallas TX

Hey Paul !

I got it

thanks :)
