TLV320AIC3101 GAIN SETTING ?

choi gyu-hae

Other Parts Discussed in Thread: TLV320AIC3101

TLV320AIC3101

INPUT 100Hz UTPUT 100HZ

If I raise the gain of the input, the output waveform is distorted.

Especially from less than 600HZ

Output terminal C: 100UF R: 120 C: 0.1UF

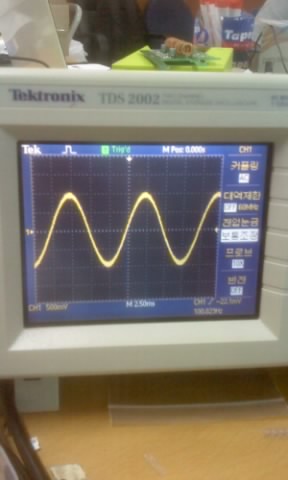

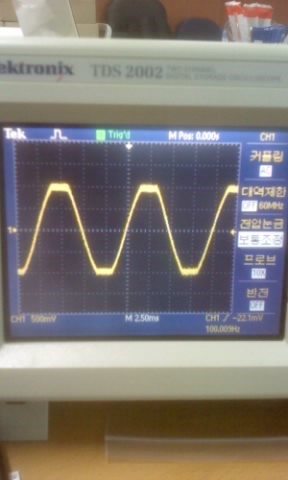

The middle input, the output valueThe max input, the output value

over 11 years ago

0 Don Dapkus over 11 years ago

TI__Guru**** 189401 points

Hi, Choi,

We have a forum dedicated to Audio Covnverters, so I am going to move your post there.

-d2

0 Don Dapkus over 11 years ago in reply to Don Dapkus

TI__Guru**** 189401 points

Hi, Choi,

I can't make it out from your pictures, what is the voltage/div setting on your scope?

It looks like you are clipping the signal. What is the power supply voltage?

-d2

0 choi gyu-hae over 11 years ago in reply to Don Dapkus

Prodigy 100 points

1. scope vol/div : 500mV

2.This signal has been clipped.

3.voltage : 3.27v
