About TPA1517 ouput current

Nat Wong

Genius 3070 points

Other Parts Discussed in Thread: TPA1517

Dear Sirs

I use TPA1517 for my new design.

Vcc=14.5V

I want to drive 4 ohm, 5 Watts speaker.

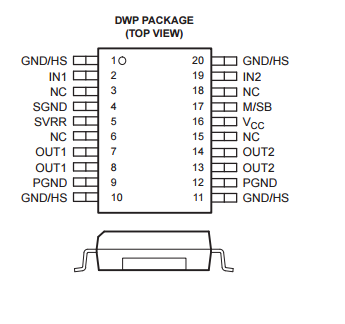

What is the Icc Max value ( for pin16 )?

Could you provide me equation for current and VCC 4 ohm, 5 Watts speaker?

TKS

BRS

Nat

over 9 years ago

0 Ivan Salazar over 9 years ago

TI__Guru** 114635 points

Hi Nat,

Unfortunately there is not a formula available to calculate current consumption but according to Figure 1 from datasheet you should expect Icc to be around 50mA. The max value for Icc (90mA) can be found in Electrical Characteristics table at the bottom of page 3, this table was obtained with Vcc=14.5V.

Best regards,
-Ivan Salazar
Texas Instruments

0 Nat Wong over 9 years ago in reply to Ivan Salazar

Genius 3070 points

Dear Ivan
Thank you.
BRS
Nat

0 Nat Wong over 9 years ago in reply to Ivan Salazar

Genius 3070 points

Dear Ivamn

If output Max power = 5W
Input Max power (from Icc) = 14.5V x 90mA => 1.3 W ??
Please clarify it. Thank you!

BRS
Nat

0 Ivan Salazar over 9 years ago in reply to Nat Wong

TI__Guru** 114635 points

Hi Nat,

Your calculation seems good.
You can also take a look at TPA312xD2(these are SE output amps) if Class-D fits in your application.

Best regards,
-Ivan Salazar
Texas Instruments
