TLV320AIC3262: TLV320AIC3262 Mic Connection

Muhsin Ali

Part Number: TLV320AIC3262

Hi Guys,

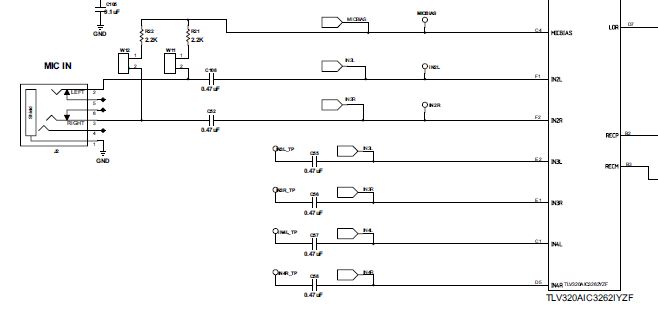

I am using TLV320AIC3262 in one of our project to integrate a mic to the codec, in the reference design it is shown a mic with left and right analog input (image1).

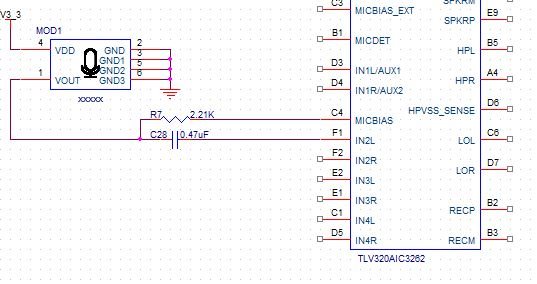

The mic i am using have only one analog output, how can i connect the analog output of mic to the codec? do i have to connect one analog output to both left and right input? (image2) or only have to connect to one of the input? (image3).

Regards,

Muhsin Ali

over 8 years ago

0 Luis Fernando Rodriguez S. over 8 years ago

TI__Guru* 84915 points

Hi, Muhsin,

It would depend of your application. If you require a mono application (only left channel used), the last connection (image 3) would be correct. In case you require to use left and right channel with one microphone connected, you would require a similar connection than the image 2, but only one MICBIAS resistor used. You would require to remove R7 or R8 in the image 2.

Please let me know if this is clear and if you have additional questions or comments.

Best regards,
Luis Fernando Rodríguez S.

0 Muhsin Ali over 8 years ago in reply to Luis Fernando Rodriguez S.

Intellectual 275 points

Hi Luis,

Thank you for your reply, i will proceed with the second approach then, if it need mono i will remove the cap to one of the channel. Is there any software or performance impact on this?

Regards,
Muhsin Ali

0 Luis Fernando Rodriguez S. over 8 years ago in reply to Muhsin Ali

TI__Guru* 84915 points

Hi, Muhsin,

There shouldn't be any impact if the cap is removed. The analog inputs are selected via registers configuration. So, the unused analog inputs don't have an impact since they are not selected.

Please let me know if you have additional questions or comments.

Best regards,
Luis Fernando Rodríguez S.

0 Muhsin Ali over 8 years ago in reply to Luis Fernando Rodriguez S.

Intellectual 275 points

Hi Luis,

Thank you for your reply, i dont have any further comments.

Regards,
Muhsin Ali
