TAS5766M: Question of RC Snubber Location of the TAS5766M

Wayne Chen (Audio AE)

Part Number: TAS5766M

Hi Sirs,

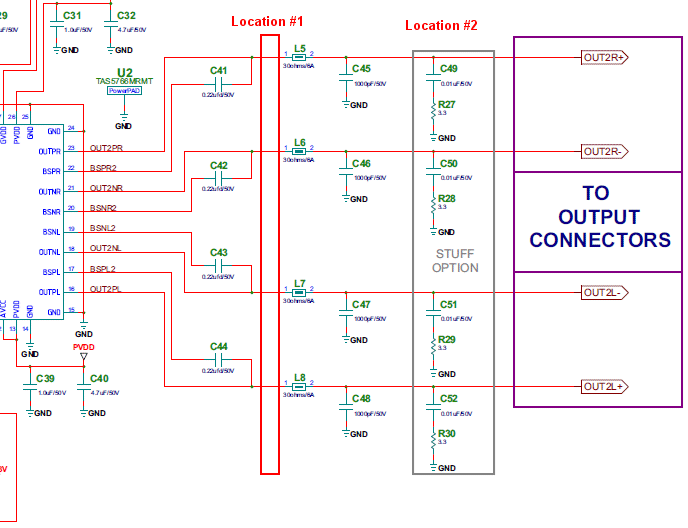

With ferrite bead design (no RC filter) with the TAS5766M, should we place the RC snubber before (location #1) or after (location #2) the ferrite beads? Which location is better? How can we adjust the RC snubber values for EMI suppression?

Thank you and Best regards,

Wayne Chen
09/08/2017

over 8 years ago

0 Jeff Kohnle over 8 years ago

TI__Expert 6985 points

Hello Wayne! Much oif this depends on what you are trying to accomplish, or what matters most in the design. Usually close to the output pins is best. Please reference the following, which also have some good reference documents embedded.
e2e.ti.com/.../805853 and e2e.ti.com/.../8182.RC-Snubber.pdf

Andy, Do you have any other suggestions?

Thanks, Jeff

0 Jeff Kohnle over 8 years ago in reply to Jeff Kohnle

TI__Expert 6985 points

There are also some other good references at: e2e.ti.com/.../214461.aspx

0 Wayne Chen (Audio AE) over 8 years ago in reply to Jeff Kohnle

TI__Genius 15950 points

Thank you for your advise, Jeff...Wayne Chen
