TAS5825M: Can the GPIO configure as Open Drain?

Kelvin Tee

Part Number: TAS5825M

My customer like to utilize the GPIO as Fault indication and for some reasons Open Drain is preferable. Could you confirm the GPIO can be configured as Open Drain and which register to configure it?

Rgds
Kelvin

over 6 years ago

0 Xiaolin Qin over 6 years ago

TI__Expert 6295 points

hi, Kelvin,

which TAS5825 GPIO pin you need open_Drain? what is purpose for this? it maybe share detailed application background.

Regards
Linda

0 Kelvin Tee over 6 years ago in reply to Xiaolin Qin

TI__Genius 10035 points

Hi Linda

More than one devices will be used to share the GPIO configured as Fault. It is ideal to use Open Drain port to connect to each other.

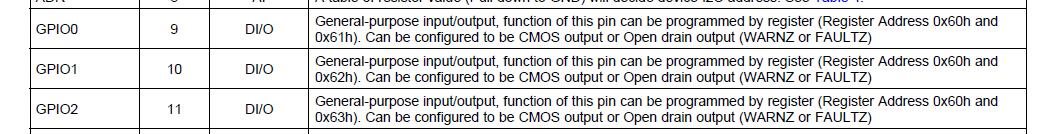

In the statement in the spec, it did mention about Open Drain option. Could you advise how to configure it?

Rgds

Kelvin

0 Xiaolin Qin over 6 years ago in reply to Kelvin Tee

TI__Expert 6295 points

GPIO can’t configured as Open Drain for Tas5825. need update datasheet.

Regards
Linda

0 Xiaolin Qin over 6 years ago in reply to Xiaolin Qin

TI__Expert 6295 points

sorry correct comments,

when it configured as FAULTZ/WARZ, it is open_drain. used as SDOUT, it is not open_Drain.

Regards
Linda

0 Matthew Miao over 6 years ago in reply to Kelvin Tee

TI__Expert 6720 points

HI Kelvin,

As Linda mentioned, when GPIO is set to FAULTz/WARNINGz, then the default setting is Open Drain. Other GPIO configuration is set to CMOS.

What's more, these default settings can't be manually changed.

Rdgs,
Matthew

0 Sonya Fulorya over 6 years ago in reply to Matthew Miao

Prodigy 10 points

Thanks dude. I was just looking for it.
