TLV320AIC3104: HDA host interface

Yusuke Mukuno

Expert 7395 points

Part Number: TLV320AIC3104

Hi,

Could you please give me your recommendation for the audio codec devices?

Requirements

- Host interface : I2S and HDA(High Definition Audio)

- Similar spec like as TLV320AIC3104

Also, Could you please give me the driver software(Linux or Windows10Iot) for those devices?

Thanks

Muk

over 5 years ago

0 Collin Wells over 5 years ago

TI__Guru 63965 points

Hello Mukuno-san,

I'm not sure we have a device with a "HDA" type PCM type interface. Most of our AIC CODEC devices support I2S, LJ,RJ, and TDM data formats but we'll need to review the HDA protocol to see if it's compatible.

Could you share a part # for the host processor that is producing the HDA interface signals so we can review them?

0 Yusuke Mukuno over 5 years ago in reply to Collin Wells

TI__Expert 7395 points

Hi Wells-san,

Customer plan to use the SMARC standard Intel CPU board as below,

I want to control the Audio Codec using the I2S line allocated to the SMARC card edge connector.

https://www.congatec.com/jp/products/smarc/conga-sa5.html

Could you please give me your advice?

Thanks

Muk

0 Collin Wells over 5 years ago in reply to Yusuke Mukuno

TI__Guru 63965 points

Hello Muk,

I reviewed the board user's guide and the processor supports two standard I2S interfaces which will work just fine with the TLV320AIC3104. The HDA interface is not compatible but they just need to make sure the set those pins and peripherals up for I2S.

https://www.congatec.com/fileadmin/user_upload/Documents/Manual/SA50.pdf

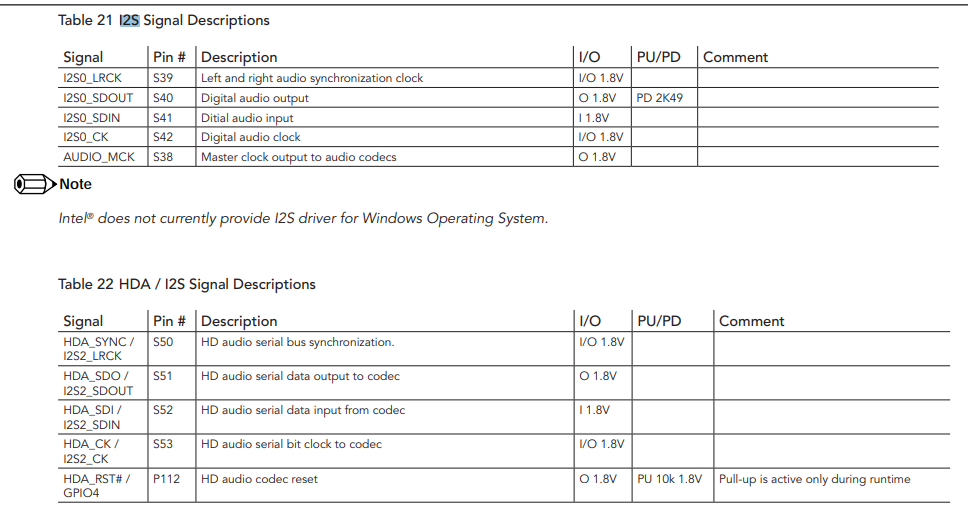

From Page 26:

0 Yusuke Mukuno over 5 years ago in reply to Collin Wells

TI__Expert 7395 points

Hi Collin-san

Could you please let me know the driver software for windows10 IoT for the following devices?

Can you provide the driver to customer?

Thanks

Muk

0 Collin Wells over 5 years ago in reply to Yusuke Mukuno

TI__Guru 63965 points

Hello Muk,

We do not have dedicated Win 10 IoT drivers for these devices available, but you may find some on some open-source communities. There are Linux drivers available in the community who's .H and .C files should provide a decent starting point for your customer's end-system integration.

https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/tree/sound/soc/codecs/

Some additional driver imformation can be found here:

https://e2e.ti.com/support/audio/f/6/t/773056?tisearch=e2e-sitesearch&keymatch=faq:true
