TAS2563: Can We Install Inductor in TS2563 Boost Bypass Mode?

Wayne Chen (Audio AE)

Part Number: TAS2563

Hi Sirs,

As title, based on the FAQ at

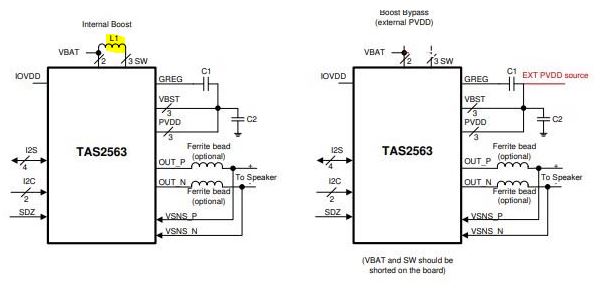

Can we install the inductor (marked below) in boost bypass mode (page 0x00, register 0x33 = 0xc4)?
Will it cause silicon damage or performance downgrade if we don's remove the inductor from the hardware?

Thank you and Best regards,

Wayne Chen
10/25/2020

over 4 years ago

0 Luis Fernando Rodriguez S. over 4 years ago

TI__Guru* 84915 points

Hi, Wayne,

Our team will take a look at this and will answer as soon as possible.

Best regards,

Luis Fernando Rodríguez S

0 Arthur Brown over 4 years ago

TI__Mastermind 20775 points

Hi Wayne,

What is the reason to keep this inductor? will this application be switching between internal and external boost?

From 11.2.2 TAS2563 Datasheet

"Its is very important that during external boost mode, VBAT and SW should be hard shorted on board."

Regards,

Arthur Brown

0 Arthur Brown over 4 years ago

TI__Mastermind 20775 points

Hi Wayne,

If the internal boost is disabled with register 0x33 then keeping the inductor in place should be OK.

Did you have any other questions regarding this topic?

Best Regards,

Arthur Brown

0 Wayne Chen (Audio AE) over 4 years ago in reply to Arthur Brown

TI__Genius 15950 points

Thanks for your advise, Arthur.

One more question, can we disable the boost converter in ROM mode in TAS2563 PPC3 GUI?

Thank you and Best regards,

Wayne Chen
10/30/2020

0 Arthur Brown over 4 years ago in reply to Wayne Chen (Audio AE)

TI__Mastermind 20775 points

Hi Wayne,

Sorry for the late reply. PPC3 GUI currently does not support fully disabling the boost. It is best to write directly to register 0x33.

Regards,

Arthur Brown

0 Wayne Chen (Audio AE) over 4 years ago in reply to Arthur Brown

TI__Genius 15950 points

Hello Arthur,

Thank you for your confirmation. I will write 0x33 = 0xc4 before activate the device to play mode.

Best regards,

Wayne Chen
11/02/2020
