ADS8588SEVM-PDK: PHI Controller Borad

Rice,Lee

Intellectual 340 points

Part Number: ADS8588SEVM-PDK
Other Parts Discussed in Thread: TPS2553

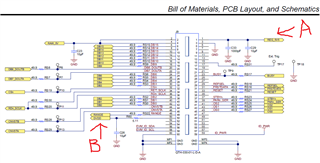

DC voltage at points A and B does not come out of PHI_controller Board.

Among the parts of the PHI_controller Board,

it is judged that the voltage source part at points A and B is defective.

I would like to know the exact location of the part that generates

the voltage source on the PHI controller board.

over 3 years ago

+1 Dale Li over 3 years ago

TI__Mastermind 45155 points

Hi Rice,

To see both REG_5V5 and DVDD power supplies, you have to run the GUI software of ADS8588SEVM-PDK (SLYC145A.zip) firstly. After the GUI successfully communicates with the EVM&PHI card, you will be able to see both supplies on the EVM board.

The REG_5V5 comes from the Pin 1 of U11 (TPS2553) and the DVDD comes from the Pin 1 of U8 (TPS22929) on the PHI card.

Best regards,

Dale
