ADC12DJ3200QML-SP: Thermal Information for CLGA and CCGA

Noriyuki Takahashi

Hi team

According to the datasheet, Thermal Information for CLGA and CCGA are same. Is this correct?

In my understanding, CCGA has solder columns while CLGA doesn't has solder columns. Is it OK that solder columns don't make any differences of thermal peformances?

Regards,

Noriyuki Takahashi

over 1 year ago

0 Rob Reeder over 1 year ago

TI__Mastermind 37960 points

Hi Noriyuki-san,

The datasheet thermal table has a foot-note that clearly indicates the differences between LGA and CGA.

Regards,

Rob

0 Noriyuki Takahashi over 1 year ago in reply to Rob Reeder

TI__Genius 10950 points

Rob,

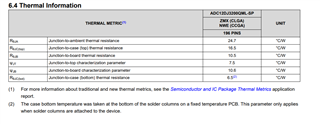

Do you mean the table below? I can see the foot-note about Junction-to-case (bottom) thermal resistance, but I couldn't find any descriptions about other parameters like theta_JA.

Regards,

Noriyuki Takahashi

0 Rob Reeder over 1 year ago in reply to Noriyuki Takahashi

TI__Mastermind 37960 points

Hi Noriyuki-san,

Yes, that is the table.

Theta JA is the first parameter on the table.

Regards,

Rob

0 Noriyuki Takahashi over 1 year ago in reply to Rob Reeder

TI__Genius 10950 points

Rob,

Sorry, but please let me ask again. Thermal Information for CLGA and CCGA are same according to the table exept for Junction-to-case (bottom) thermal resistance. Is this correct?

Customer jsut ask this just in case, because CCGA and CLGA are different packages.

Regards,

Noriyuki Takahashi

0 Rob Reeder over 1 year ago in reply to Noriyuki Takahashi

TI__Mastermind 37960 points

Noriyuki-san,

I think what is not highlighted well in the datasheet is that the customer should not buy a CLGA package device, unless they understand that they will need to put their own balls or columns on it.

See your picture above, note 2.

Thanks,

Rob

0 Noriyuki Takahashi over 1 year ago in reply to Rob Reeder

TI__Genius 10950 points

Rob,

Customer's original quesiton is to confirm whether the thermal information for CLGA and CCGA below is correct.

I understand this information is correct.

Regards,

Noriyuki Takahashi

+1 Rob Reeder over 1 year ago in reply to Noriyuki Takahashi

TI__Mastermind 37960 points

Hi Noriyuki-san,

Yes, this information is correct.

Regards,

Rob
