ADS1298ECGFE-PDK: ADS1298ECGFE-PDK GUI

Nivethitha D

Part Number: ADS1298ECGFE-PDK
Other Parts Discussed in Thread: ADS1294R, ADS1298R

Hi,

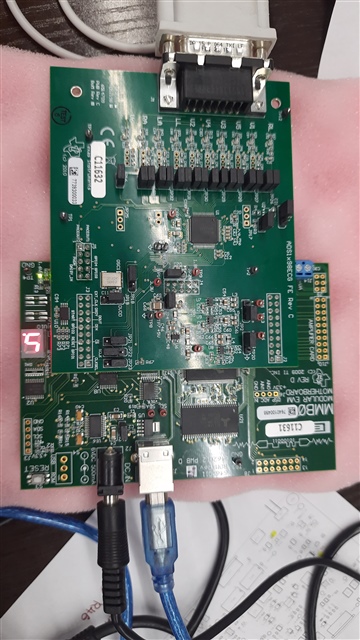

The jumpers in ADS1298ECGFE-PDK are set to default position as mentioned in manual and the Connector J1 is connected to ECG simulator (5 -lead).

Opened GUI, went to Analysis Tab -> ECG Display. But nothing is displayed in graph.

Tried enabling and disabling all filters. Read the data by both acquire and continuous method.

Why is it so? Do we need to make any other change

over 1 year ago

0 Nivethitha D over 1 year ago

Intellectual 370 points

Please find the image

0 Ryan Andrews over 1 year ago in reply to Nivethitha D

TI__Guru 66256 points

Hello Nivethitha,

Thank you for your post. Have you tried a single data set capture under the Time Domain tab? If so, can you share the results?

Please also share an image of the front panel after the EVM powers up and connects to the GUI.

Regards,

Ryan

0 Nivethitha D over 1 year ago in reply to Ryan Andrews

Intellectual 370 points

Hello Ryan!!

Please find the below image of front panel,

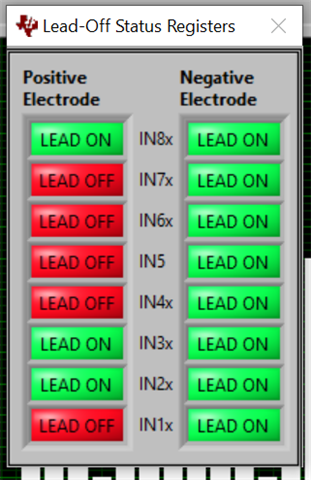

single data set capture under the Time Domain tab - where to find it ??

What else might be the reasons? Why there is no change in signals ?

0 Ryan Andrews over 1 year ago in reply to Nivethitha D

TI__Guru 66256 points

Hello Nivethitha,

The GUI data capture appears to be working fine. The Time Domain representation of the data is found under the Scope tab.

Regards,

Ryan

0 Nivethitha D over 1 year ago in reply to Ryan Andrews

Intellectual 370 points

Hi ryan,

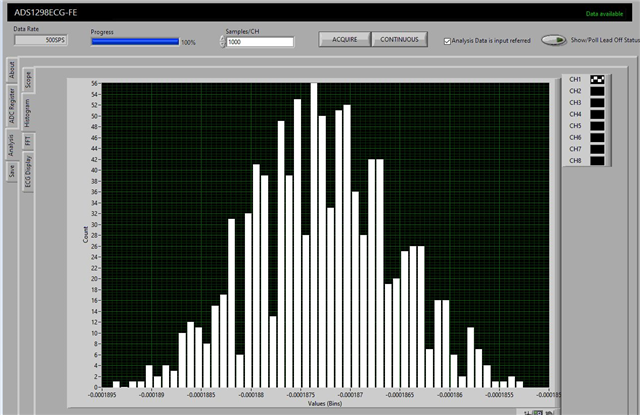

This is the input signal we are giving,

Please find the output signal no difference why so? Do I have to make any changes in hardware or software?

0 Ryan Andrews over 1 year ago in reply to Nivethitha D

TI__Guru 66256 points

Hi Nivethitha,

You'll need to verify how the simulator electrode inputs are mapped to to the DB15 connector pins. Once this is confirmed, then you can select the appropriate ADC channel to measure that input. The net names on the EVM schematic are arbitrary as the signal chain is identical for all ECG electrode inputs.

It looks like you are measuring Channel 1. By default, Channel 1 is configured to measure V6 - WCT. If your simulator is outputting a Lead I ECG (LA - RA), then I suggest you measure Channel 2 and confirm that the LA and RA electrodes from the simulator are connected to DB15 (J1) pins 10 and 9, respectively.

Regards,

Ryan

0 Nivethitha D over 1 year ago in reply to Ryan Andrews

Intellectual 370 points

Hi Ryan,

0 Nivethitha D over 1 year ago in reply to Ryan Andrews

Intellectual 370 points

Hi Ryan,

Tried reading from all channels, but getting the same output.

0 Ryan Andrews over 1 year ago in reply to Nivethitha D

TI__Guru 66256 points

Hi Nivethitha - can you share the complete register settings?

Also, can you try an alternate signal source? You can configure the inputs to measure an internal square wave test signal, or connect a function generator with a 100 mVp sine wave.

Regards,

Ryan

0 Nivethitha D over 1 year ago in reply to Ryan Andrews

Intellectual 370 points

Hi Ryan,

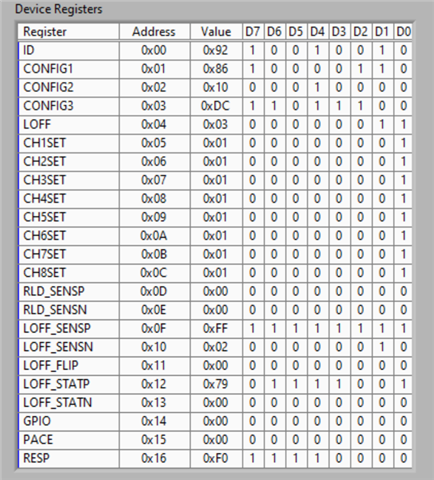

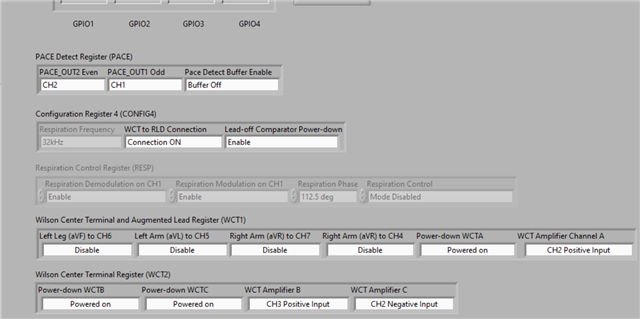

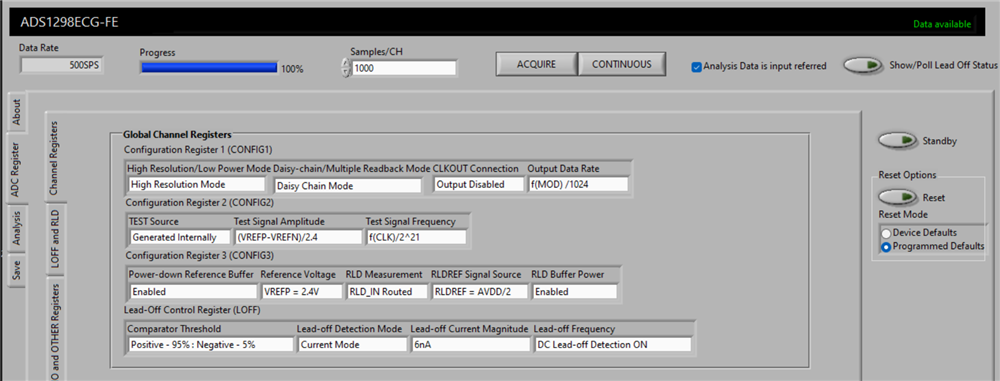

The register settings are programmed defaults in the GUI. Please find the below,

Also, we have tried two different ECG waveform sources, yet no response. Also, will try to connect 100 mVp sine wave as suggested and get back to you.

Do we need to change any register settings?

+1 Ryan Andrews over 1 year ago in reply to Nivethitha D

TI__Guru 66256 points

Hello Nivethitha,

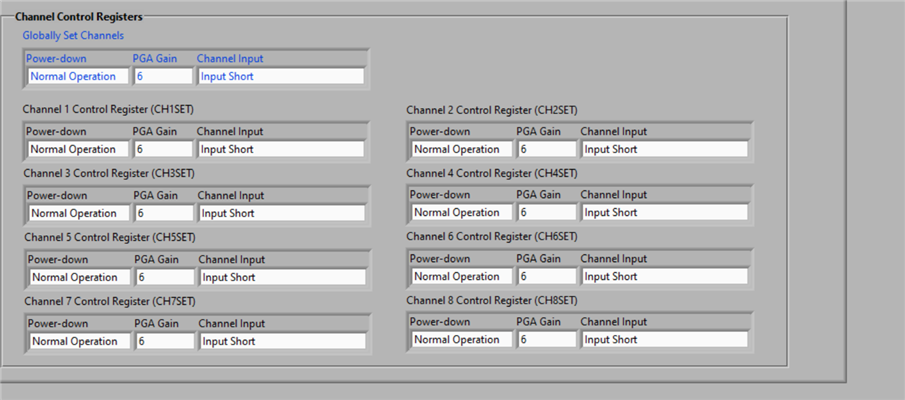

Please change the CHnSET bits [2:0] to 000b. Currently, you have configured all channels for internal input-short configuration. This means the inputs to the PGA are disconnected from the device pins and shorted internally to a mid-supply common-mode voltage. Differentially, all channels will measure close to 0V in this setting.

Regards,

Ryan

0 Nivethitha D over 1 year ago in reply to Ryan Andrews

Intellectual 370 points

Thanks ryan. It worked.

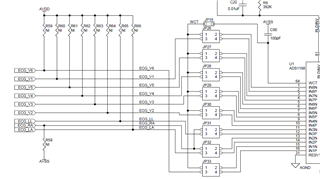

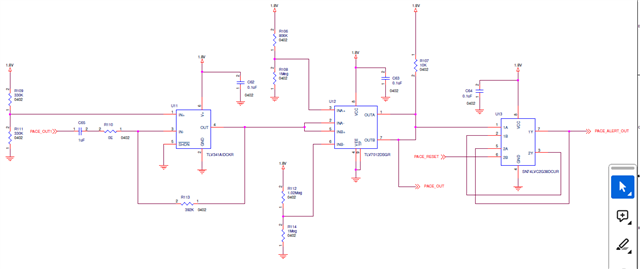

Please provide comments on the below schematic for 5 lead ECG as well as respiration measurement using ADS1294R.

Also for the pace detection circuit.

0 Nivethitha D over 1 year ago in reply to Ryan Andrews

Intellectual 370 points

Hi Ryan,

Please do provide comments for the below

0 Ryan Andrews over 1 year ago in reply to Nivethitha D

TI__Guru 66256 points

Hello Nivethitha,

The schematic connections look fine. One recommendation I have is to adjust the R||C between RLDOUT and RLDINV. Currently, the closed-loop bandwidth is 40.6 Hz. Actually - this should be increased such that 50/60Hz is included in the RLD bandwidth, which helps to improve CMRR at those frequencies. You can use 1MΩ || 1.5 nF (this was done on ADS1298R EVM).

Regards,

Ryan

0 Nivethitha D over 1 year ago in reply to Ryan Andrews

Intellectual 370 points

Thanks ryan!!

Any comments on pace detection cirucit? or respiratory part in AFE?

+1 Ryan Andrews over 1 year ago in reply to Nivethitha D

TI__Guru 66256 points

Hi Nivethitha,

I reviewed those circuits as well and the connections look correct based on our Hardware Pace reference design.

Regards,

Ryan

0 Nivethitha D over 1 year ago in reply to Ryan Andrews

Intellectual 370 points

Thanks Ryan!!!
