ADS52J90EVM: ADS52J90+TSW14J57

stone shih

Prodigy 20 points

Part Number: ADS52J90EVM
Other Parts Discussed in Thread: ADS52J90

Tool/software:

HI SIR,

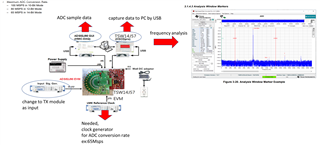

we want to use ADS52J90+TSW14J57 as below to test our customer TX module,

we will change input generator into TX module at J1~J32,

and we will use HMC-DAQ+HSCDpro to measure frequency domain for each element,

but we have some questions

1. according to topology as picture, we find that HMC-DAQ+HSCDpro is used for capturing data from TX module, but how can it work, and is there any demo video for us to view?

2.there is one clock generator in topology, and would you recommend the instrument for us?, ex: machine model?

3.Can the same computer be connected to 2 sets of EVM BDs? because we want to test 64 channel through 2 sets of EVM board at the same time.

please reply us, thanks

best regards

stone

1.a

7 months ago

0 Sachin H K 7 months ago

TI__Expert 7685 points

Hi,

Do you already have TSW14J57 ? In the EVM user guide I see that either you need to use TSW1400 (LVDS capture ) or TSW14J56 (JESD Capture).

EVM userguide answers your most of the question. Can you please reach us at ultrasound_rx-support@list.ti.com for further support .

0 stone shih 6 months ago

Prodigy 20 points

thank for your reply

Do you already have TSW14J57 ?

=>we havnt purchased it yet

In the EVM user guide I see that either you need to use TSW1400 (LVDS capture ) or TSW14J56 (JESD Capture).

EVM userguide answers your most of the question.

=>we will check it again

Can you please reach us at ultrasound_rx-support@list.ti.com for further support .

=>if we have other question, we will sent to the link
