DAC39RF12EVM: How to configure LMK04828 via GUI?

Kazuhiko Hirano

Part Number: DAC39RF12EVM
Other Parts Discussed in Thread: LMK04828, DAC39RF20EVM

Tool/software:

Hello,

My customer would like to evaluate DAC39RF12EVM, but they do not know how to set desired clocks and have some questions.

They evaluated DAC39RF20EVM before and they was able to configure LMK04828 via GUI (like Figure 2-6 in the EVM user’s guide). However, they can find how to configure LMK04828 via GUI (Figure 2-4 in the EVM user’s guide). Please let them know how they can configure LMK04828 on the EVM. They would like to generate 250M REFCLK and 7.8125MHz SYSREF from external 250MHz input.

Best regards,

K.Hirano

3 days ago

0 Kazuhiko Hirano 2 days ago

TI__Genius 15078 points

Hello,

My customer is a bit in a hurry to keep their development schedule and would like to start DAC39RF12EVM evaluation asap.
If TI could respond their questions quickly, it would be nice and appreciated.

Best regards,

K.Hirano

0 Geoff Roth 2 days ago in reply to Kazuhiko Hirano

TI__Expert 5520 points

Hirano,

You don't. It is automatically configured by how the GUI sets up the DAC.

Regards,

Geoff

0 Kazuhiko Hirano 2 days ago in reply to Geoff Roth

TI__Genius 15078 points

Geoff,

Thank you for your response. But your answer is too simple for me to understand it well.
If you could provide more details, it would be very appreciated.

Best regards,

K.Hirano

0 Geoff Roth 1 day ago in reply to Kazuhiko Hirano

TI__Expert 5520 points

Hirano,

They don't directly program the LMK. When the GUI configures the DAC, the LMK is configured to the correct mode for that particular mode of the DAC.

Regards,

Geoff

0 Kazuhiko Hirano 1 day ago in reply to Geoff Roth

TI__Genius 15078 points

Geoff,

My customer requirements are as follows.
- SYSREF: 7.8125MHz
- Reference clock: 250MHz
- Sampling rate: 8Gsps (Interpolation: 8)

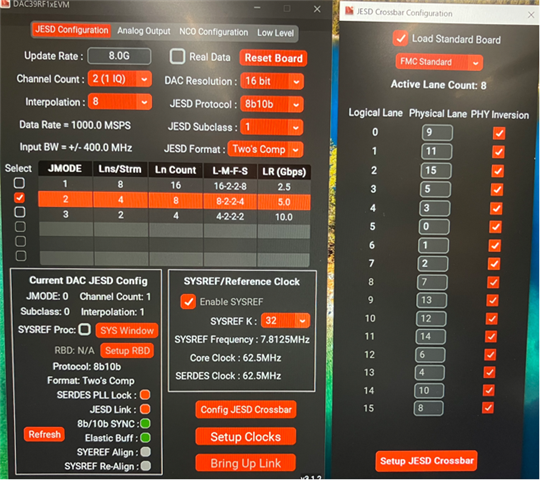

They set the GUI as follows, but they were not able to get the desired frequencies, and SYSREF was not generated since SYSREF_PD bit is 1. What are wrong in their GUI setting?
Please let them know the proper GUI settings to achieve their requirements.

Best regards,

K.Hirano
